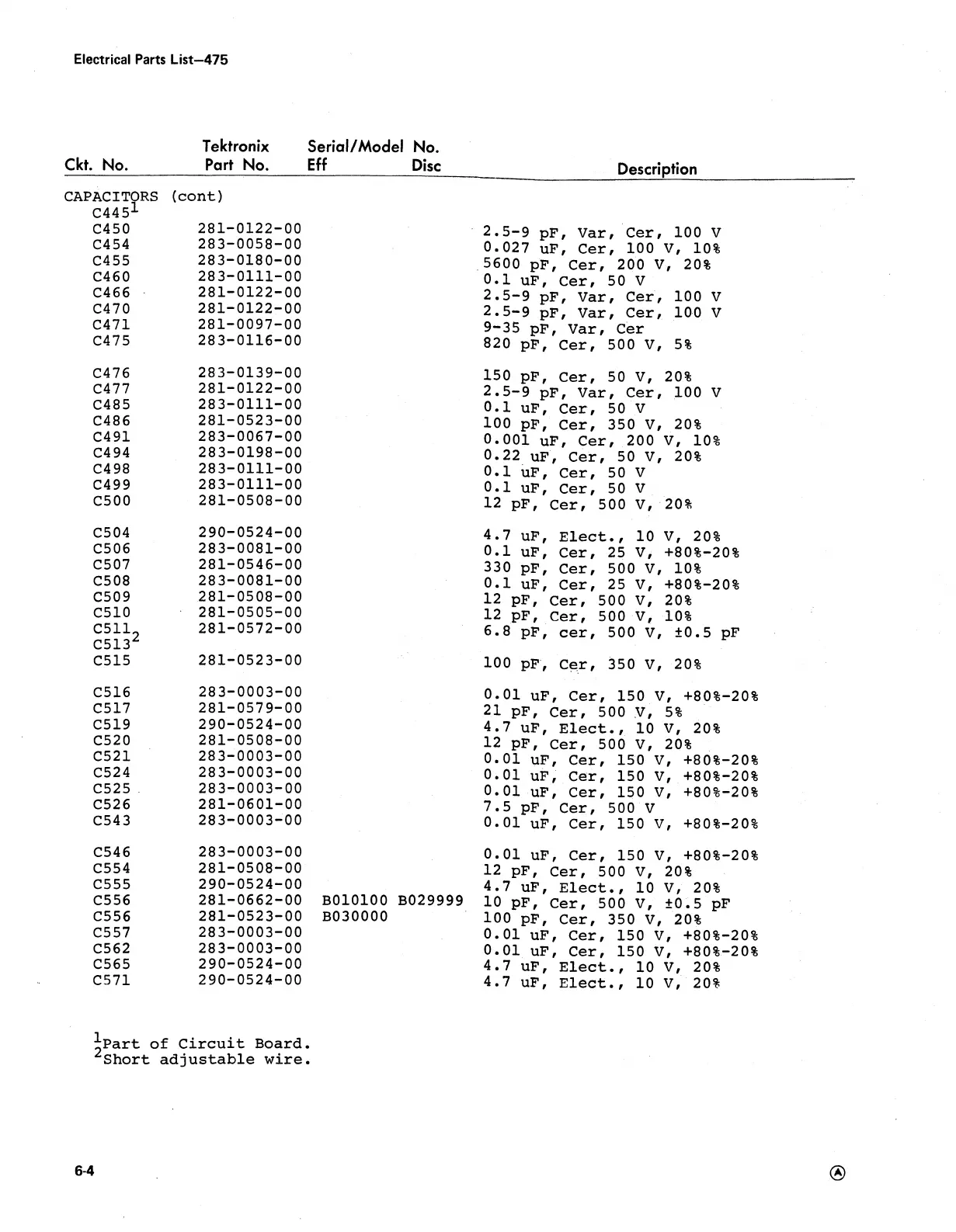

Electrical Parts List—475
Ckt. No.
Tektronix
Part No.
Serial/Model No.
Eff Disc
Description
(cont)
C44 5 x
C450
281-0122-00
2.5-9 pF, Var, Cer, 100 V
C454
283-0058-00
0.027 uF, Cer, 100 V, 10%
C455 283-0180-00
5600 pF, Cer, 200 V, 20%
C460
283-0111-00
0.1 uF, Cer, 50 V
C466
281-0122-00
2.5-9 pF, Var, Cer, 100 V
C470
281-0122-00
2.5-9 pF, Var, Cer, 100 V
C471
281-0097-00
9-35 pF, Var, Cer
C475 283-01 16-0 0
820 pF, Cer, 500 V, 5%
C476
283 -0139-00
150 pF, Cer, 50 V, 20%
C477 281-0 122- 00
2.5-9 pF, Var, Cer, 100 V
C485 283-0 111- 00
0.1 uF, Cer, 50 V
C486
281-05 23-00
100 pF, Cer, 350 V, 20%
C491
283-00 67-00
0.001 uF, Cer, 200 V, 10%
C494 283-0198-00
0.22 uF, Cer, 50 V, 20%
C498 283-011 1-00
0.1 uF, Cer, 50 V
C499
283-0111-00
0.1 uF, Cer, 50 V
C500 2 81-0508-00
12 pF, Cer, 500 V, 20%
C504
290-0524-00
4.7 uF, Elect., 10 V, 20%
C506
283-00 81-00
0.1 uF, Cer, 25 V, +80%-20%
C507
281-0546-00
330 pF, Cer, 500 V, 10%
C508 283-0081-00
0.1 uF, Cer, 25 V, +80%-20%
C509
281-0508-00
12 pF, cer, 500 V, 20%
C510 281- 0505-00
12 pF, Cer, 500 V, 10%
C 5 1 1 9 281-0572-00
6.8 pF, cer, 500 V, +0.5 pF
C 5 1 3 z
C515
281-0523-00
100 pF, cer, 350 V, 20%
C516
283 -0003-00
0.01 uF, Cer, 150 V, +80 %-20%
C517
281-0579-00
21 pF, Cer, 500 V, 5%
C519
290 -0524-00
4.7 uF, Elect., 10 V, 20%
C520 281-0508-00
12 pF, Cer, 500 V, 20%
C521
283 -0003-00
0.01 uF, Cer, 150 V, +80%-20%
C524
283 -0003-00
0.01 uF, Cer, 150 V, +80%-20%
C525 283- 0003-00
0.01 uF, Cer, 150 V, +80%-20%
C526
281-06 01-00
7.5 pF, Cer, 500 V
C543
283-0003-00
0.01 uF, Cer, 150 V, +80%-20%
C546
283-0003-00
0.01 uF, Cer, 150 V, +80%-20%
C554 281-0508-00
12 pF, Cer, 500 V, 20%
C555
290-0524-00
4.7 uF, Elect., 10 V, 20%
C556
281-0662-00
B010100 B029999
10 pF, Cer, 500 V, +0.5 pF
C556
281-0523-00
B030000
100 pF, Cer, 350 V, 20%
C557
283-0003-00
0.01 uF, Cer, 150 V, +80%-20%
C562
283 -0003-00
0.01 uF, Cer, 150 V, +80%-20%
C565
290-0524-00
4.7 uF, Elect., 10 V, 20%
C571
290 -0524-00
4.7 uF, Elect., 10 V, 20%
^Part of Circu i t Board.
^Short adju stable wire.
6-4
