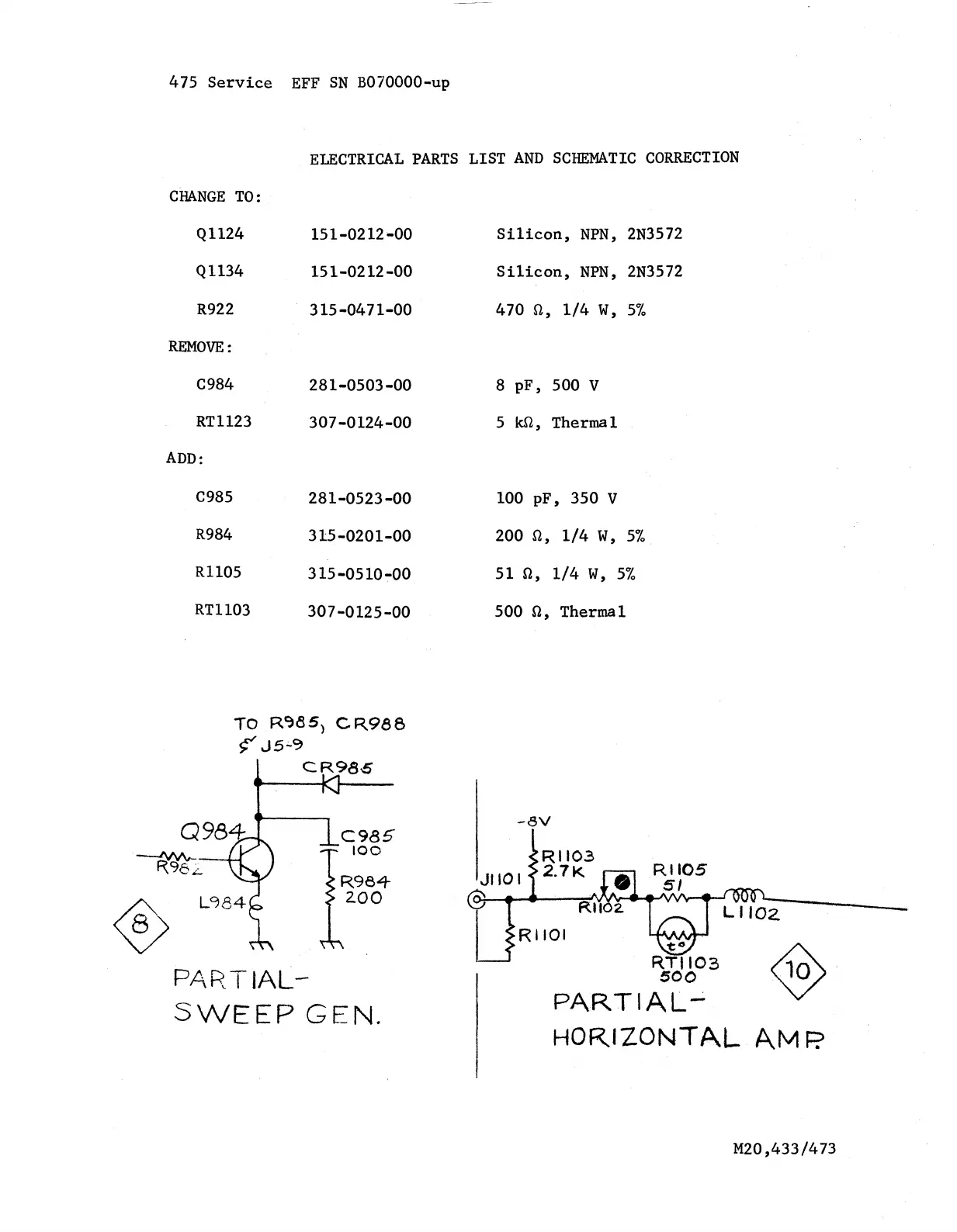

475 Service
EFF SN BO70000-up
ELECTRICAL PARTS
LIST AND SCHEMATIC CORRECTION
CHANGE TO:
Q1124
151-0212-00
Silicon, NPN, 2N3572
Q1134 151-0212-00
Silicon, NPN, 2N3572
R922
315-0471-00
470 ft, 1/4 W, 5%
REMOVE:
C984
281-0503-00
8 pF, 500 V
RT1123
307-0124-00
5 kft, Thermal
ADD:
C985
281-0523-00
100 pF, 350 V
R984
315-0201-00
200 ft, 1/4 W, 5%
R1105
315-0510-00
51 ft, 1/4 W, 5%
RT1103
307-0125-00
500 ft, Thermal
TO GR.988
5^ J 5-9
PARTIAL'
SW EEP GEN.
-<3V
J IIO I
:r iio 3
2.7 K
0 -
[ * 1
R 1 101
R II0 5
a m —• —
t i r
R TII03
500
L I 1 0 2
P A R T IA L-
HORIZONTAL AM F?
M20,433/473
