Page 2 of 2
475

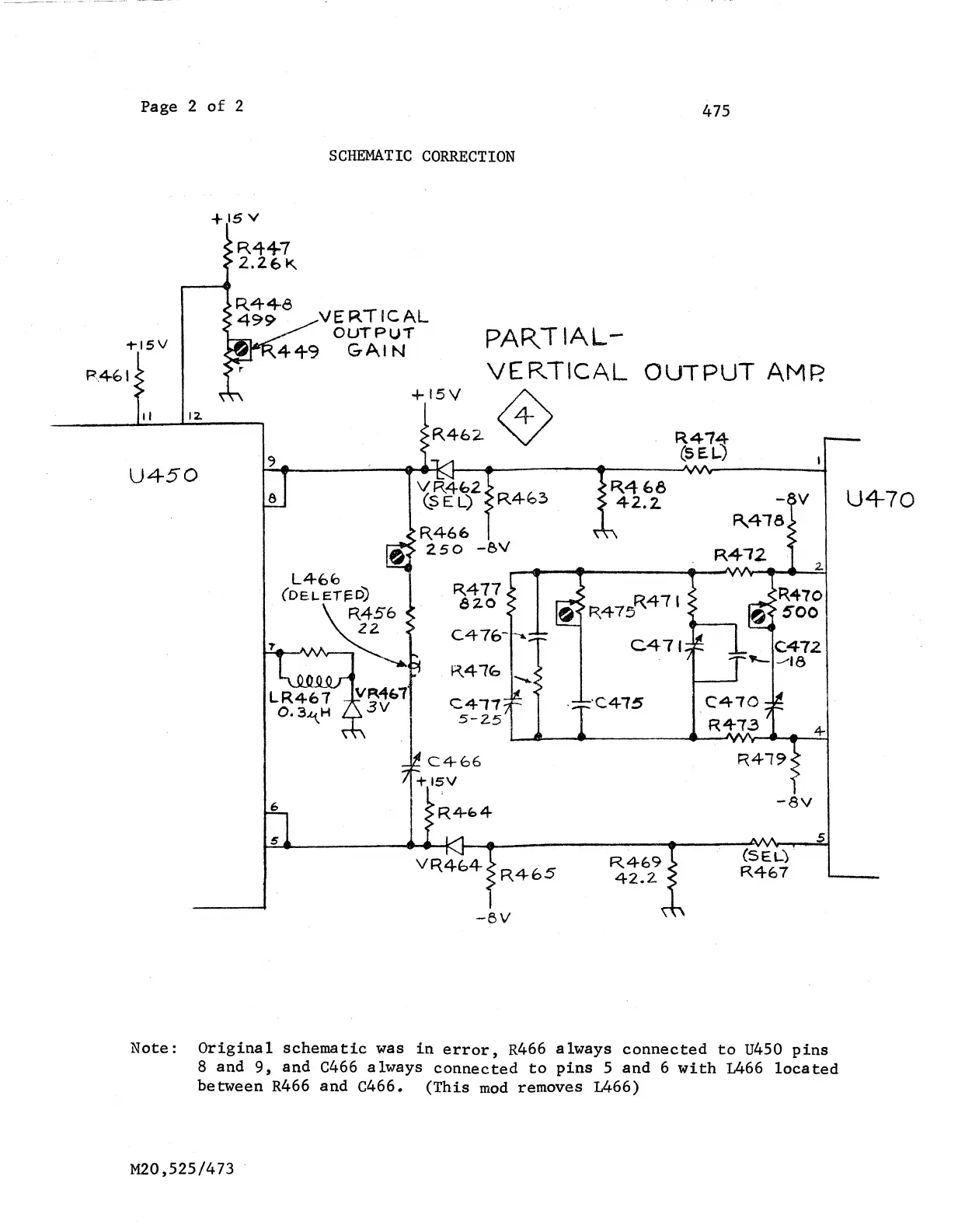

SCHEMATIC CORRECTION
Note: Original schematic was in error, R466 always connected to U450 pins
8 and 9, and C466 always connected to pins 5 and 6 with L466 located
between R466 and C466. (This mod removes L466)
M20,525/473
U4-70
