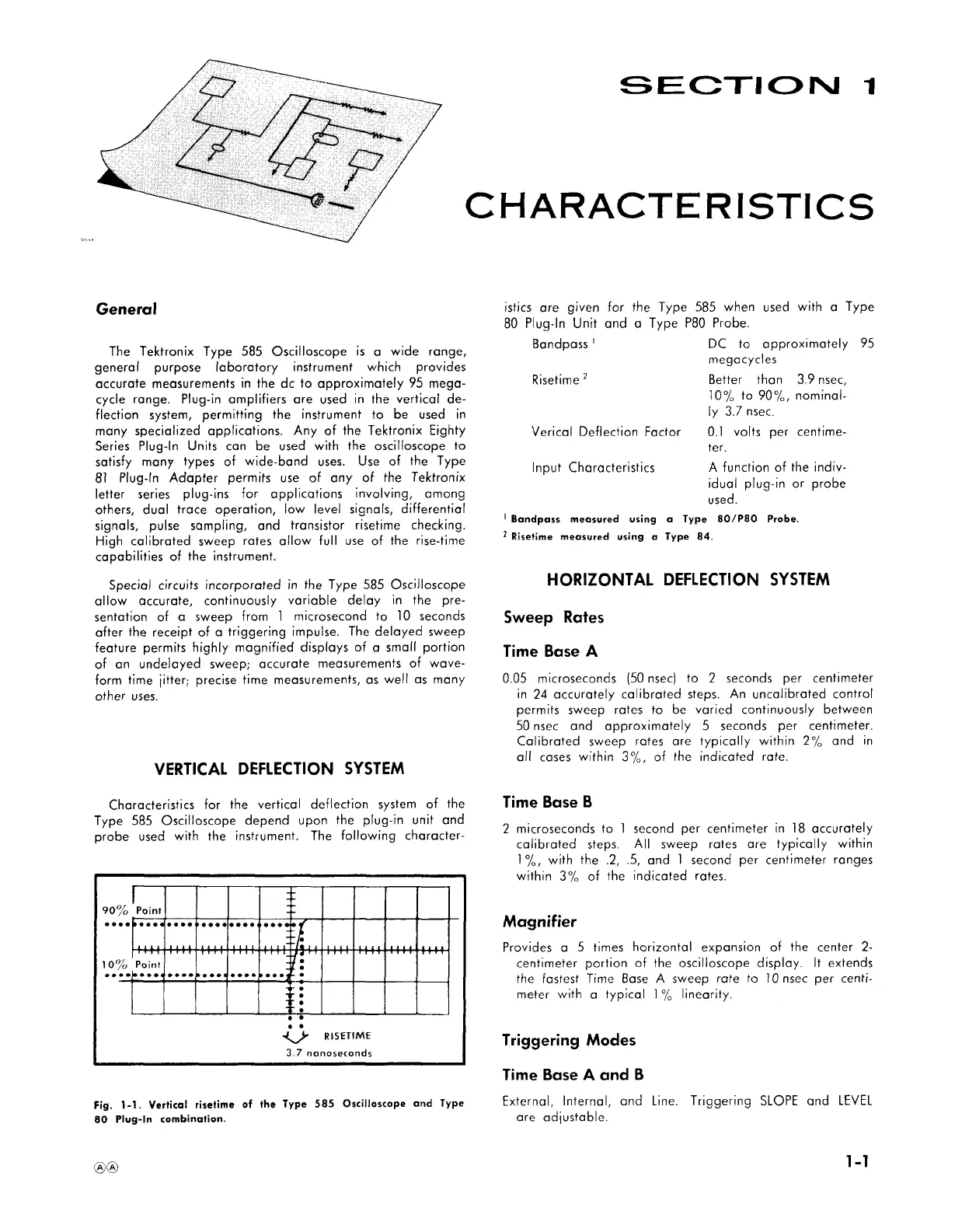

SECTION
1
CHARACTERISTICS
General
The
Tektronix
Type
585
Oscilloscope
is
a
wide
range,
general
purpose
laboratory
instrument
which
provides
accurate
measurements
in
the
d
c
to
approximately
95
mega
cycle
range.
Plug-in
amplifiers
are
used
in
the
vertical
de
flection
system,
permitting
the
instrument
to
be
used
in
many
specialized
applications.
Any
of
the
Tektronix
Eighty
Series
Plug-In
Units
can
be
used
with
the
oscilloscope
to
satisfy
many
types
of
wide-band
uses.
Use
of
the
Type
81
Plug-In
Adapter
permits
use
of
any
of
the
Tektronix
letter
series
plug-ins
for
applications
involving,
among
others,
dual
trace
operation,
low
level
signals,
differential
signals,
pulse
sampling,
and
transistor
risetime
checking.
High
calibrated
sweep
rates
allow
full
use
of
the
rise-time
capabilities
of
the
instrument.
Special
circuits
incorporated
in
the
Type
585
Oscilloscope
allow
accurate,
continuously
variable
delay
in
the
pre
sentation
of
a
sweep
from
1
microsecond
to
10
seconds
after
the
receipt
of
a
triggering
impulse.
The
delayed
sweep
feature
permits
highly
magnified
displays
of
a
small
portion
of
an
undelayed
sweep;
accurate
measurements
of
wave
form
time
jitter;
precise
time
measurements,
as
well
as
many
other
uses.
VERTICAL
DEFLECTION
SYSTEM
Characteristics
for
the
vertical
deflection
system
of
the
Type
585
Oscilloscope
depend
upon
the
plug-in
unit
and
probe
used
with
the
instrument.
The
following
character-
3.7
nanoseconds
Fig.
1-1.
Vertical
risetime
of
the
Type
585
Oscilloscope
and
Type
80
Plug-In
combination.
Bandpass
1
Risetime
2
Verical
Deflection
Factor
Input
Characteristics
DC
to
approximately
95
megacycles
Better
than
3.9
nsec,
10%
to
90%,
nominal
ly
3.7
nsec.
0.1
volts
per
centime
ter.
A
function
of
the
indiv
idual
plug-in
or
probe
used.
HORIZONTAL
DEFLECTION
SYSTEM
Sweep
Rates
Time
Base
A
0.05
microseconds
(50
nsec)
to
2
seconds
per
centimeter
in
24
accurately
calibrated
steps.
An
uncalibrated
control
permits
sweep
rates
to
be
varied
continuously
between
50
nsec
and
approximately
5
seconds
per
centimeter.
Calibrated
sweep
rates
are
typically
within
2%
and
in
all
cases
within
3%,
of
the
indicated
rate.
Time
Base
B
2
microseconds
to
1
second
per
centimeter
in
18
accurately
calibrated
steps.
All
sweep
rates
are
typically
within
1
%,
with
the
.2,
.5,
and
1
second
per
centimeter
ranges
within
3%
of
the
indicated
rates.
Magnifier
Provides
a
5
times
horizontal
expansion
of
the
center
2-
centimeter
portion
of
the
oscilloscope
display.
It
extends
the
fastest
Time
Base
A
sweep
rate
to
10
nsec
per
centi
meter
with
a
typical
1
%
linearity.
Triggering
Modes
Time
Base
A
and
B
External,
Internal,
and
Line.
Triggering
SLOPE
and
LEVEL
are
adjustable.
1-1
istics
are
given
for
the
Type
585
when
used
with
a
Type
80
Plu
g
-ln
Unit
and
a
Type
P80
Probe.
