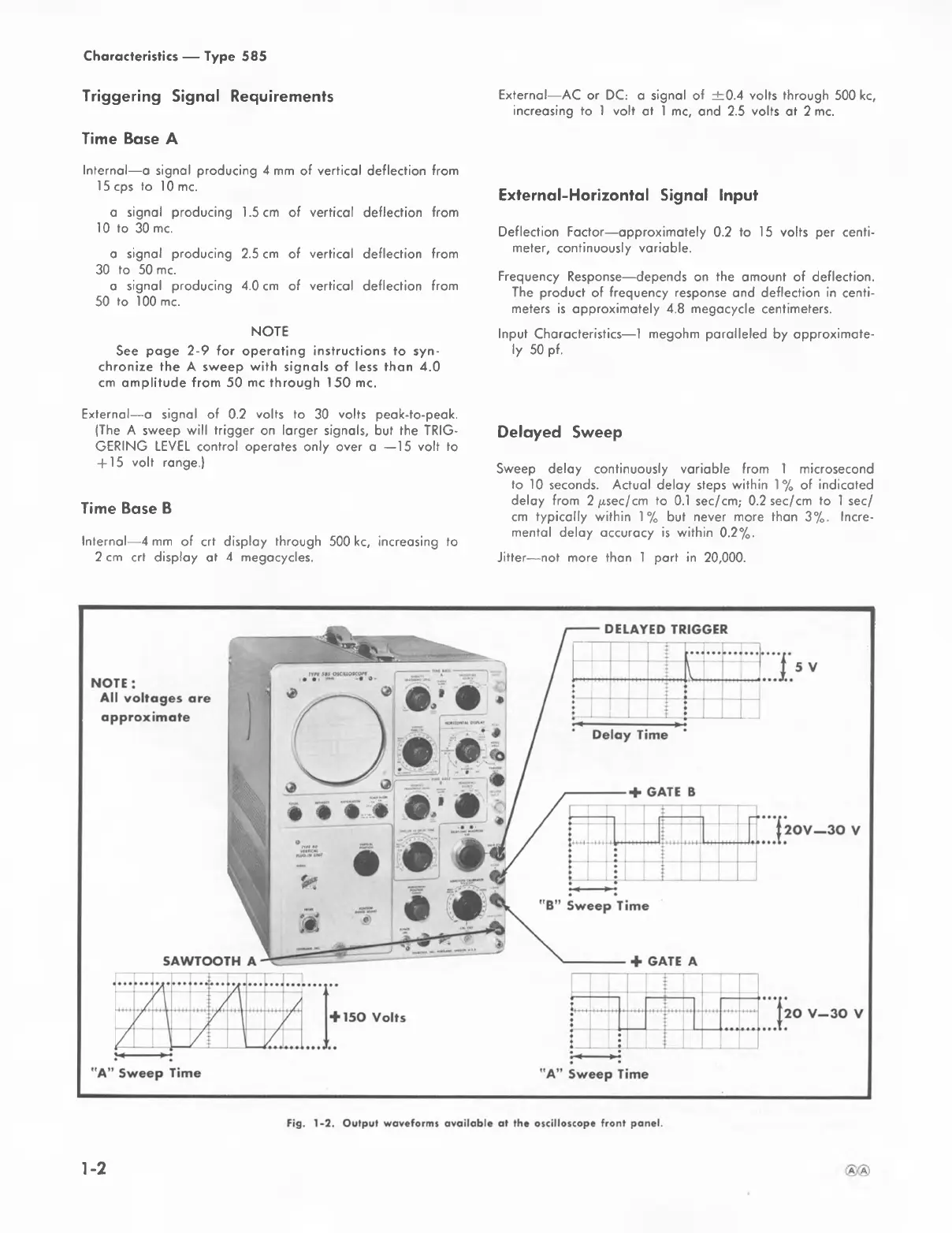

Characteristics
—
Type
585
Triggering
Signal
Requirements
Time
Base
A
Internal
—
a
signal
producing
4
mm
of
vertical
deflection
from
15
cps
to
10
m
c
.
a
signal
producing
1.5
cm
of
vertical
deflection
from
10
to
30
m
c
.
a
signal
producing
2.5
cm
of
vertical
deflection
from
30
to
50
m
c
.
a
signal
producing
4.0
cm
of
vertical
deflection
from
50
to
100
m
c
.
NOTE
See
page
2-9
for
operating
instructions
to
syn
chronize
the
A
sweep
with
signals
of
less
than
4.0
cm
amplitude
from
50
m
c
through
150
m
c
.
External
—
a
signal
of
0.2
volts
to
30
volts
peak-to-peak.
(The
A
sweep
will
trigger
on
larger
signals,
but
the
TRIG
GERING
LEVEL
control
operates
only
over
a
—
15
volt
to
+
15
volt
range.)
Time
Base
B
Internal
—
4
mm
of
c
rt
display
through
500
kc,
increasing
to
2
cm
ert
display
at
4
megacycles.
External
—
AC
or
DC:
a
signal
of
±0.4
volts
through
500
kc,
increasing
to
1
volt
at
1
m
c
,
and
2.5
volts
at
2
m
c
.
External-Horizontal
Signal
Input
Deflection
Factor
—
approximately
0.2
to
15
volts
per
centi
meter,
continuously
variable.
Frequency
Response
—
depends
on
the
amount
of
deflection.
The
product
of
frequency
response
and
deflection
in
centi
meters
is
approximately
4.8
megacycle
centimeters.
Input
Characteristics
—
1
megohm
paralleled
by
approximate
ly
50
pf.
Delayed
Sweep
Sweep
delay
continuously
variable
from
1
microsecond
to
10
seconds.
Actual
delay
steps
within
1%
of
indicated
delay
from
2
sec/cm
to
0.1
sec/cm;
0.2
sec/cm
to
1
sec/
cm
typically
within
1%
but
never
more
than
3%.
Incre
mental
delay
accuracy
is
within
0.2%.
Jitter
—
not
more
than
1
part
in
20,000.
1-2
