067-0655-00 ,
SIGNAL
PICK
-
OFF
CABLE
REPLACEMENT
After
a
period
of
time
the
coax
cables
and
connectors
on
this
fixture
can
become
intermittent
,
or may
have
broken
loose
from
the
connector
.
The
cables
are
very
critical
as
far
as
their
length
is
concerned
.
Do not
re
place them with just any coax .
A
cable
replacement
set
is
available
and
contains
all
four
cables
.
Order P / N 198-2788-00 .

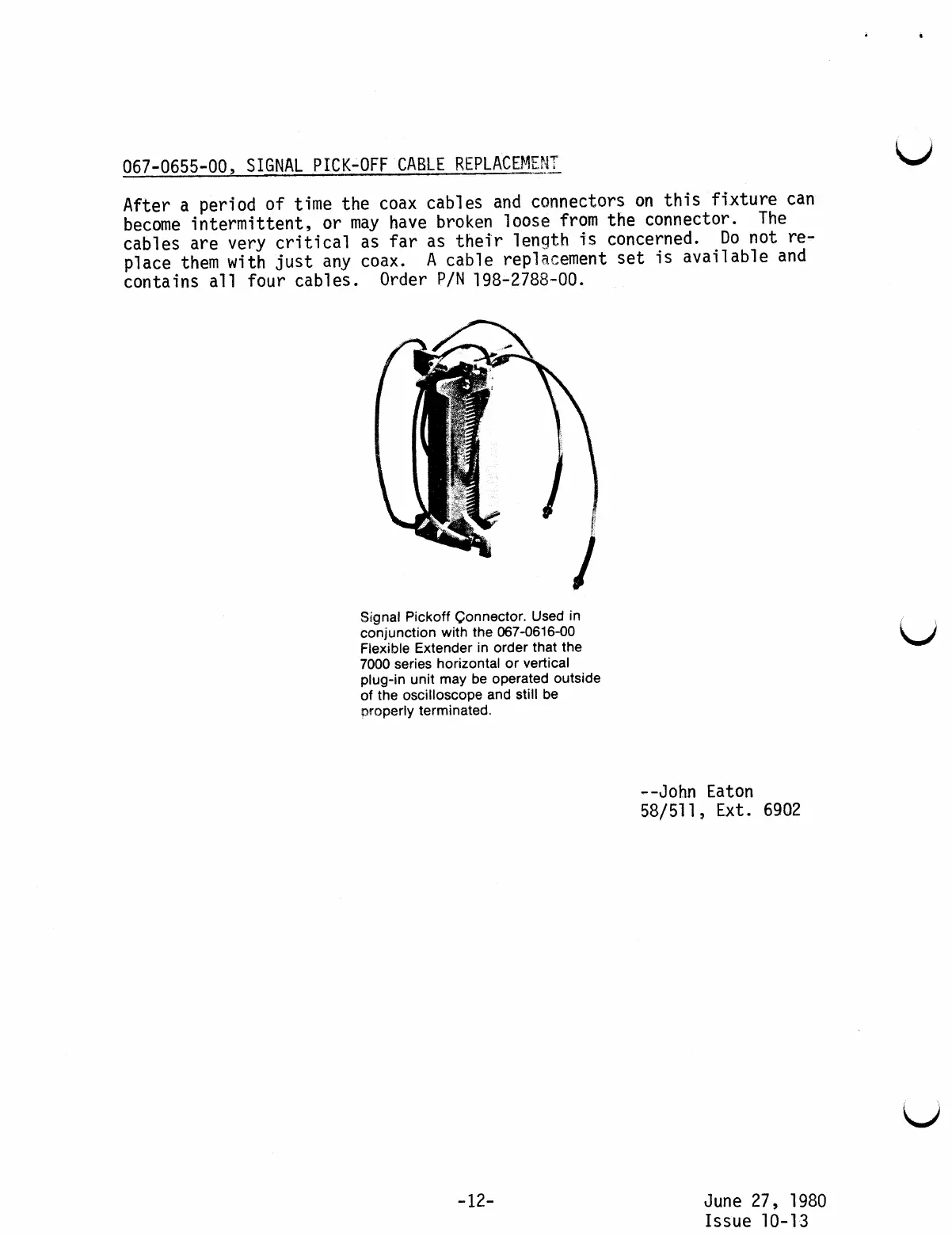

Signal
Pickoff
Connector
. Used
in
conjunction
with
the
067-0616-00
Flexible
Extender in
order
that
the
7000
series
horizontal
or
vertical
plug
- in
unit
may
be
operated
outside
of
the
oscilloscope
and
still
be
properly
terminated .
--John
Eaton
58/511
,
Ext
.
6902
-12
June 27 , 1980
