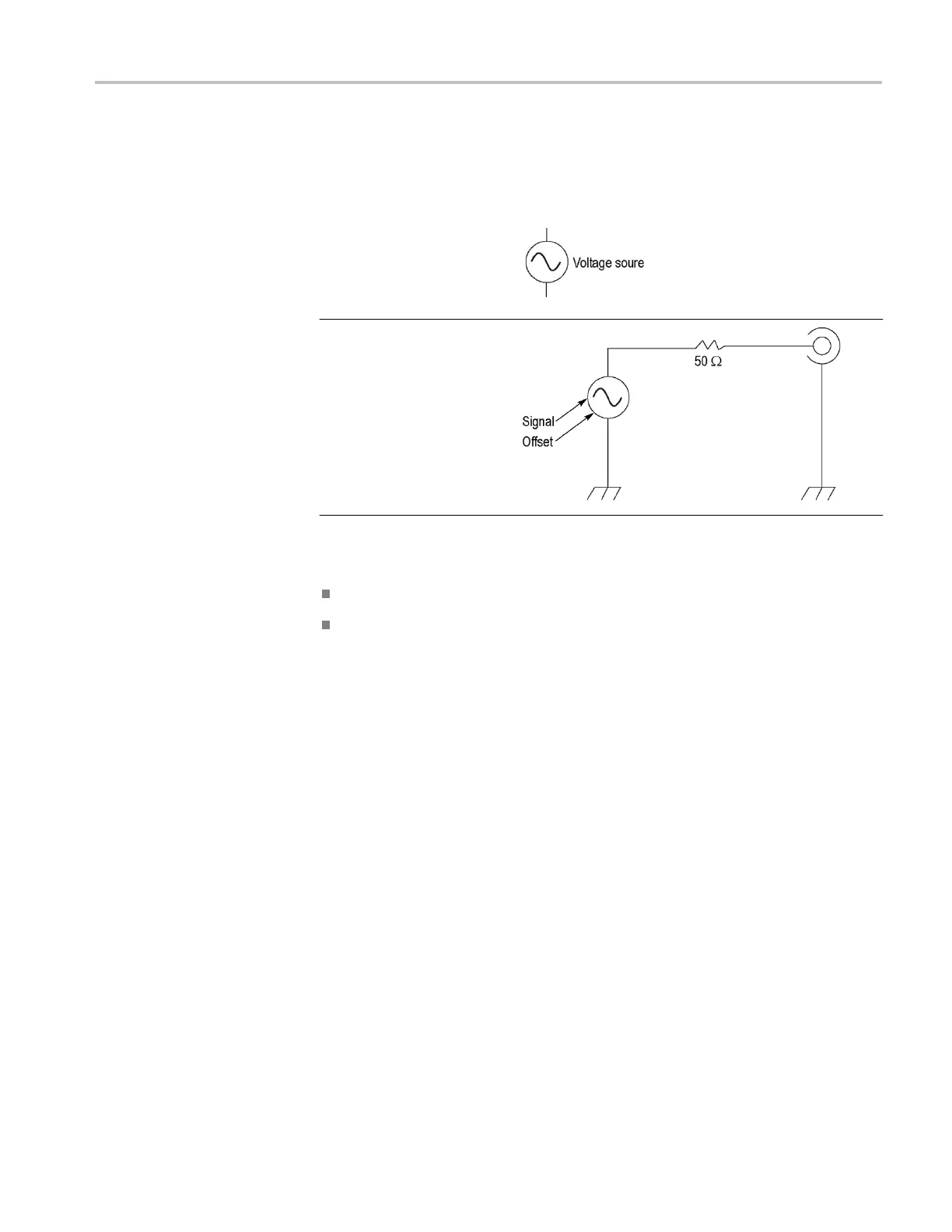

Equivalent output circuits
The following illustrations show the equivalent output circuits:
Legend for the following
images:
Output signals do not exceed
±10 V when the >50 Ω load
impedance is used.
A change to the load impedance (L) will affect the output window (maximum and
minimum levels) for a sine waveform as follows.
L = 50 Ω: -5 V to +5 V (10 V
p-p
)
L = High Z: -10 V to +10 V (20 V
p-p
)
