Removal and installation

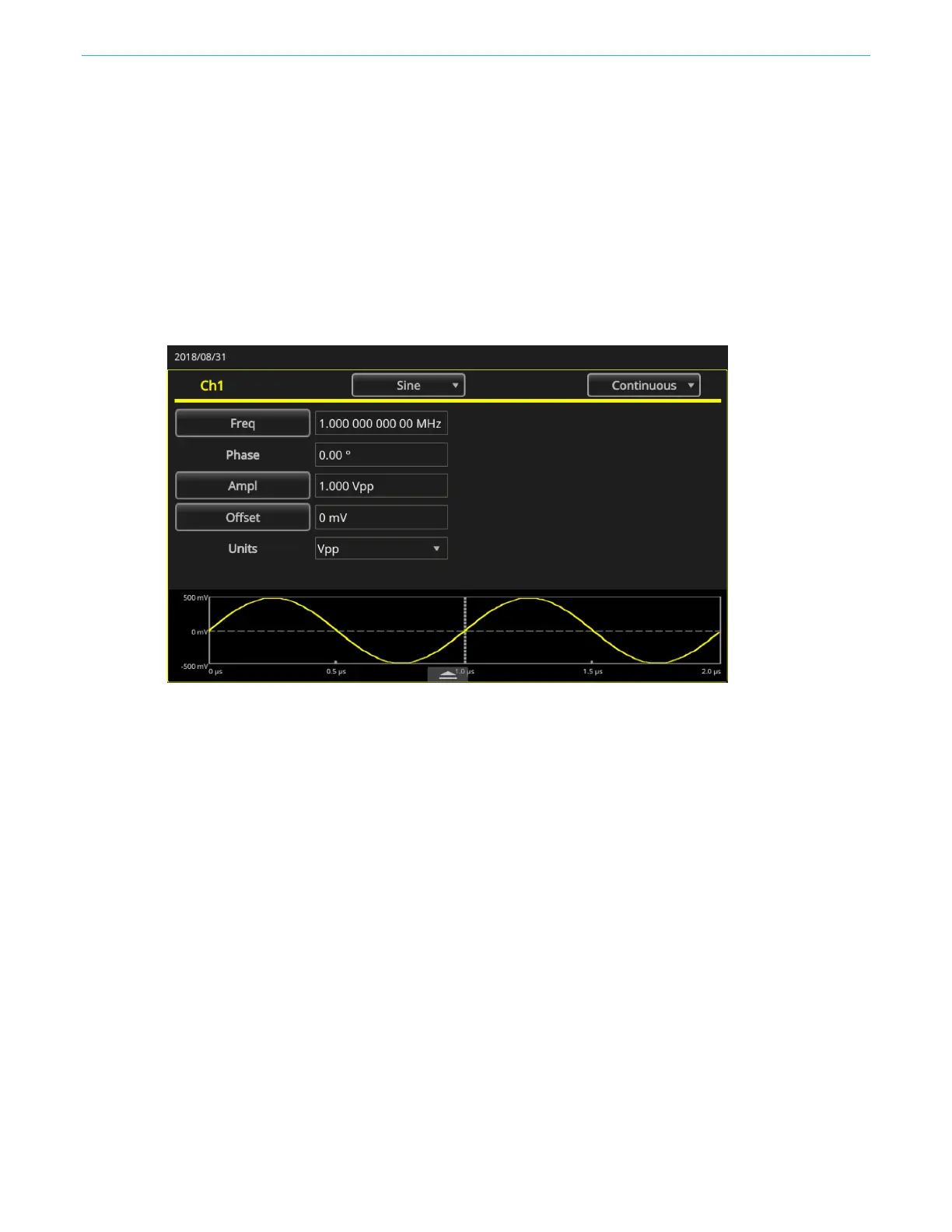

AFG31000 Series Arbitrary Function Generator Service Manual
47
Figure 19: Module rear chassis, upper cables
Module rear chassis bottom removal and installation
You will need a torque-limiting Torx T-15 and T-10 screwdriver for this procedure. Refer to the
following figure and follow the steps below to remove the module rear chassis-bottom.
To remove the module rear chassis-bottom:
1. Remove two screws attaching the rear chassis-bottom to front chassis by using T-15 screwdriver.
2. Remove five screws attaching the rear chassis-bottom to front chassis by using T-10 screwdriver.
3. Disconnect the following cables:
a. Front panel cable
b. Display module flexible flat cable (FFC); (to disconnect the display module FFC, flip up the brown
connector cover and pull out the FFC)
4. Lift the module rear chassis-bottom off.
To install the module rear chassis-bottom, perform the removal procedure in reverse order.
Figure 20: Module rear chassis, bottom
