Tektronix AFG31052

Removal and installation
AFG31000 Series Arbitrary Function Generator Service Manual
67
Index
number
Tektronix part
number
Instrument model Quantity Name and description
-09
220-0497-00
AFG31022
AFG31052
AFG31102
AFG31152
AFG31252
4
Nut, plain hex;
.5-28 x .562 hex, BRS,
NI (nickel) plated
220-0497-00 AFG31021
AFG31051
AFG31101
AFG31151
AFG31251
3 Nut, plain hex;
.5-28 x .562 hex, BRS,
NI (nickel) plated
Exploded diagram - module front chassis

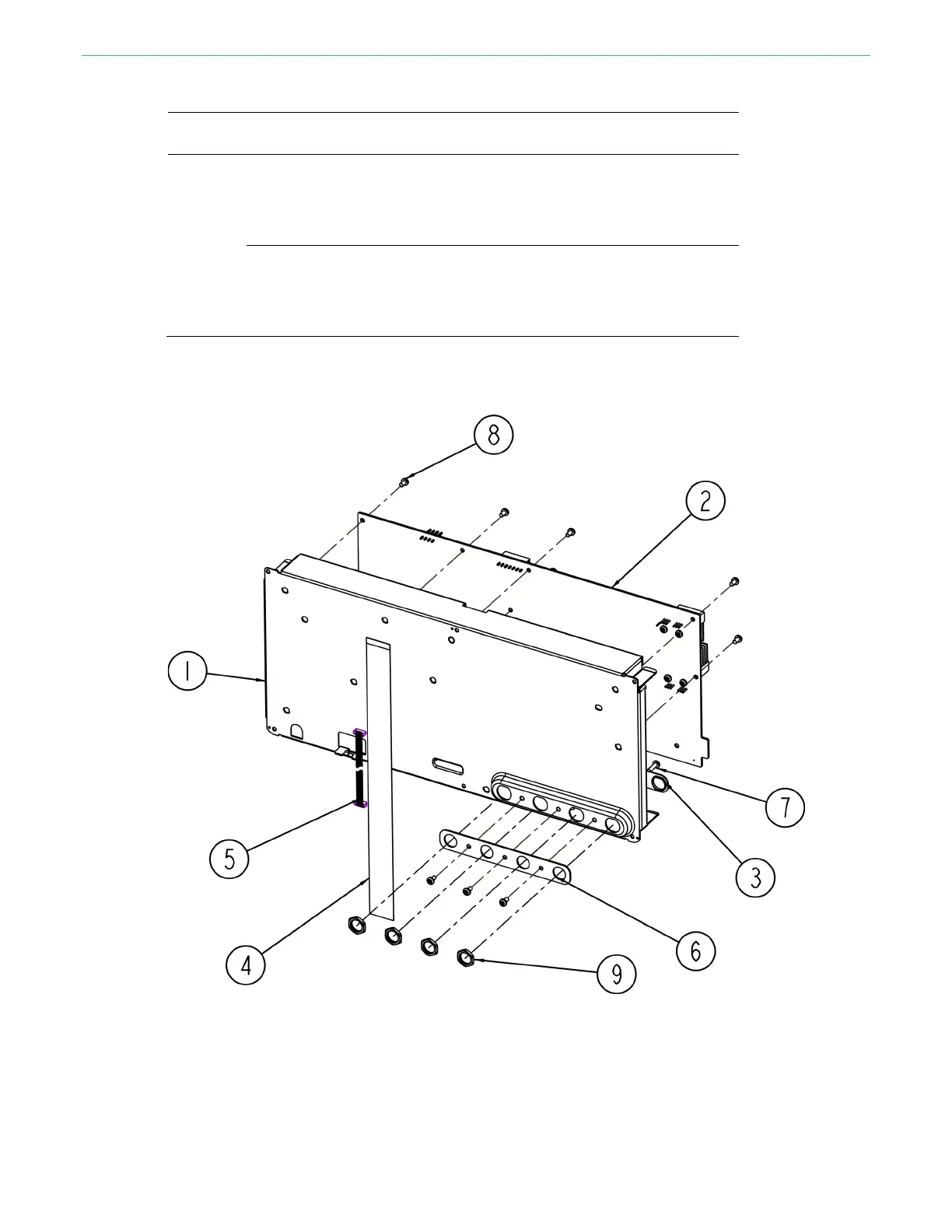

Figure 38: AFG31000 front chassis exploded view
