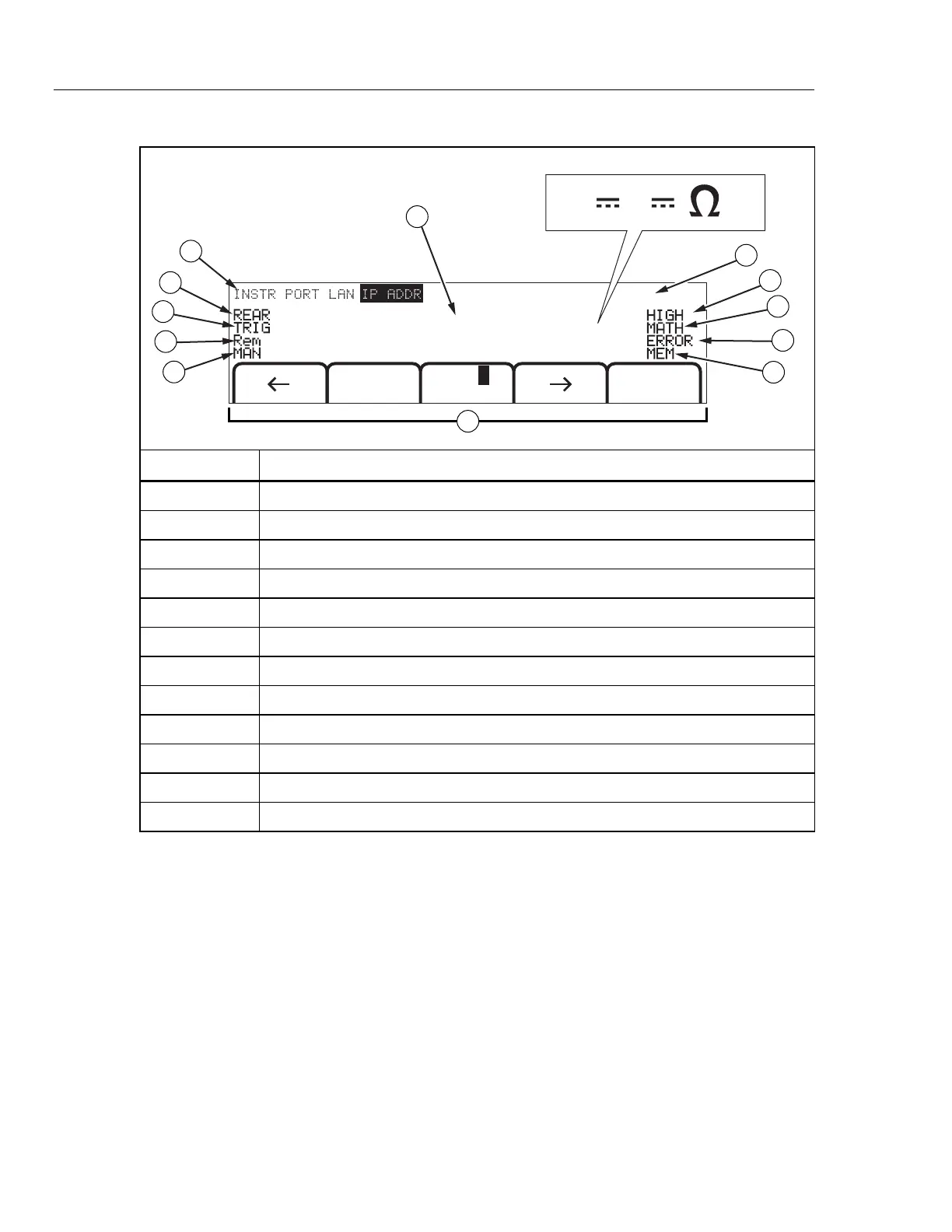

Table 3-2. Display Elements
-0.4561
100.0002
mV~
Hz
123.123.
--
ENTER
mV V ...
1
11
12
10
9
8
2
3
4
5
6
123.123.
7
caw02f.eps
Item Description
A Primary display.
B Secondary display.
C Indicates PASS, HIGH or LOW for limits testing.
D Math function selected.
E Error detected.
F Memory enabled for storing readings. Extinguishes when last sample is stored.
G Softkey labels.
H Manual range mode selected. See “Adjusting the Meter’s Range” section.
I The Meter is under remote control.
J External Trigger Enabled.
K Rear inputs connectors selected.
L Menu selection path.
Measurement results occupy the first two rows of the display. The primary display
consists of larger sized characters that comprise the 6½ digits (-1999999 to 1999999),
plus a decimal point. In the example shown above, the primary display shows
measurement results for an ac voltage measurement.
The secondary display is smaller than the primary display and located in the upper right
area of the display. However, it is also capable of displaying 6½ digits. Its function is to
display the results of a secondary measurement associated with the primary measurement.
In the example shown, the secondary display shows the frequency of the ac voltage
measurement.
The Soft Key labels, row three, identify the functions of the five soft keys just below the
display.
