Giving Demos of A dvanced Oscillosco pe Features
9. Push the lower-bezel Re cord Length
button (if not already active), and the
side-bezel 1M points button.

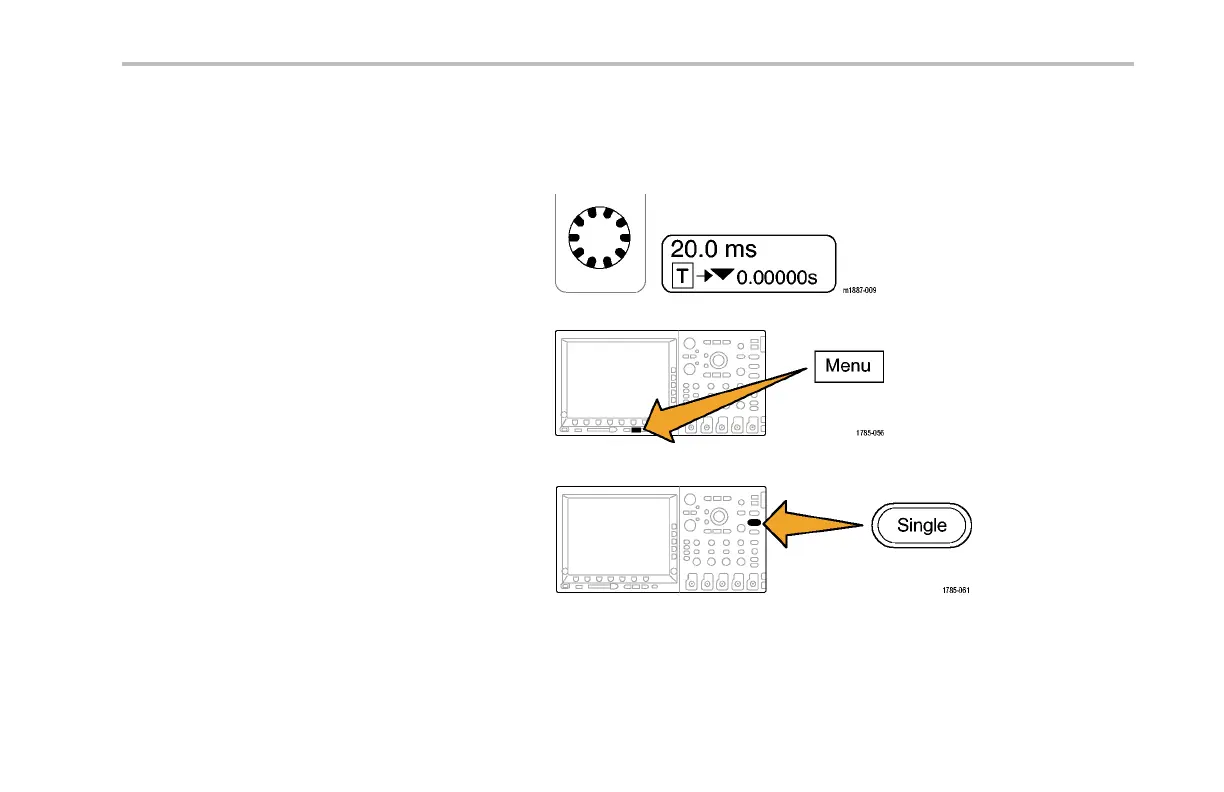

10. Turn the front-panel Horizontal Scale knob
to set the horizontal scale to 20.0 ms/div on
the MSO/DPO4000. Se t it to 2.0 ms/div on
the MSO/DPO2000 and MSO/DPO3000.
Hint: If you want to save this setup so that
you can recall it at the beginning of each
Demo 2, p ush the front-panel Save/Recall
Menu button, the lower-be z el Save Setu p
button, and s elect where you want to store
the setup.
11. Push the front-panel Single button to
acquire a single acquisition.
Demo 2 Board Instruction Manua l 29
