Tektronix DPO2000 Series Instruction Manual

Giving Demos of Advanced Oscilloscope Features
17. Push the lower-bezel Event Table.
Event Table
18. Push the side-bezel Event Table butto n to
select On.
Event Table
On|Off

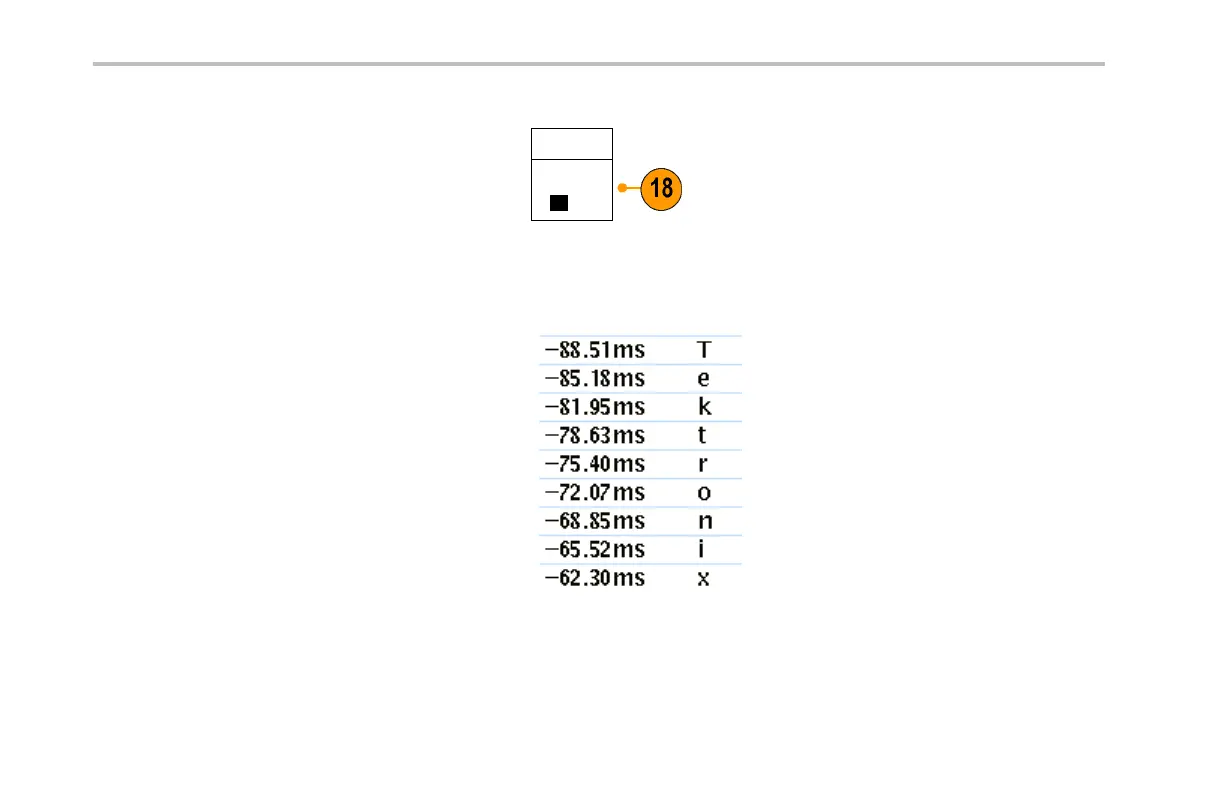

The event table pre sents information in an
alternative way to the graphical bus waveform
display. It resembles a state listing window in
a logic analyzer.
Notice that you can now view each character
in the listing display.
19. Turn off the event table.
66 Demo 2 Board Instruction Manual
