Get Acquainted with the Instrument

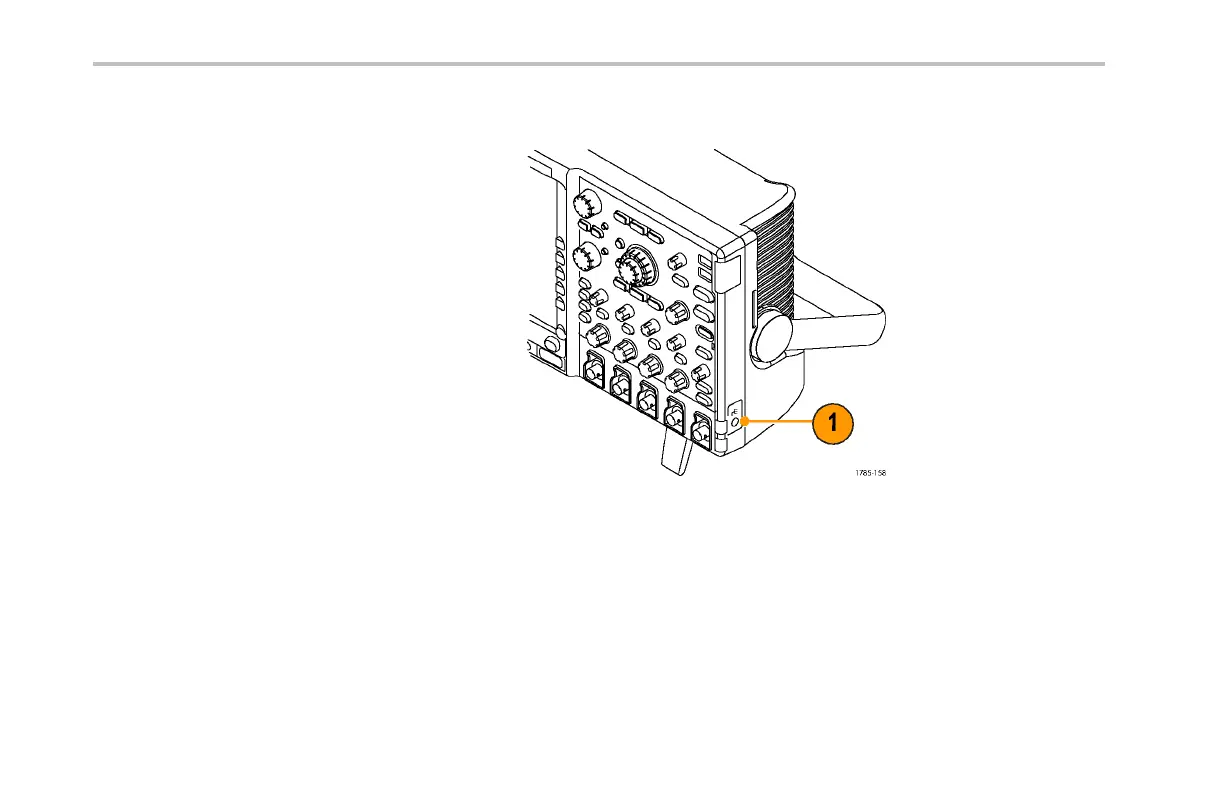

Side-Panel Connector
1. Ground strap connector. This is a
receptacle f or a grounding strap.
78 MSO4000 and DPO4000 S eries Oscilloscopes User Manual
