Tektronix DPO4034 User Manual
5
of 1
of 1 rating
359 pages
Give review
Manual
Specs
To Next Page
To Next Page
To Previous Page
To Previous Page
Loading...

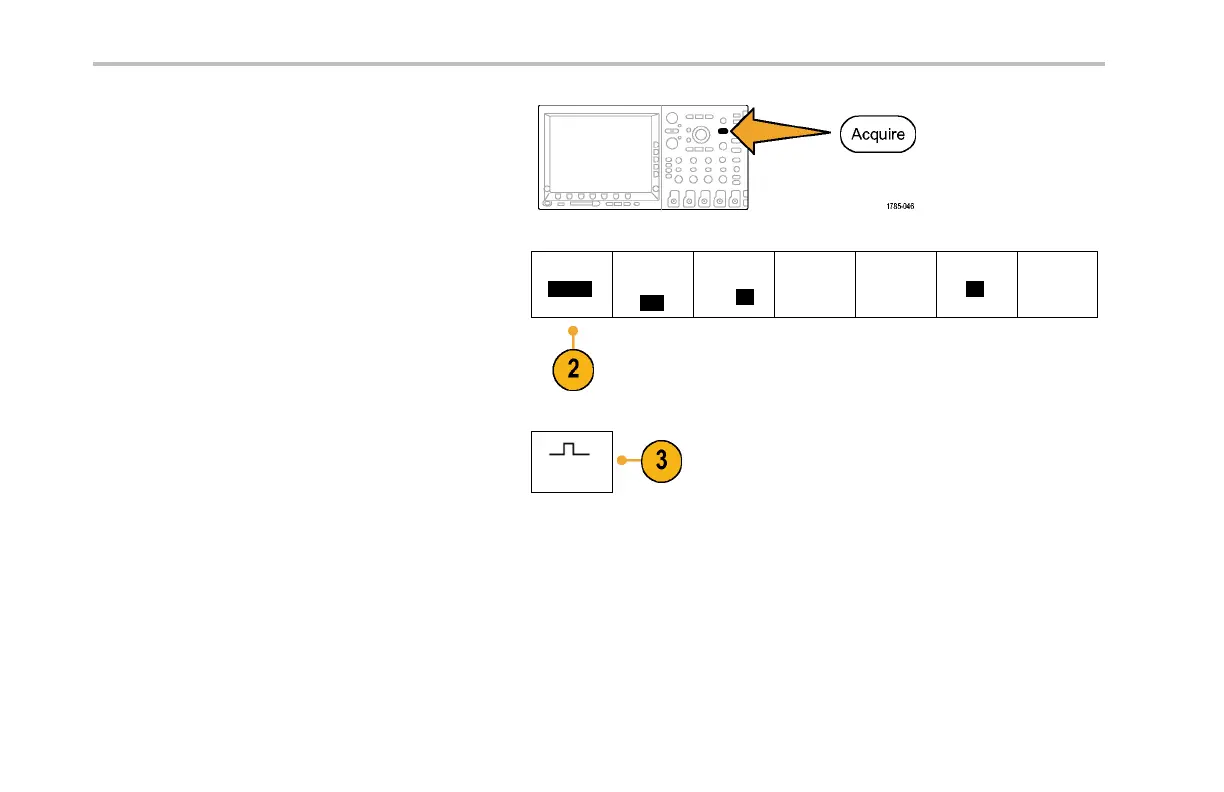

Application
E
xamp
les
1.
Push
Acquire
.
2.
Push
M
ode
.
Mode
Sample
Record
Length
10K
Delay
On
|
Off
Set
Horiz.
Position
to
10%
Wav
e
fo
r
m
Display
XY
Display
Off
3.
Push
Average
on
the
side-bezel
me
nu.
Average
286
MSO4000
and
DPO4000
Series
Oscilloscopes
User
Manual
311
313
Table of Contents
Table of Contents
7
General Safety Summary
13
Compliance Information
16
EMC Compliance
16
Safety Compliance
18
Environmental Considerations
21
Preface
22
Key Features
22
Where to Find more Information
24
Conventions Used in this Manual
26
Installation
27
Before Installation
27
Operating Considerations
34
Connecting Probes
39
Securing the Oscilloscope
42
Powering on the Oscilloscope
42
Powering off the Oscilloscope
45
Functional Check
46
Compensating a Passive Voltage Probe
49
Application Module Free Trial
51
Installing an Application Module
52
Changing the User Interface Language
53
Changing the Date and Time
56
Signal Path Compensation
59
Upgrading Firmware
62
Connecting Your Oscilloscope to a Computer
69
Connecting a USB Keyboard to Your Oscilloscope
78
Get Acquainted with the Instrument
79
Front-Panel Menus and Controls
79
Front-Panel Connectors
103
Side-Panel Connector
104
Rear-Panel Connectors
105
Acquire the Signal
107
Setting up Analog Channels
107
Using the Default Setup
115
Using Autoset
116
Acquisition Concepts
117
How the Analog Acquisition Modes Work
120
Changing the Acquisition Mode, Record Length, and Delay Time
122
Using Roll Mode
125
Setting up a Serial or Parallel Bus
126
Setting up Digital Channels
149
When and Why to Turn on Magnivu
154
Using Magnivu
155
Trigger Setup
156
Triggering Concepts
156
Choosing a Trigger Type
163
Selecting Triggers
165
Triggering on Buses
172
Checking Trigger Settings
182
Using Sequence Trigger (a (Main) and B (Delayed))
183
Starting and Stopping an Acquisition
186
Display Waveform Data
187
Adding and Removing a Waveform
187
Setting the Display Style and Persistence
188
Setting Waveform Intensity
194
Scaling and Positioning a Waveform
195
Setting Input Parameters
198
Positioning and Labeling Bus Signals
205
Positioning, Scaling, and Grouping Digital Channels
207
Viewing Digital Channels
211
Annotating the Screen
212
Viewing the Trigger Frequency
214
Analyze Waveform Data
216
Taking Automatic Measurements
216
Selecting Automatic Measurements
218
Customizing an Automatic Measurement
225
Taking Manual Measurements with Cursors
233
Using Math Waveforms
239
Using FFT
242
Using Advanced Math
246
Using Reference Waveforms
248
Using Wave Inspector to Manage Long Record Length Waveforms
250
Analyzing Power
260
Save and Recall Information
262
Saving a Screen Image
266
Saving and Recalling Waveform Data
268
Saving and Recalling Setups
273
Saving with One Button Push
276
Printing a Hard Copy
278
Erasing Oscilloscope Memory
289
Using Application Modules
292
Application Examples
295
Taking Simple Measurements
295
Analyzing Signal Detail
308
Triggering on a Video Signal
317
Capturing a Single-Shot Signal
323
Correlating Data with a TLA5000 Logic Analyzer
328
Tracking down Bus Anomalies
330
Troubleshooting Circuits Using Parallel Buses
335
Troubleshooting an RS-232 Bus
339
Appendix: Warranted Speciļ¬cations
345
Other manuals for Tektronix DPO4034
