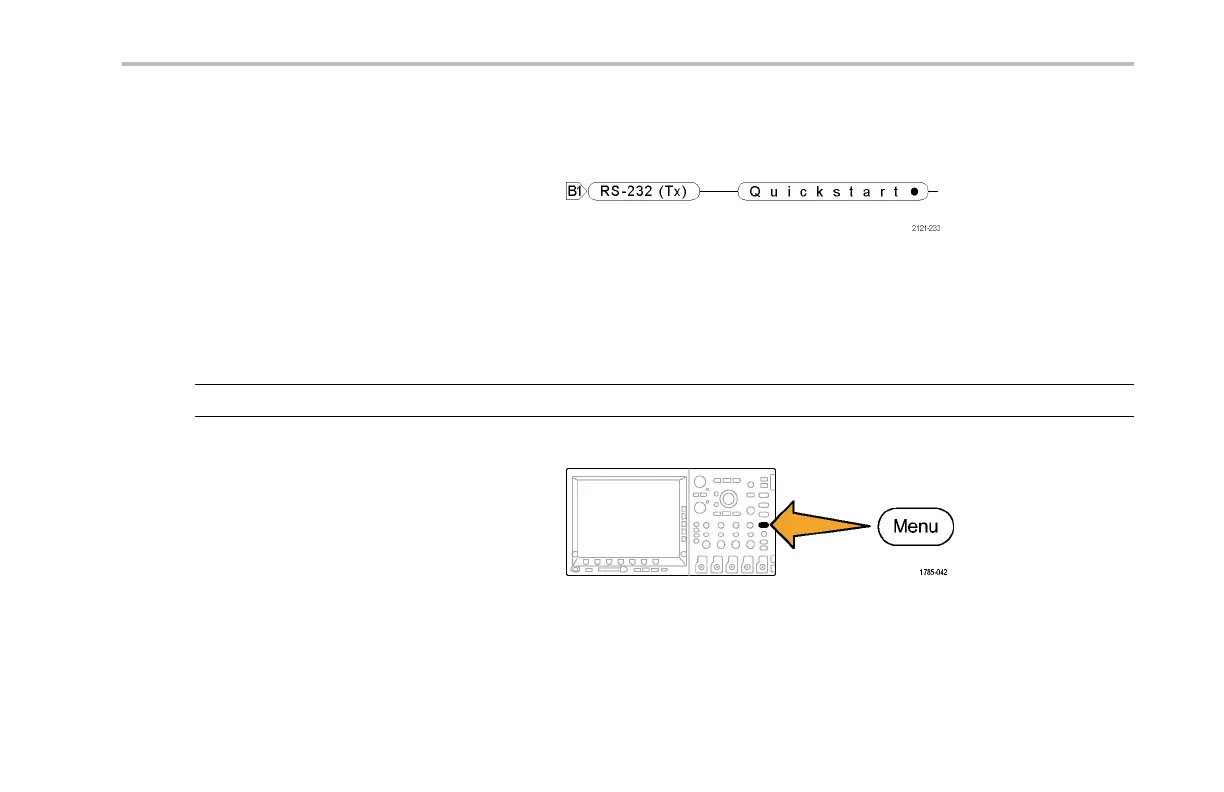

Giving Demos of Advanced Tektronix 4000 Features
21. Push the lower-bezel Congure button. Push
the side-bezel Packets button to On. Then
push Menu Off once to remove the side menu.
Notice that the messages are all contained in
packets for easier re ading of t he ASCII data.
Demo XV: Triggering on a Serial Data Pattern (e.g . RS-232)
Tektronix 4000 series o scilloscopes can trigger on a user-specied serial data pattern, such as you would nd in RS-232 data.
NOTE. I nstall the DPO4COMP application module before running this demo.
1. Push Trigger Menu.
Tektronix 4000 Oscilloscope Demo In struction Manual 63
