Tektronix DPO4054 Demo Instruction Manual

Giving Demos of MSO4000 Features

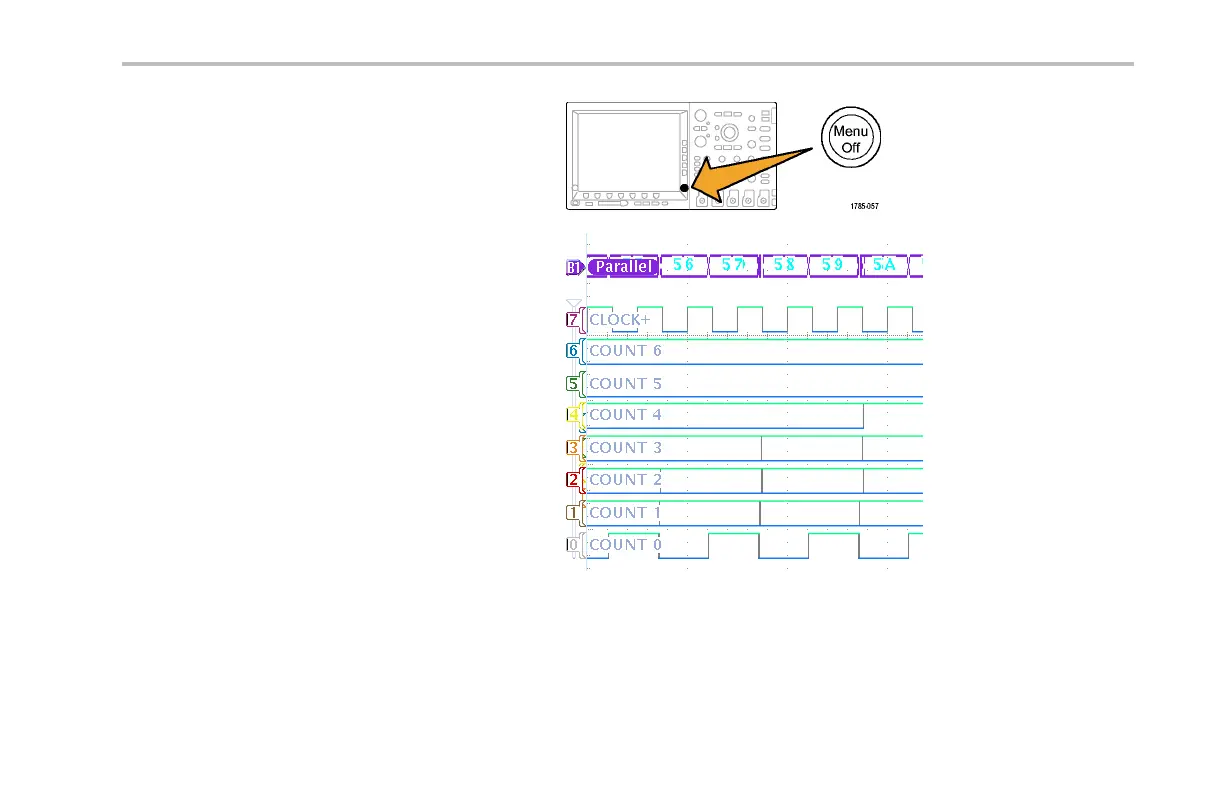

6. Push Menu Off to the lower-right of the display
to remove the side menu.
7. Turn knob a to move the parallel bus d isplay
above the display of digital channels, so you
can more easily read the decoded bus.
Observe the decoded bus values on the
display. The bus transitions everywhere that
the data transitions.
Tektronix 4000 Oscilloscope Demo In struction Manual 81
