MSO
Features

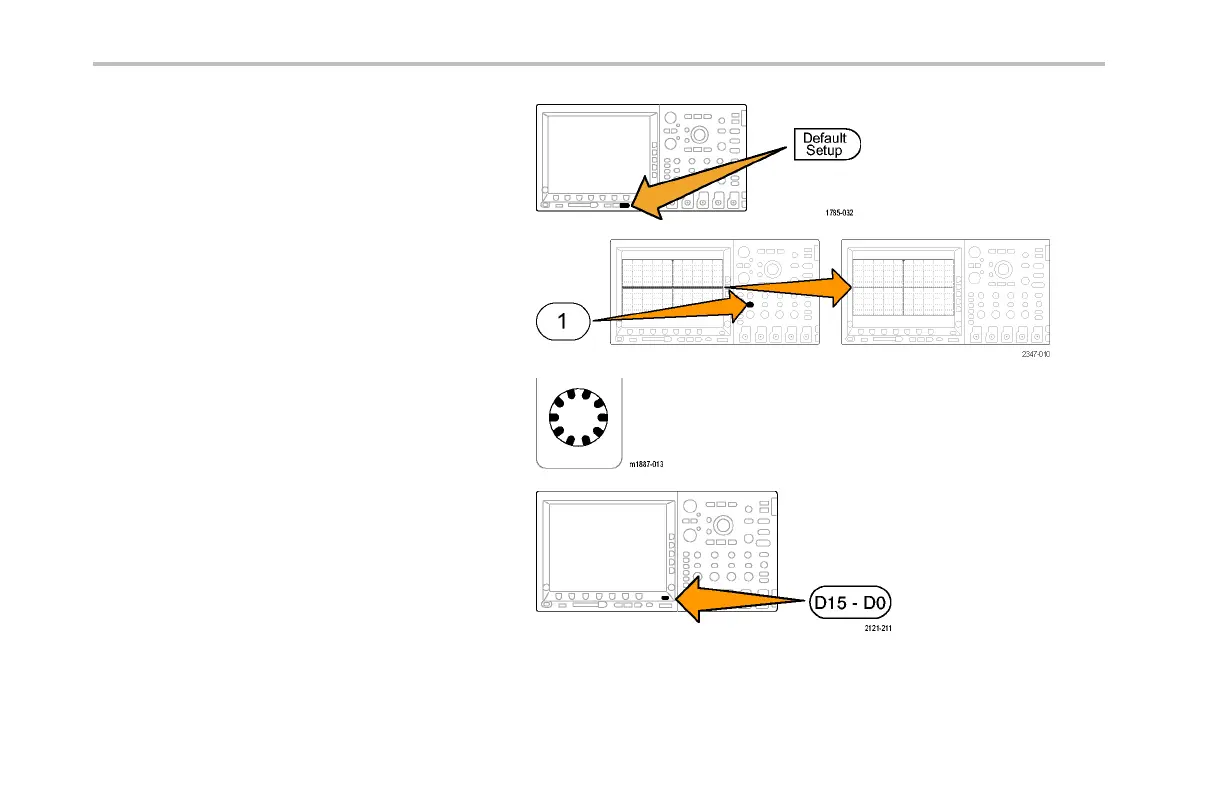

2.
Push
Default
Setup
.
3.
Push
the
front-panel
channel
1
button
a
s
many
times
as
needed
(e.g.
two
times)
to
remove
the
channel
1
waveform
from
the
display
.
4.
Turn
the
front-panel
Horizontal
Scale
knob
to
set
the
time/division
to
200
ns/div
.
5.
Push
the
front-panel
D15-D0
button.
Green
Blue
84
Demo
2
Board
Instruction
Manual
89
91
Table of Contents
Default Chapter
5
Table of Contents
5
Getting Started with the MSO/DPO2000, MSO/DPO3000, and MSO/DPO4000 Series Oscilloscopes
7
Gettingstartedwiththemso/Dpo2000 ,Mso/Dpo3000,Andmso/Dpo4000Seriesoscilloscopes
8
Demo I: Acquiring a Signal
8
Demo II: Using Vertical Controls
12
Demo III: Using Horizontal Controls
14
Demo IV: Using Run/Stop Controls
15
Demo V: Using Trigger Controls
15
Demo VI: Using Cursors
18
Demo VII: Taking Measurements
20
Demo VIII: Saving a Screen Image
23
Giving Demos of Advanced Oscilloscope Features
27
Overall Package
27
MSO/DPO4000 Series Performance
28
MSO/DPO3000 Series Performance
29
MSO/DPO2000 Series Performance
30
Wave Inspector Demos
31
Demo IX: Setting up I 2 C Signals
32
Demo X: Using the Wave Inspector's Zoom and Pan Functionality
37
Demo XI: Using the Wave Inspector's Search Functionality
43
Demo XII: Using Serial Triggering and Analysis
48
Demo XIII: Searching Serial Signals
61
Demo XIV: Monitoring and Decoding RS-232 Signals
65
Demo XV: Triggering on a Serial Data Pattern (E.g. RS-232)
73
Demo XVI: Filtervu (MSO/DPO2000)
76
Giving Demos of MSO Features
85
Ease of Use
85
Performance
85
Tour the MSO Front Panel
87
Demo XVII: Setting up Digital Channels (MSO2000, MSO3000, and MSO4000 Models)
88
Demo XVIII: Discovering Per-Channel Thresholds (MSO4000 Only)
95
Demo XIX: Labeling Channels (MSO2000, MSO3000, and MSO4000 Models)
97
Demo XX: Exploring Parallel Buses (MSO2000, MSO3000, and MSO4000 Models)
99
Demo XXI: Triggering on Parallel Bus Data Values (MSO2000, MSO3000, and MSO4000 Models)
105
Demo XXII: Searching for Parallel Bus Data Values (MSO2000, MSO3000, and MSO4000 Models)
108
Demo XXIII: Zooming in on White Edges (MSO4000 Only)
110
Troubleshooting
117
Locating Signals
118
