Analyzing wavef

orms

Customizing an automatic measurement

Customize automatic measurements by using gating, modifying measurement statistics, or adjusting the measurement

reference levels.

Gating

UseGatingtoconﬁne the measurement to a

certain part of a waveform.

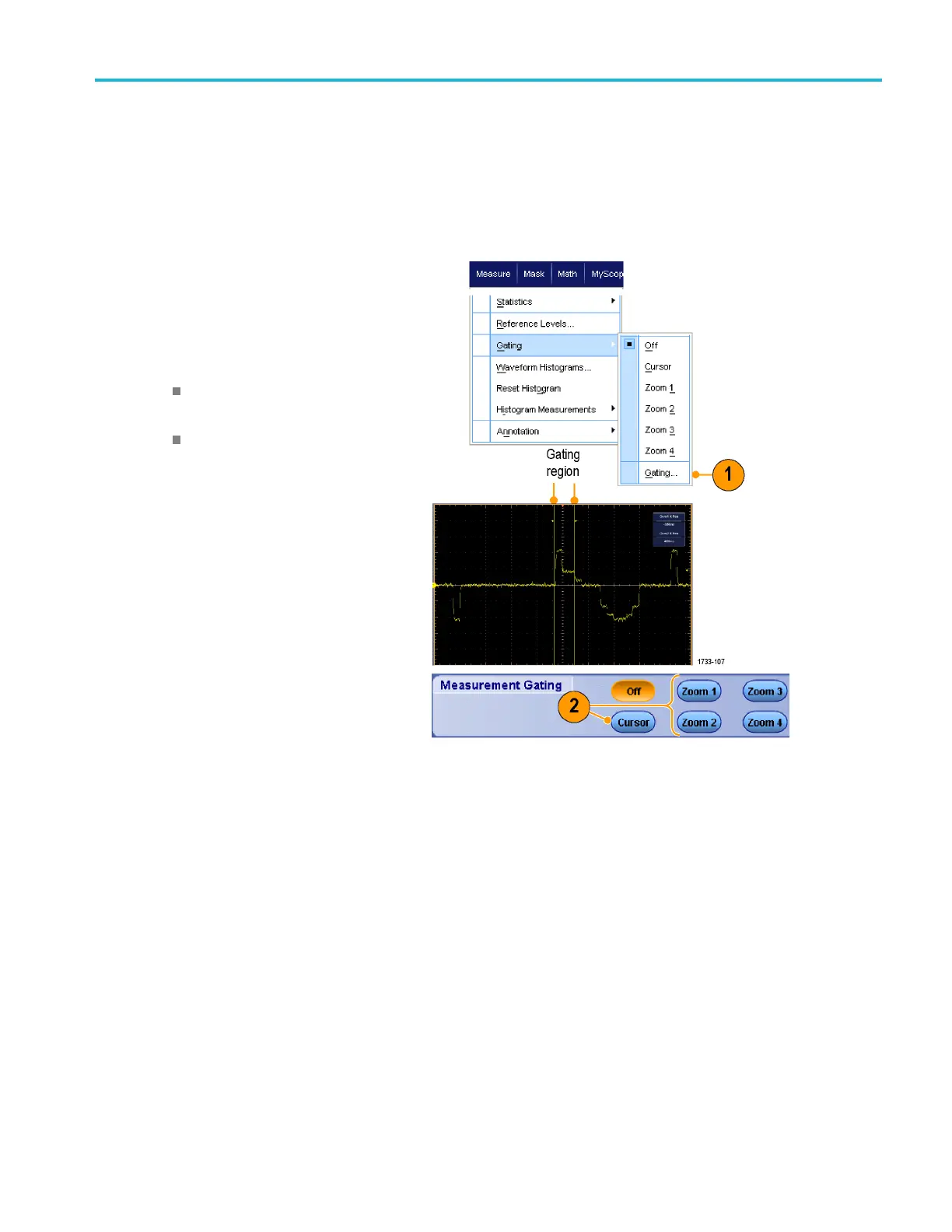

1. Select Measure > Gating > Gating ....

2. Position the gates by doing one of the

following:

Click Cursor to set the gated area to

the area between the cursors.

Click Zoom (1-4) to set the gated

area to the Zoom (1-4) graticule.

MSO/DPO70000DX, MSO/DPO70000C, DPO7000C, and MSO/DPO5000B Series User Manual 121
