Acquisition
Using FastFrame mode
FastFrame allows you to capture many trigger events as single records in a larger record, and then view and measure
each record individually. Time Stamps display the absolute trigger time for a specific frame and the relative time between
triggers of two speci fied frames.

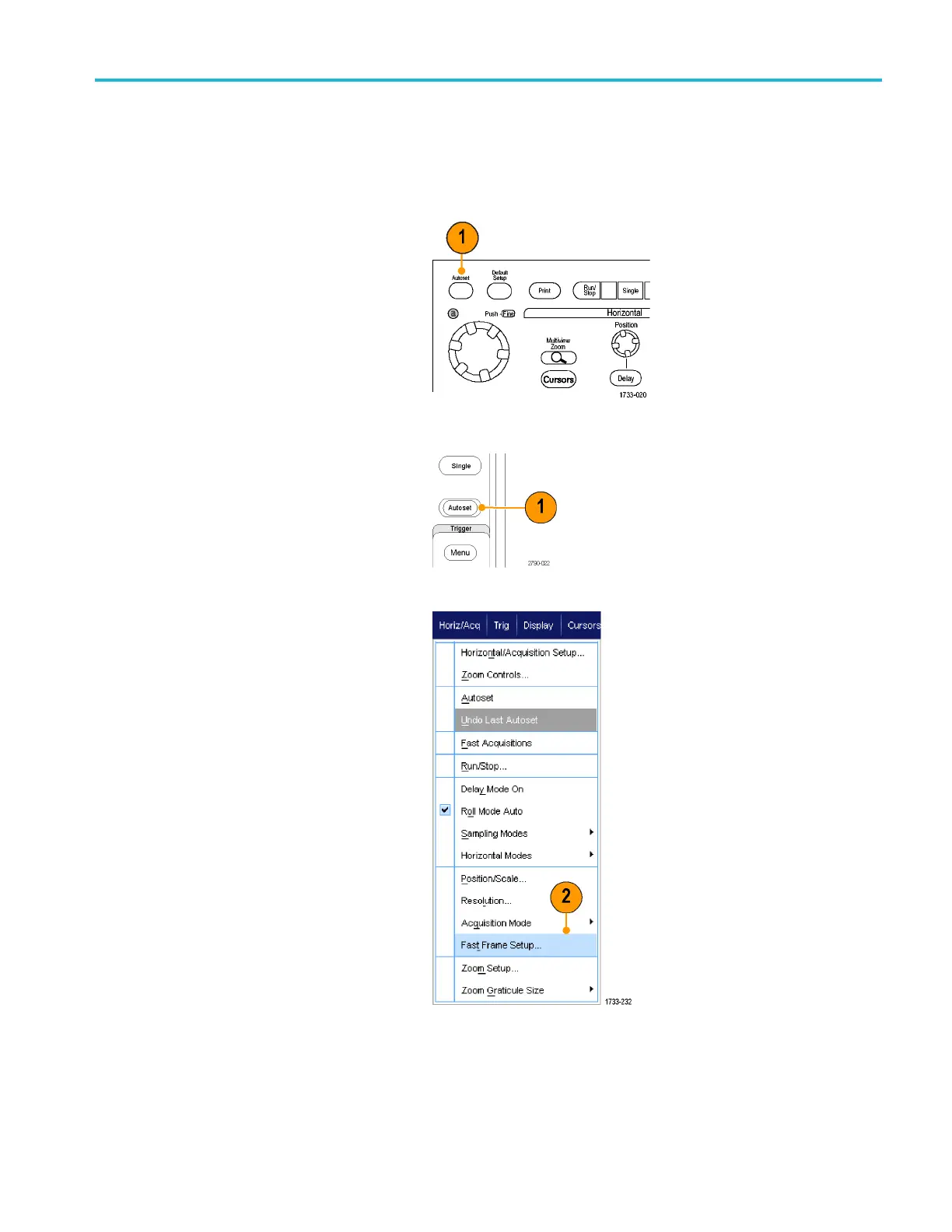

1. Push AUTOSET to set the horizontal,
vertical, and trigger controls or set the
controls manually.
MSO/DPO700
00DX, MS O/DPO70000C, and DPO7000C Series
MSO5000B and DPO5000B Series
2. Select Horiz/Acq > FastFrame Setup....
MSO/DPO70000DX, MSO/DPO70000C, DPO7000C, and MSO/DPO5000B Series User Manual 63
