Application Exa
mples

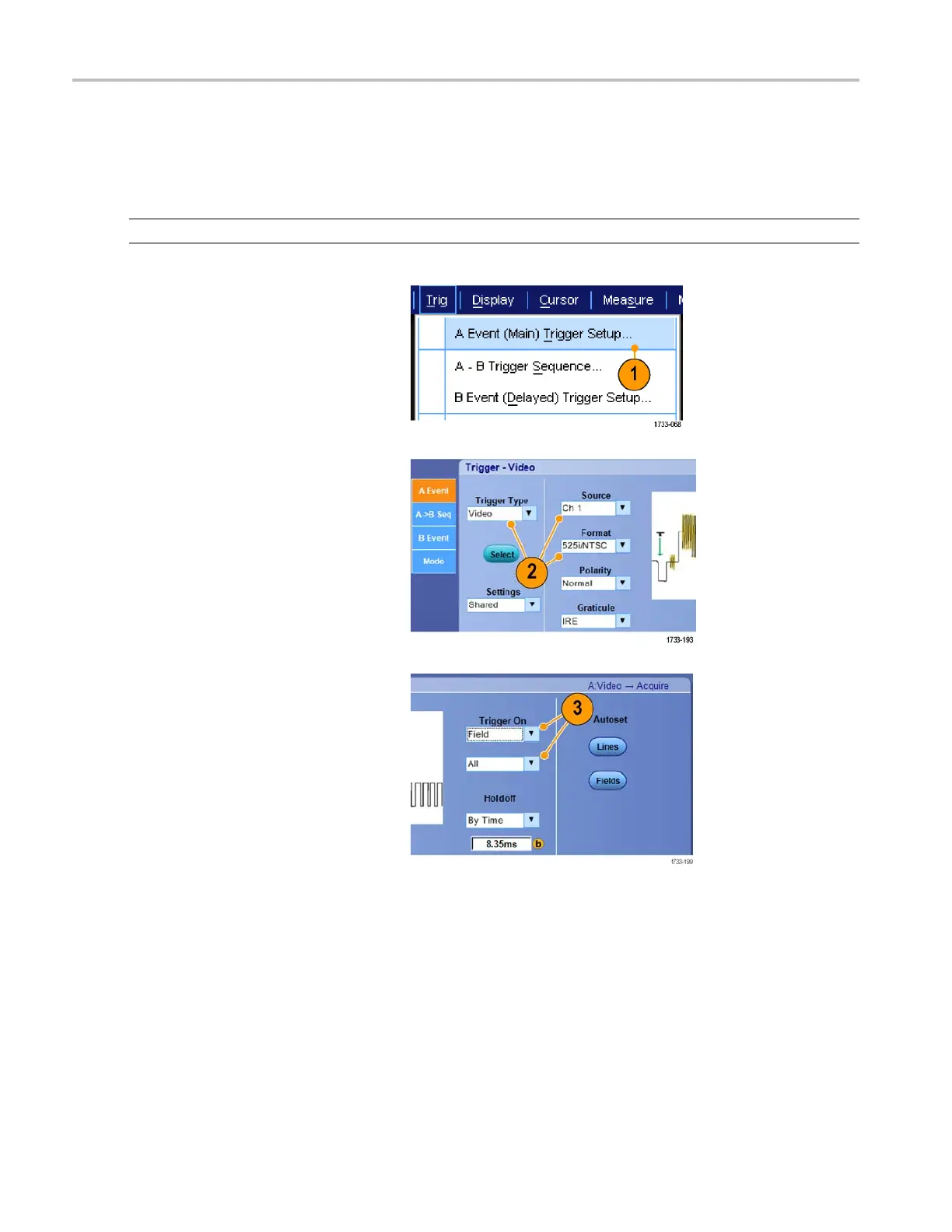

Triggering on a Video Signal
The instrument supports triggering on NTSC, SECAM, PAL, and high denition signals.
To trigger on the video elds:
NOTE. The video trigger type is available only on DPO7000, MSO5000, and DPO5000 Series instruments.
1. Select Trig > A Event (Main) Trigger
Setup....
2. Set the A trigger type and source in the
AEventta
b.
Select Format > 525i/NTSC.
3. Select Trigger On > Field.
Select Odd, Even,orAll elds.
166 MSO70000/C, DPO/DSA70000B/C, DPO7000, and MSO/DP O5000 Series U ser M anual
