Operating Requirements
Operating Req
uirements
This section
provides the specifications that you need to know to operate your
product safely and correctly. Refer to the complete product specifications in the
MSO/DPO2000B Technical Reference for additional information.
DPO2000B an d MSO2000B
Series Oscilloscopes
Power Supply Input Voltage: 100 V to 240 V ± 10%
Power Supply Input Power Frequency:
50/60 Hz at 100 V to 240 V
400 Hz at 115 V
Power Consumption: 80 W m aximum
Input Vo ltage (between the signal and reference): 300 V
RMS
CAT II
Installation Category II - for measurements performed on circuits directly
connected to the low-voltage installation

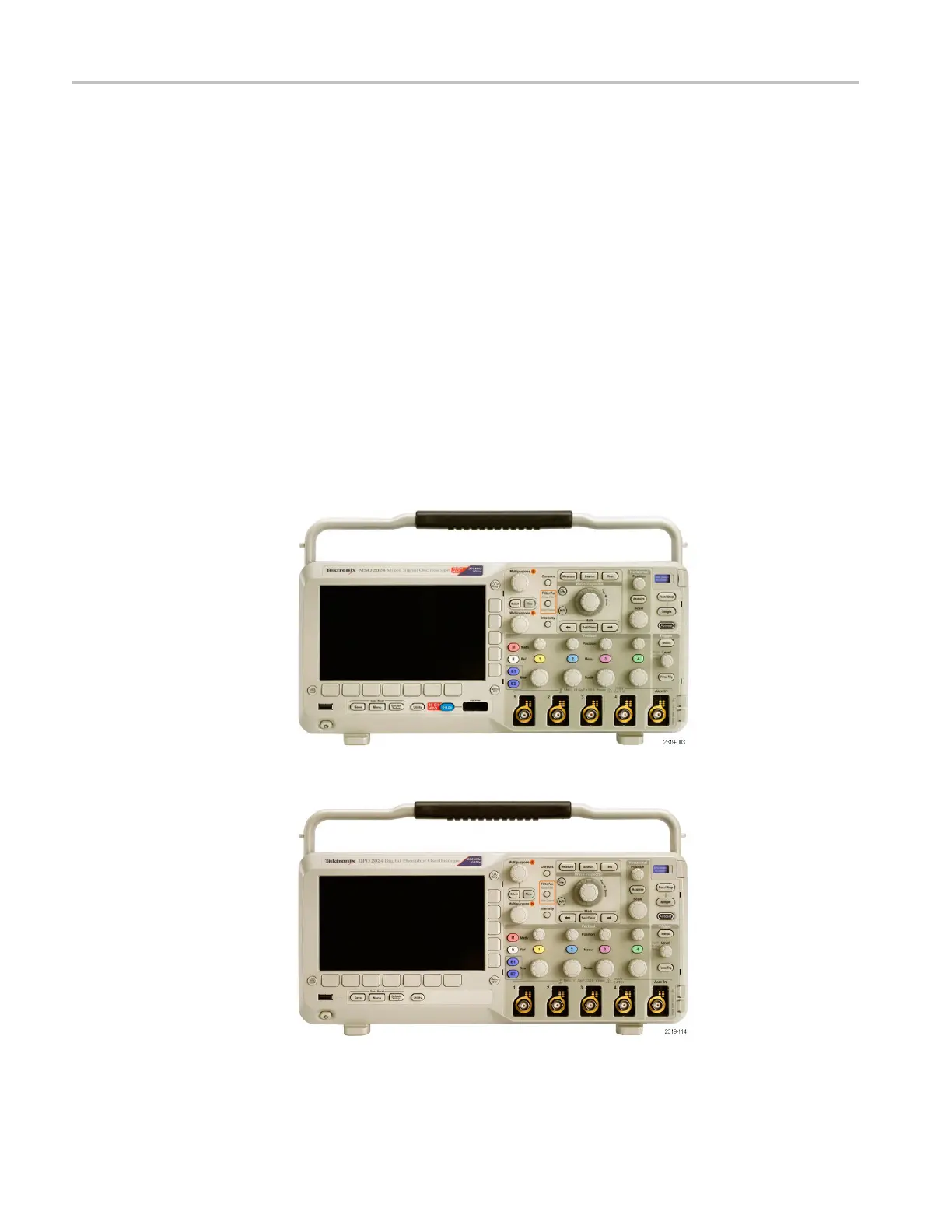

Figure 1: MSO2000B series
Figure 2 : DPO2000B series
12 MSO2000B and DPO2000B Installation and Safety Instructions
