Giving Demos of MSO Features
Demo XIX: Labeling Channels (MSO2000, MSO3000, and MSO4000 Models)
You can add custom labels to each digital waveform. As the number of signals on the oscilloscope display increases, it becomes
more and more helpful to attach labels to each signal.
NOTE. Start from where you finished the last demo. In other words, you should have pushed the front-panel D15-D0 button to
bring up the D15-D0 lower-bezel m enu.

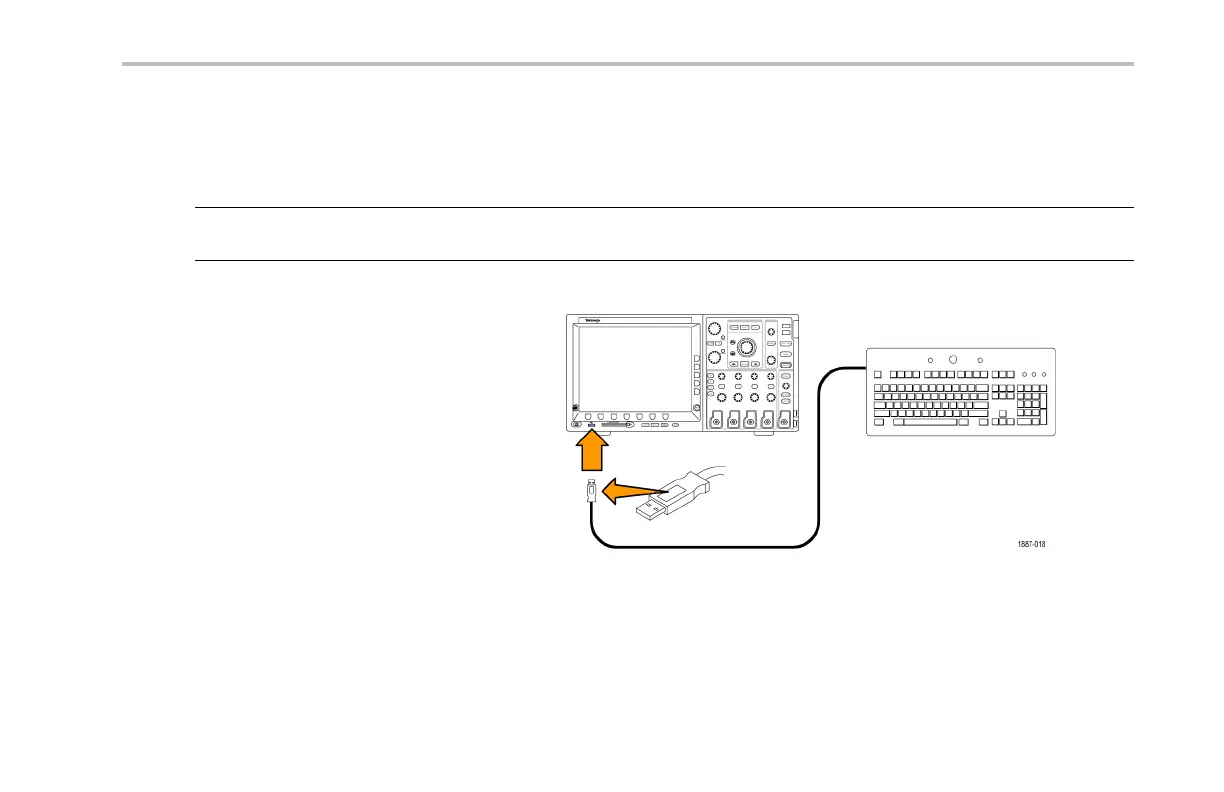

1. Connect a USB keyboard to one of the USB
ports. Use either the front-panel or, if available,
a rear-panel USB port.
Demo 2 Board Instruction Manua l 91
