Giving Demos of Advanced Oscilloscope Features

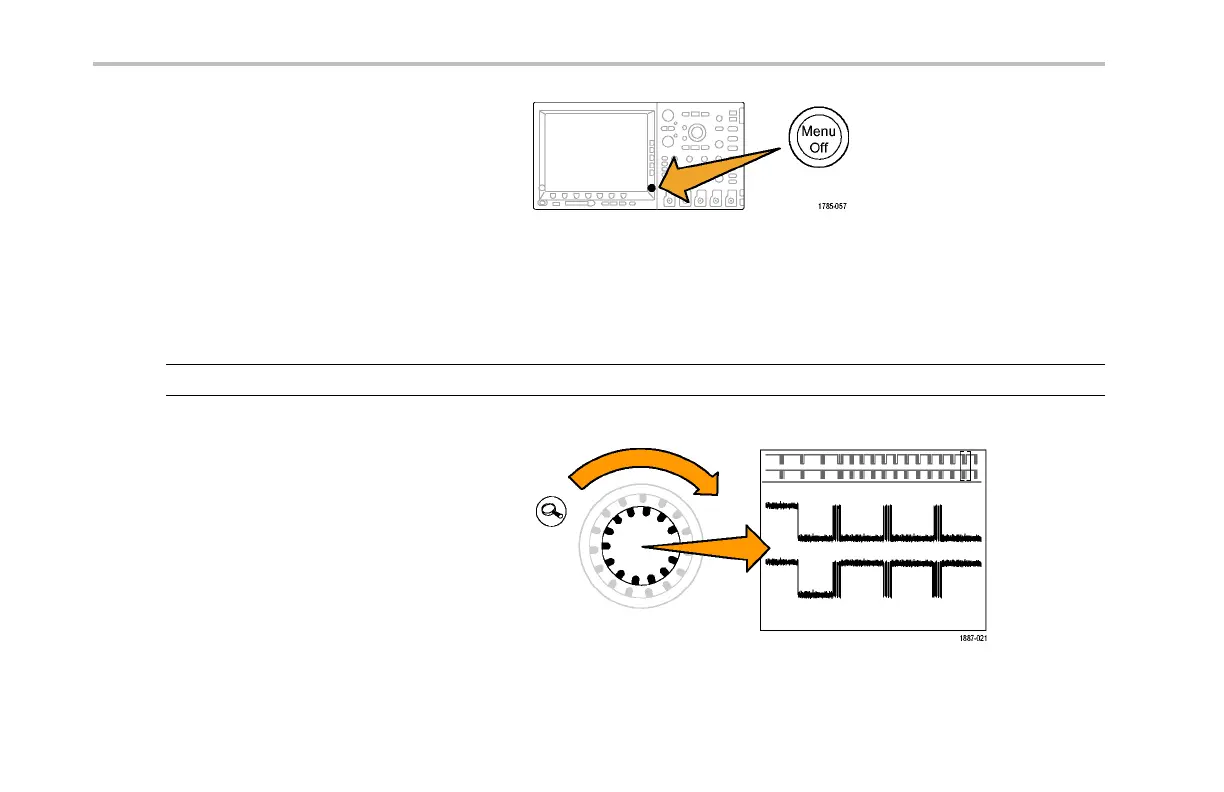

15. Push Menu Off to the right of the display
to rem ove the side me nu. Push it again to
remove the lower-bezel menu.
Demo XII: Using Serial Triggering and Analysis
This demo shows a mu ch easier and more efficient way to analyze your serial buses.
NOTE. Start from where you finished the last demo.
1. Turn the zoom (inner) knob to a djust your zoom
factor to 250 X on the MSO/DPO4000 or 200
X on the MSO/DPO2000 and MSO/DPO3000.
Hint: The oscilloscope will display the zoom
value near the top of the display.
42 Demo 2 Board Instruction Manual
