Giving Demos of MSO Features
Notice the green and blue colors of the
horizontal portions of the digital channel
waveform. The gree n indicates the signal is at
a logic high level and the blue indicates it is at
a logic low level.
NOTE. If you do not see a digital signal on
the display, check that you properly connected
the digital probe to both the oscilloscope and to
theDemo2boardinstep1.

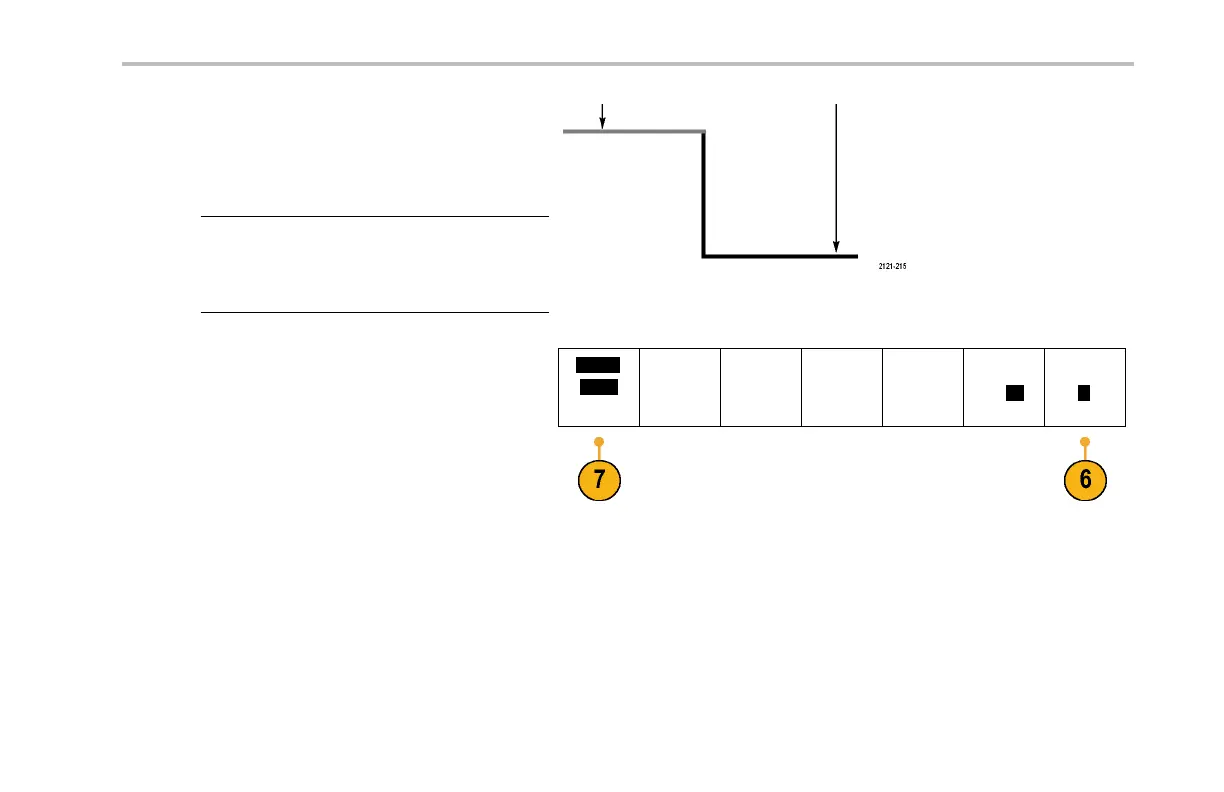

6. Confirm that the digital waveform height is
already se t to M (medium) on the lower-bezel
menu.
D15-D0
On/Off
Thresholds Edit Labels MagniVu
On |
Off
Height
S|
M|L
7. Push the lower-bezel D15-D0 menu button
(not the front-panel button with the same
name). On the resulting side menu, D0 should
already be checked as displayed.
Demo 2 Board Instruction Manua l 85
