Getting Started with the MSO/DPO2000 , M SO/DPO30 00, and MSO/DPO4000 Series Oscilloscopes

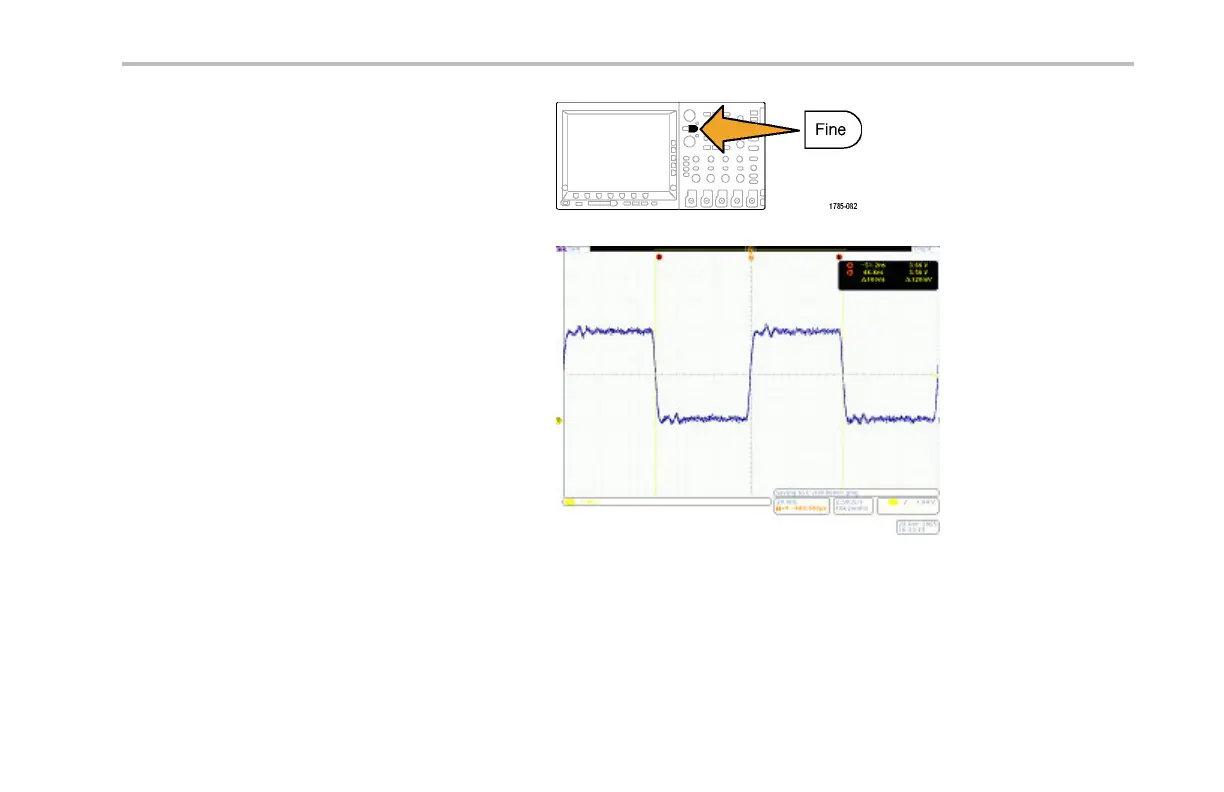

Hint: To m ove the cursors faster, turn off
fine mode by pushing the Fine button,
if lit, on the front panel between the two
multipurpose knobs.
3. Place one cursor at the midpoint of the
first falling edge. Place the other cursor at
the midpoint of the second falling edge to
measure the signal’s period. The cursor
readout should show a difference between
the cursors of approximately 800 ns.
Hint: To move the cursors more slowly, turn
the fine mode back on by pushing the Fine
button, if unlit, on the front panel between
the two multipurpose knobs.
Demo 2 Board Instruction Manua l 13
