Giving Demos of A dvanced Oscillosco pe Features

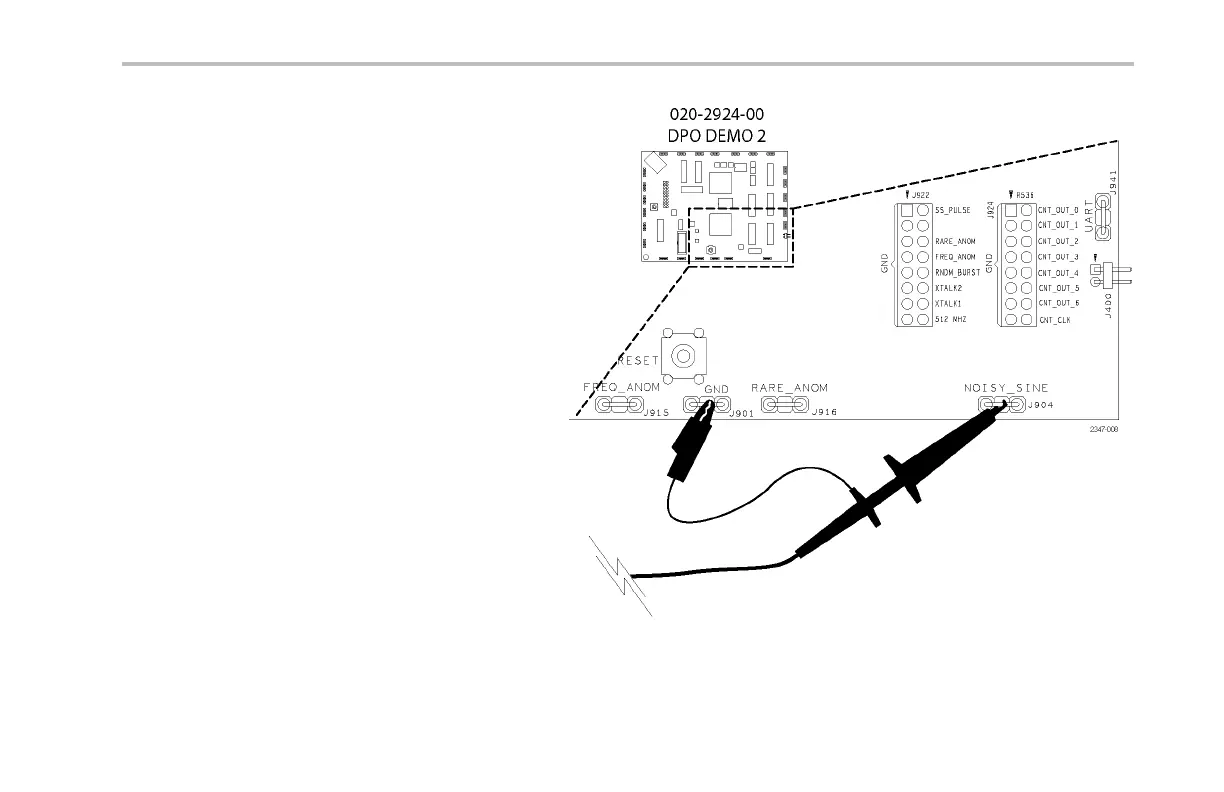

1. Attach a P2221 probe to channel 1 on the
MSO/DPO2000 oscilloscope. Then attach the
probe to one of the GND points and to the
Noisy Sine signal on the Demo 2 board.
Demo 2 Board Instruction Manua l 71
