Acquisition

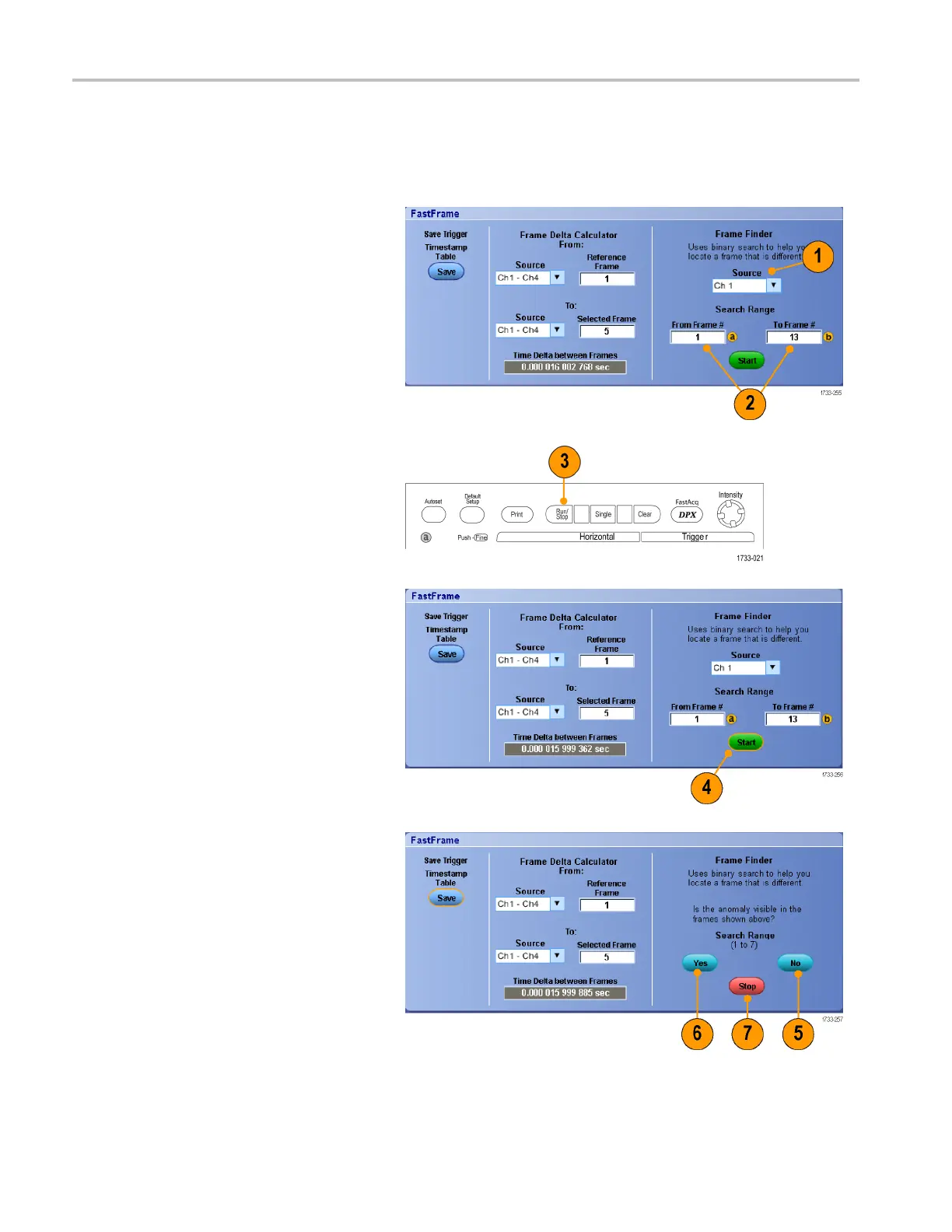

Using FastFrame Frame Finder
Frame finder allows you to find a FastFrame frame that is different from other frames.
1. Select the source of the FastFrame
frames.
2. Set the Search Range by entering the
From Frame # and the To Frame #.
3. Push Run/Stop to stop acquisitions.
4. Push Start to start the search.
Frame Finder searches for and displays a
different frame.
5. If the anomaly you are looking for is not
in the displayed frame, push No.Frame
Finder searches for another different
frame.
6. Iftheanomalyyouarelookingforisin
the displayed frame, push Yes.
7. If you are done searching, push Stop.
42 DPO7000 Series and DPO /DS A70000/B Series Quick Start User Manual
