MyScope

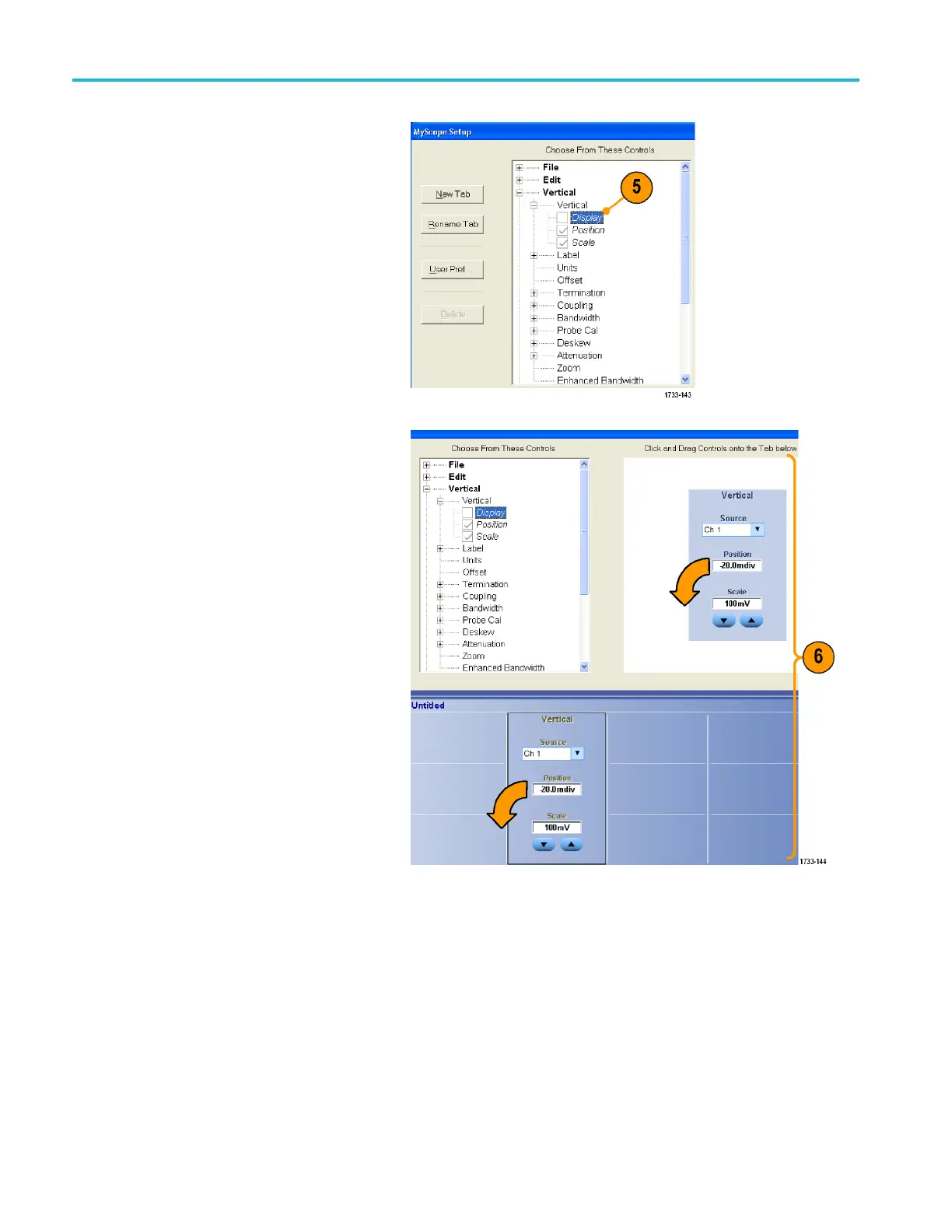

5. Clear the check boxes to remove any

components that you do not want

included in th

e control.

6. Click and drag the c ontrol to your

MyScope co

ntrol window. The control

will snap to the nearest grid location

when you release the mouse. Change

the place

ment of the control in your

MyScope control window by clicking and

dragging.

148 MSO/DPO70000DX, MSO/DPO70000C, DPO7000C, and MSO/DPO 5000B Series U ser M anual
