Saving and recal

ling information

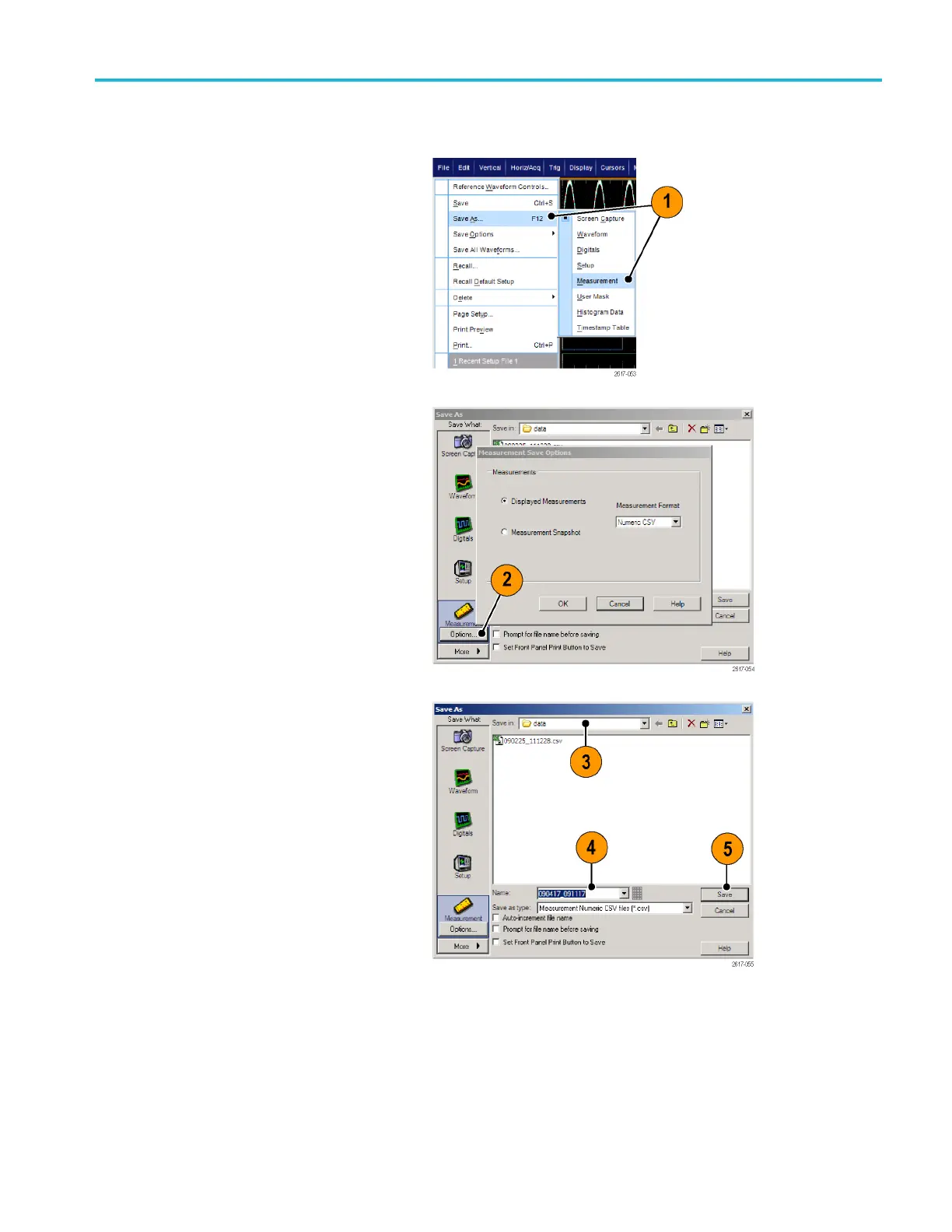

Saving measurements

1. Select File > S

ave or Save As >

Measurement....

2. Click Options... to specify Displayed

Measurements, Measurement Snapshot,

or Measurement Format;otherwise,skip

to step 3.

3. Select the location to save the

measu

rement.

4. Type i

n a name for the measurement,

and then select a ﬁle type.

5. Click S ave.

MSO/DPO70000DX, MSO/DPO70000C, DPO7000C, and MSO/DPO5000B Series User Manual 159
