Acquisition
Set up bus display
You can set the bus style and decoding. You can use digital channels in bus de finitions on MSO Series instruments only.

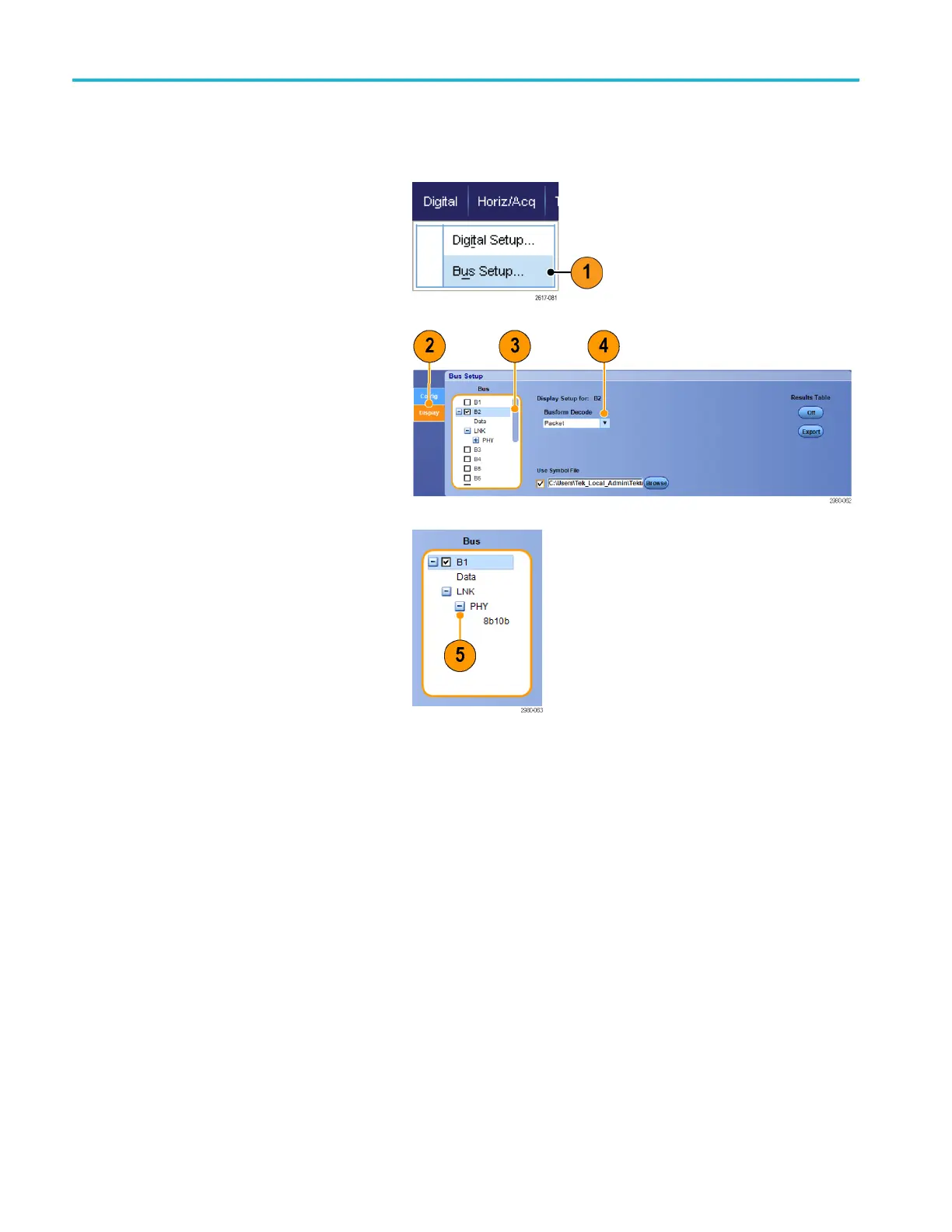

1. Select Digital > Bu s Setup.
2. Select the Display tab.
3. To select the bus, scroll to display the
bus, and the
n select the bus.
4. Select the
decoding from the bus
decoding list.
See the online help for information on the
Results Ta
ble.
5. Click a + box to expand (display
additional) the views, or click a - box to
collaps
e(remove)views.
58 MSO/DPO70000DX, MSO/DPO70000C, DPO7000C, and MSO/DPO 5000B Series U ser M anual
