Display a wavefo

Hide waveforms in the zoomed window

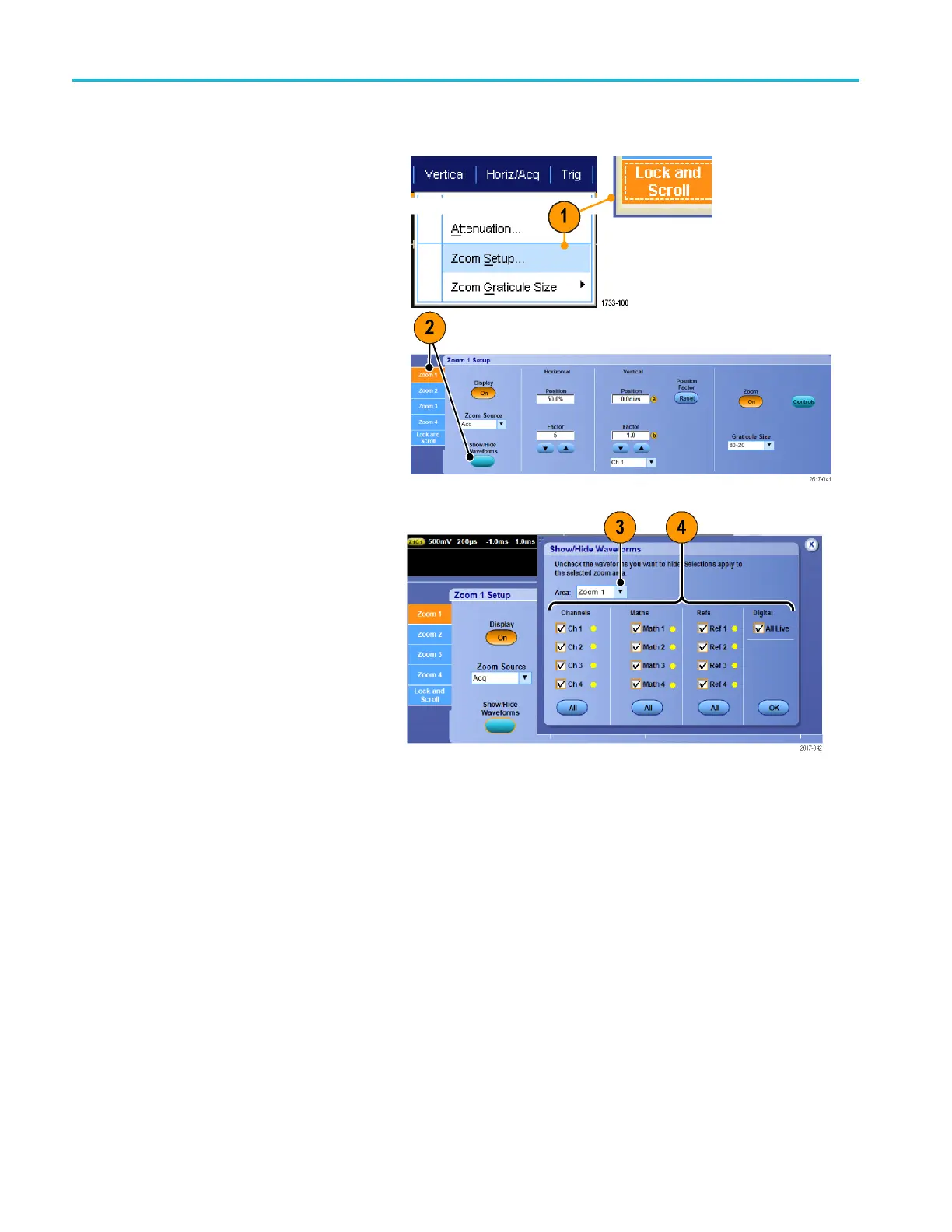

1. To hide or view

waveforms, select Zoom

Setup... from either the Vertical or

Horiz/Acq menu.

2. Select a Zo om tab, and then press

Show/Hide Wa

veforms.

3. Select the zoomed area that contains

the waveform you want to show or hide.

4. Uncheck the channel, math, reference,

or digital waveform you want to hide.

Digital channels are only a vailable on MSO

Series instruments.

104 MSO/DPO70000DX, MSO/DPO70000C, DPO7000C, and MSO/DPO 5000B Series U ser M anual
