Application exa

mples

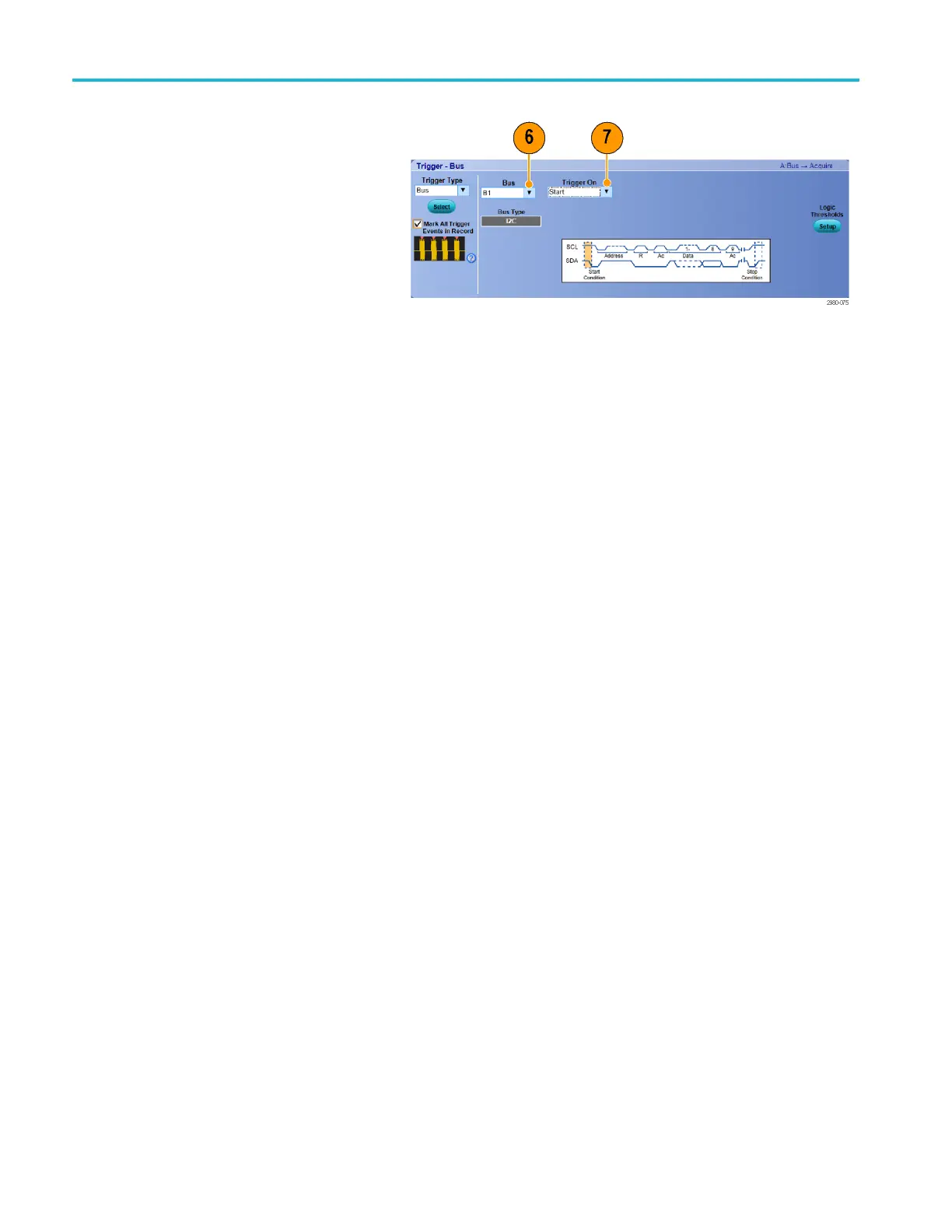

6. Select the bus you set up.

7. Select Trigger On to select the desired

trigger on feature.

8. Depending on your Trigger On selection,

you may need to make additional

selections.

174 MSO/DPO70000DX, MSO/DPO70000C, DPO7000C, and MSO/DPO 5000B Series U ser M anual
