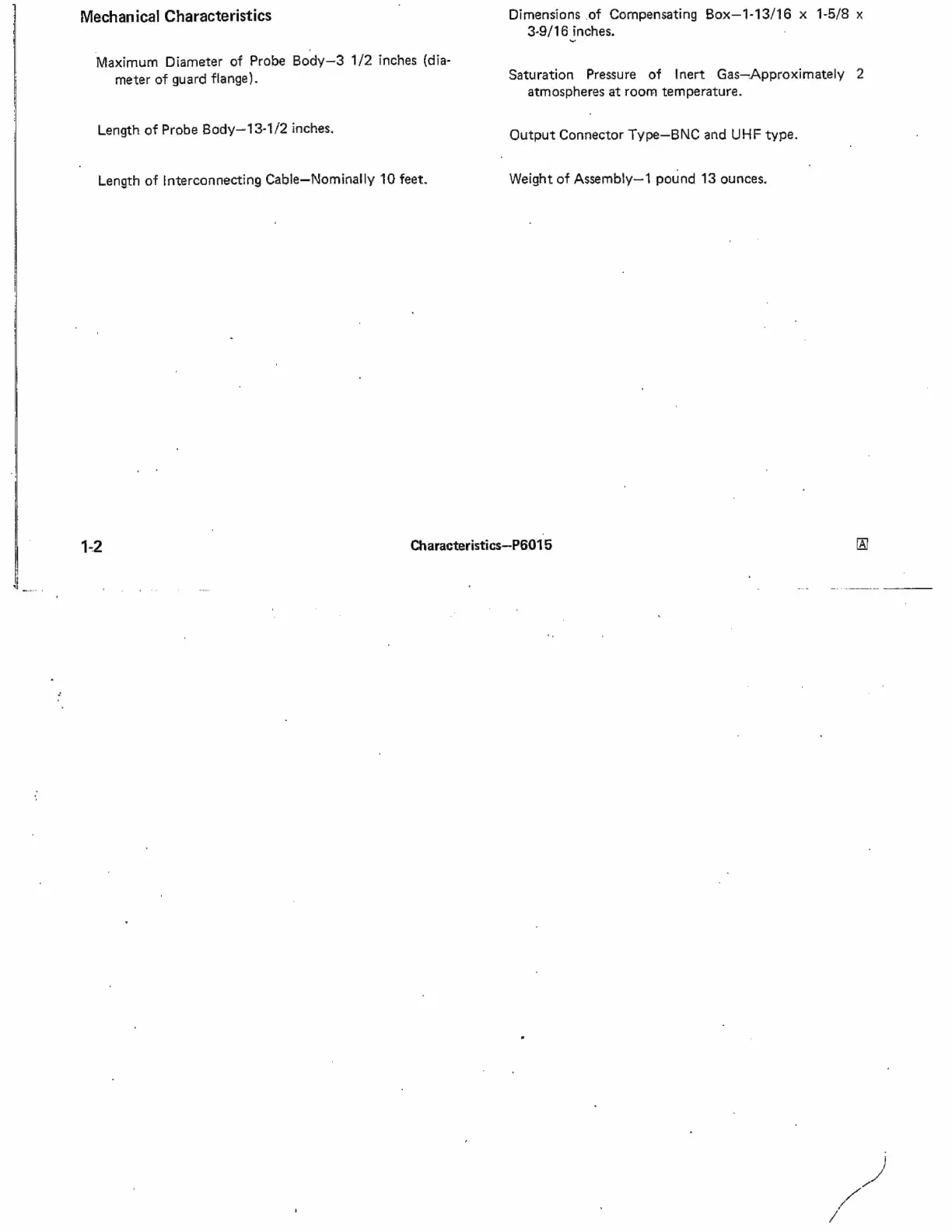

Mechanical
Characteristics
Dimensions
of
Compensating
Box—1-13/16
x
1-5/8
x
3-9/1
6
inches.
l
Maximum
Diameter
of
Probe
Body—3
1/2
inches
(dia-
meter
of
guard
flange).
Length
of
Probe
Body—13-1/2
inches.
Length
of
Interconnecting
Cable—Nominally
10
feet.
Saturation
Pressure
of
Inert
Gas—Approximately
2
atmospheres
at
room
temperature.
Output
Connector
Type—BNC
and
UHF
type.
Weight
of
Assembly—1
pound
13
ounces.
Characteristics—P6015
