Tektronix PG 508 - Page 114

TM 11-6625-2980-14

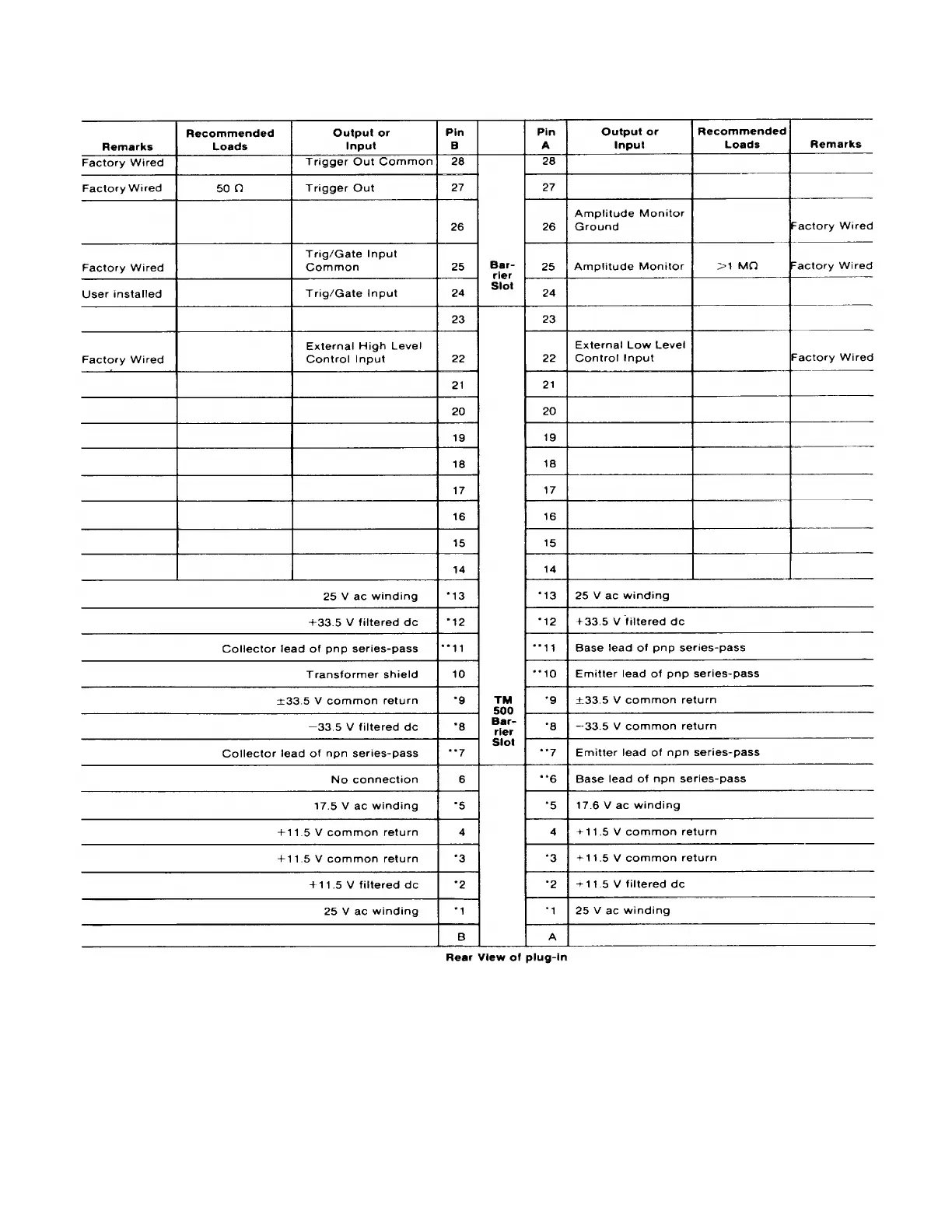

REAR INTERFACE CONNECTOR ASSIGNMENTS
Assignments listed for pin 1A - 13A and 1B - 13B are available in all power modules; however only those pins
marked with an asterisk (*) are used by the PG 508. Those connections marked with a double asterisk (**)
are the only connections used on the E board.
1-13/(1-14 blank)
