Troubleshooting

Table 3-8: Digital interface board LED status indicators (cont.)

LED Status Indication

DS4811 STATUS 1 (normally off)

DS911 +1.2 V OK

Diagnostics

This section describes how to use and interpret the embedded diagnostics interface

for both the Power on self tests (POST) and the extended diagnostics tests. These

tests determine whether there has been a module failure in the instrument.

Power on self tests

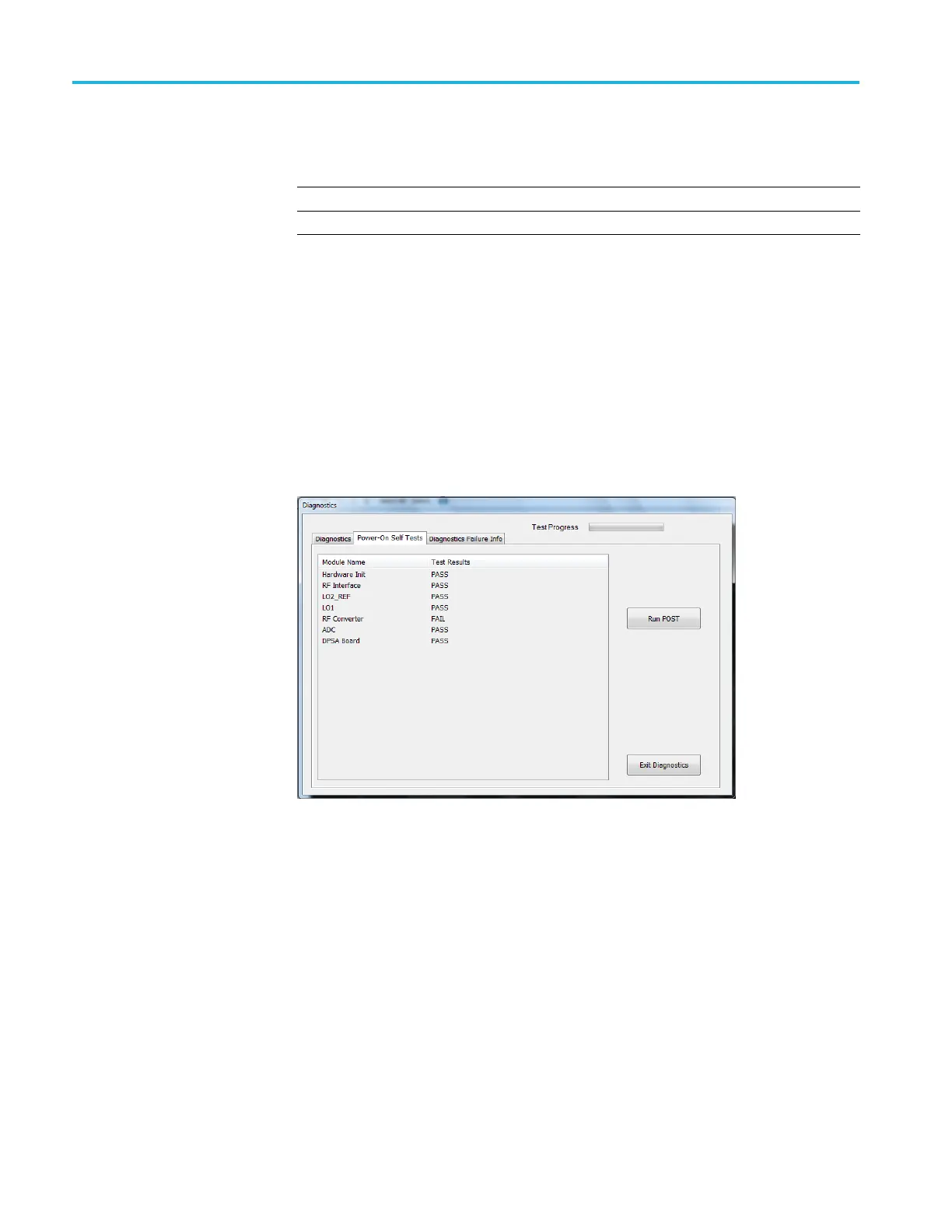

The instrument runs Power on self tests automatically every time the instrument is

powered up. If a failure is detected during this process, the instrument displays the

Power-On Self Tests tab of the Diagnostics window to list which module(s) failed.

Select the Diagnostics Failure Info tab in the Diagnostics window for more

information about failures.

3–20 RSA5100B Series Service Manual
