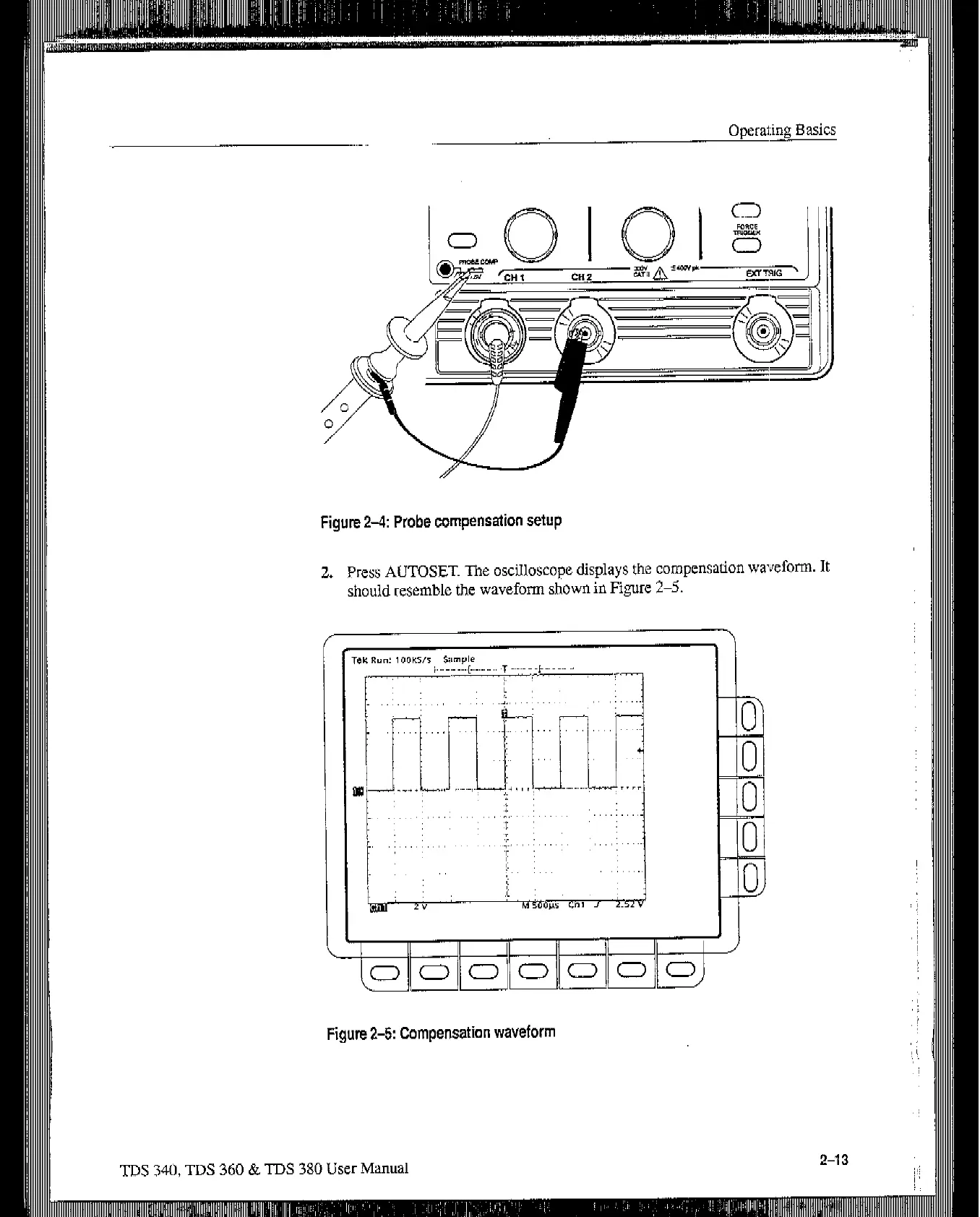

Figure 2-4: Probe compensation setup
2. Press AUTOSET. The oscilloscope displays the compensation waveform. It
should resemble the waveform
shown
in Figure 2-5.
I
I-1
II
II
II
II
II
0 0
0110 0110
0
Figure 2-5: Compensation waveform
TDS 340, TDS 360 & TDS 380 User Manual
2-I 3
