Command Descriptions

TDS Family Oscilloscope Programmer Manual

2–83

CURSOR2 specifies the second vertical bar cursor.

CURSOR:VBARS:SELECT CURSOR2

selects the second vertical bar cursor as the active cursor.

CURSOR:VBARS:SELECT?

returns CURSOR1 when the first vertical bar cursor is the active cursor.

CURSor:VBArs:UNIts

Sets or queries the units for the vertical bar cursors. This command is equivalent

to setting Time Units (Horiz Units in the TDS 4XXA) in the Cursor menu.

Cursor

CURSor:VBArs:DELTa?, CURSor:VBArs:POSITION<x>

CURSor:VBArs:UNIts { SECOnds | HERtz | LINE (with option 05)

| BASe (TDS 4XXA only) | INVert (TDS 4XXA only)}

CURSor:VBArs:UNIts?

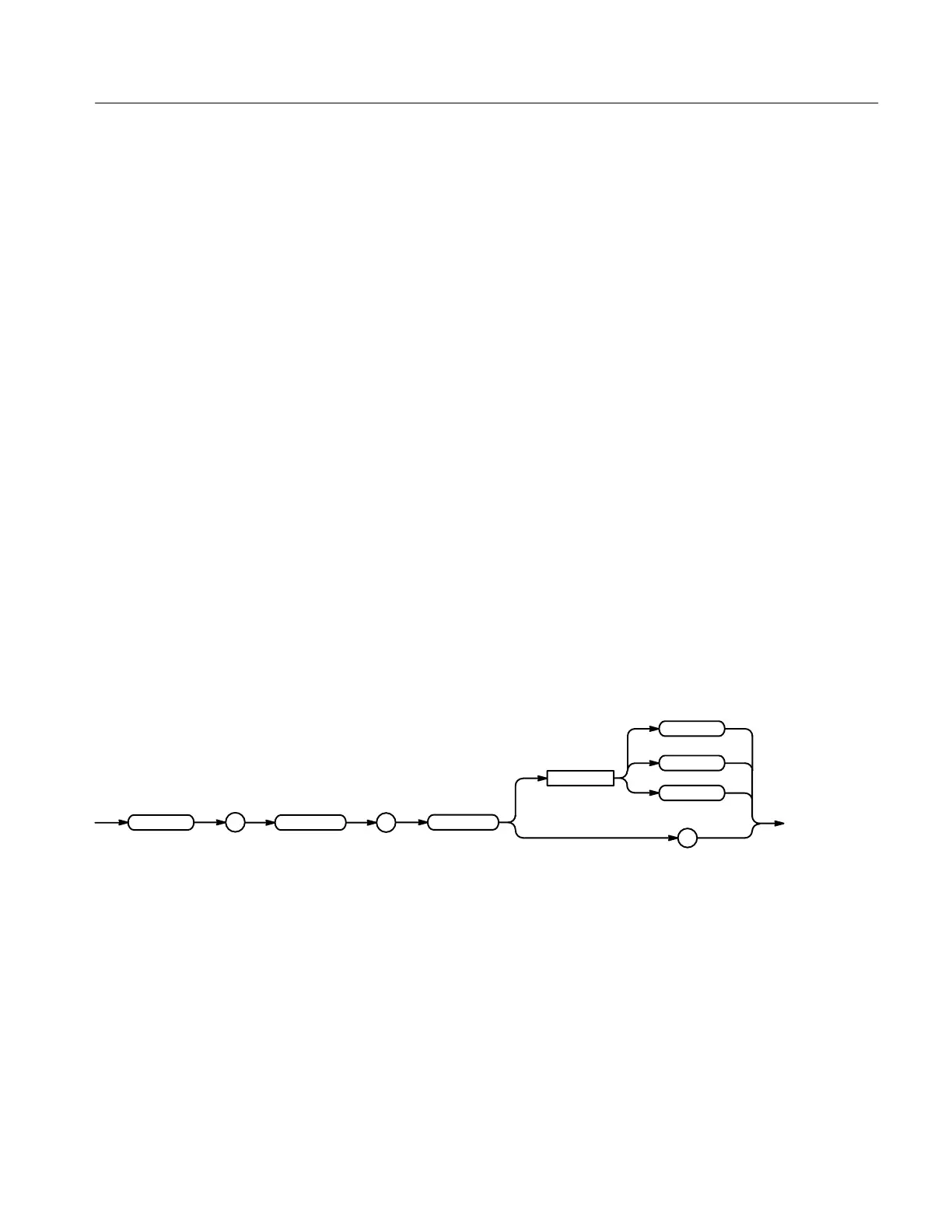

For the TDS 5XXA, 6XXA, & 7XXA:

CURSor

VBArs :

UNIts

LINE

HERtz

<Space>

SECOnds

For the TDS 4XXA:

Examples

Group

Related Commands

Syntax
