Command Descriptions

2–102

TDS Family Oscilloscope Programmer Manual

H *PSC 0

DIAg:STATE EXECUTE

executes all the diagnostic tests that have been selected.

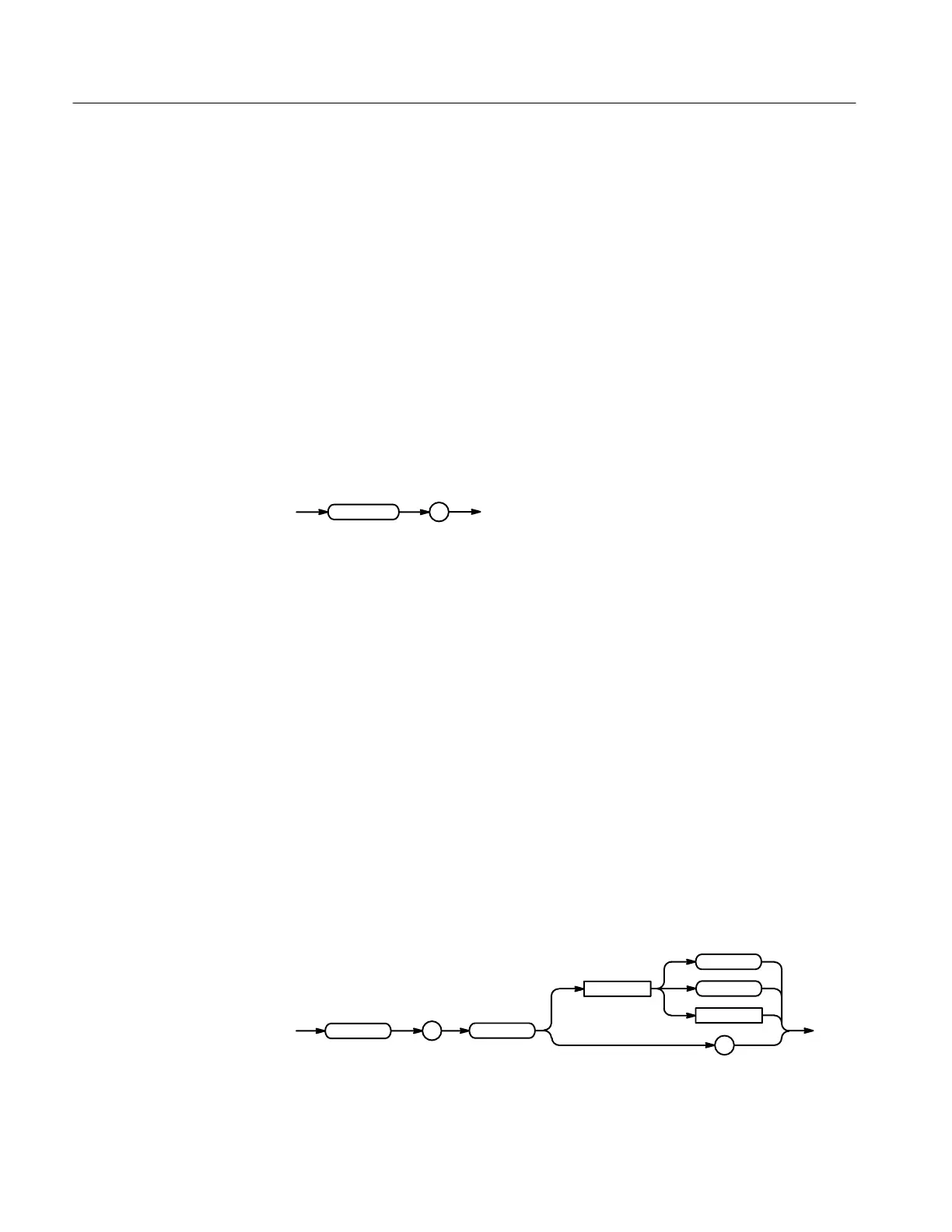

DISplay? (Query Only)

Returns the current display settings.

Display

DISplay?

DISplay

DISPLAY?

might return :DISPLAY:FORMAT YT;STYLE VECTORS;FILTER SINX;PERSISTĆ

ENCE 500.0E-3;GRATICULE FULL;TRIGT 1;INTENSITY:OVERALL 85;

WAVEFORM 70;TEXT 60;CONTRAST 150

DISplay:CLOCk

Controls the display of the date and time. This is equivalent to setting the

Display Date/Time in the Readout Options side menu. The query form returns

an ON (1) or an OFF (0).

Display

DISplay:CLOCk { OFF | ON | <NR1> }

DISplay:CLOCk?

DISplay

CLOCk

<Space>

<NR1>

OFF

Examples

Group

Syntax

Examples

Group

Syntax
