Command Descriptions

2–114

TDS Family Oscilloscope Programmer Manual

DISplay:INStavu:STYle

TDS 7XXA Only

Selects how the data is displayed with InstaVu.

Display

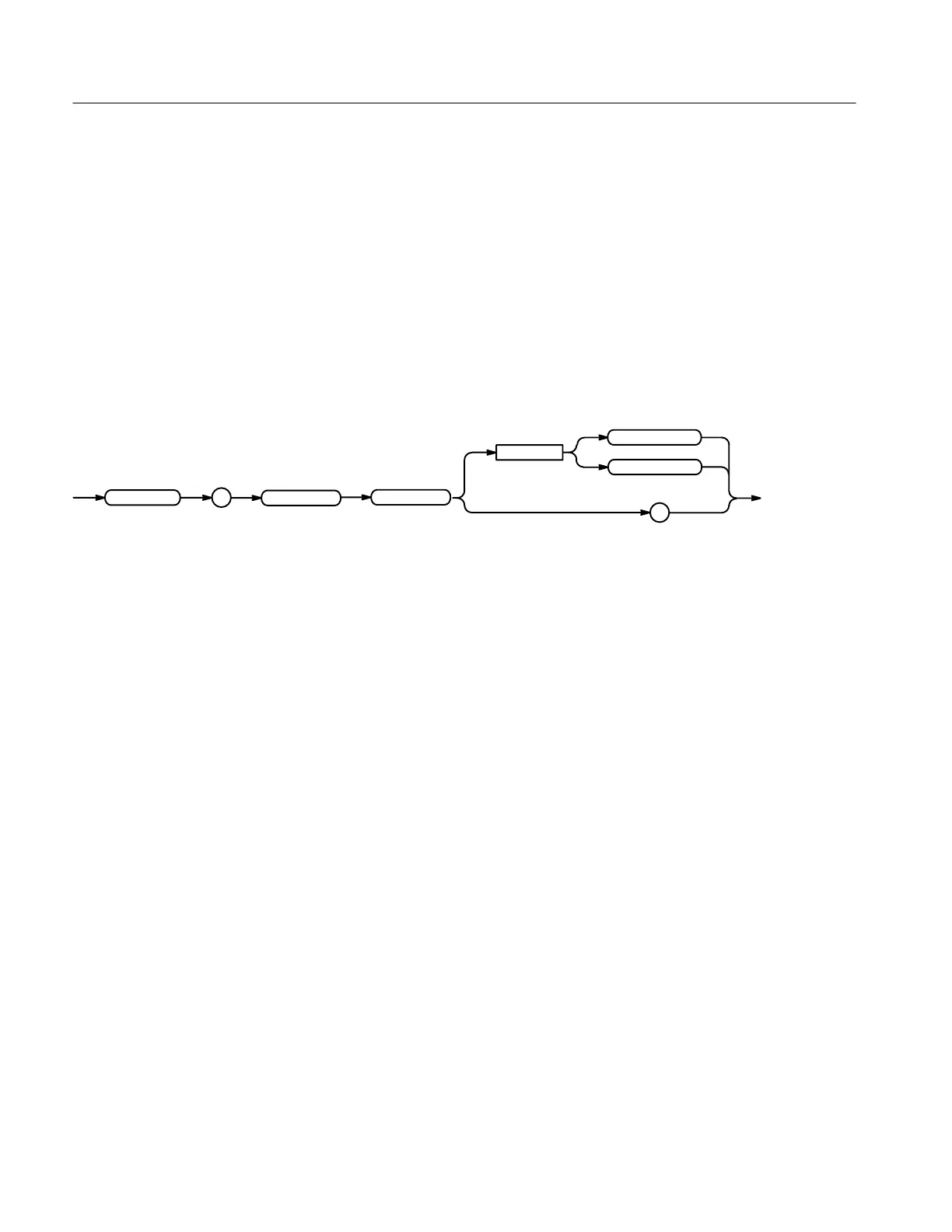

DISplay:INStavu:STYle { DOTs | VECtors }

DISplay:INStavu:STYle?

INStavu

<Space>

DOTs

DISplay

VECtors

STYle

DOTs displays individual data points.

VECtors connects adjacent data points. Old points are immediately replaced by

new ones.

DISPLAY:INSTAVU:STYLE?

might return DOTS indicating that the display shows individual waveform data

points.

DISplay:INStavu:VARpersist

TDS 7XXA Only

Sets the length of time that data points are displayed when DISplay:INSta-

vu:PERSistence is set to VARpersist. This affects the display only.

Display

DISplay:INStavu:PERSistence

DISplay:INStavu:VARpersist <NR3>

DISplay:INStavu:VARpersist?

Group

Syntax

Arguments

Examples

Group

Related Commands

Syntax
