Command Descriptions

2–116

TDS Family Oscilloscope Programmer Manual

DISplay:INTENSITy:CONTRast?

DISplay :

CONTRast

INTENSITy

<NR1> ranges from 100 to 250 percent.

DISPLAY:INTENSITY:CONTRAST 140

sets the intensity of the intensified portion of a waveform.

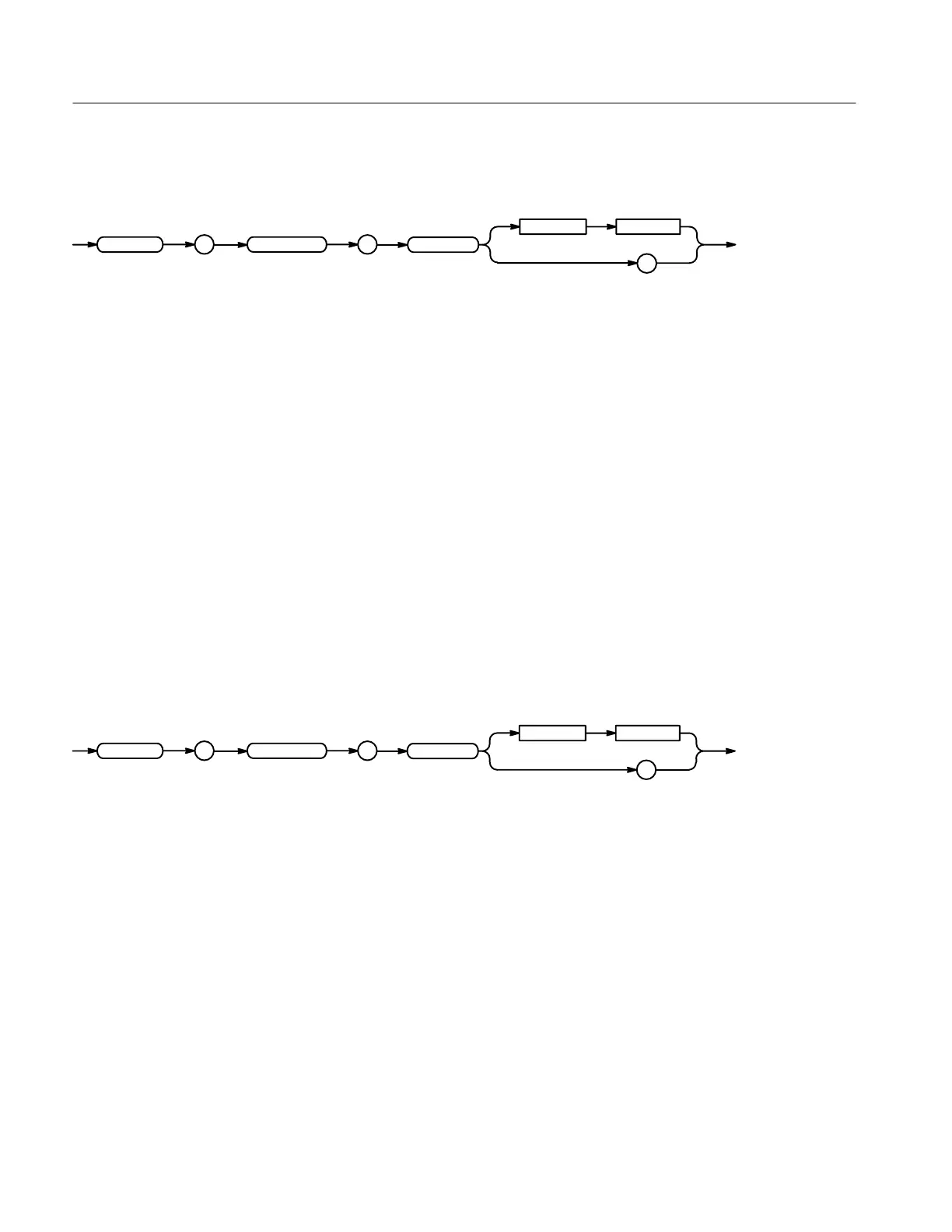

DISplay:INTENSITy:OVERAll

TDS 4X0A, 5X0A, & 6X0A Only

Sets the intensity of the entire display. This command is equivalent to setting

Overall in the Display Intensity side menu.

Display

DISplay:INTENSITy:OVERAll <NR1>

DISplay:INTENSITy:OVERAll?

OVERAll

DISplay :

INTENSITy

<NR1> ranges from 20 to 100 percent.

DISPLAY:INTENSITY:OVERALL 50

sets the intensity of the display to the middle of the range.

DISPLAY:INTENSITY:OVERALL?

might return 75 as the overall display intensity.

Arguments

Examples

Group

Syntax

Arguments

Examples
