Command Descriptions

2–246

TDS Family Oscilloscope Programmer Manual

TRIGger:MAIn:LOGIc:STATE:WHEn

TDS 5XXA, 6XXA, & 7XXA Only

Sets or queries the main logic state trigger.

Trigger

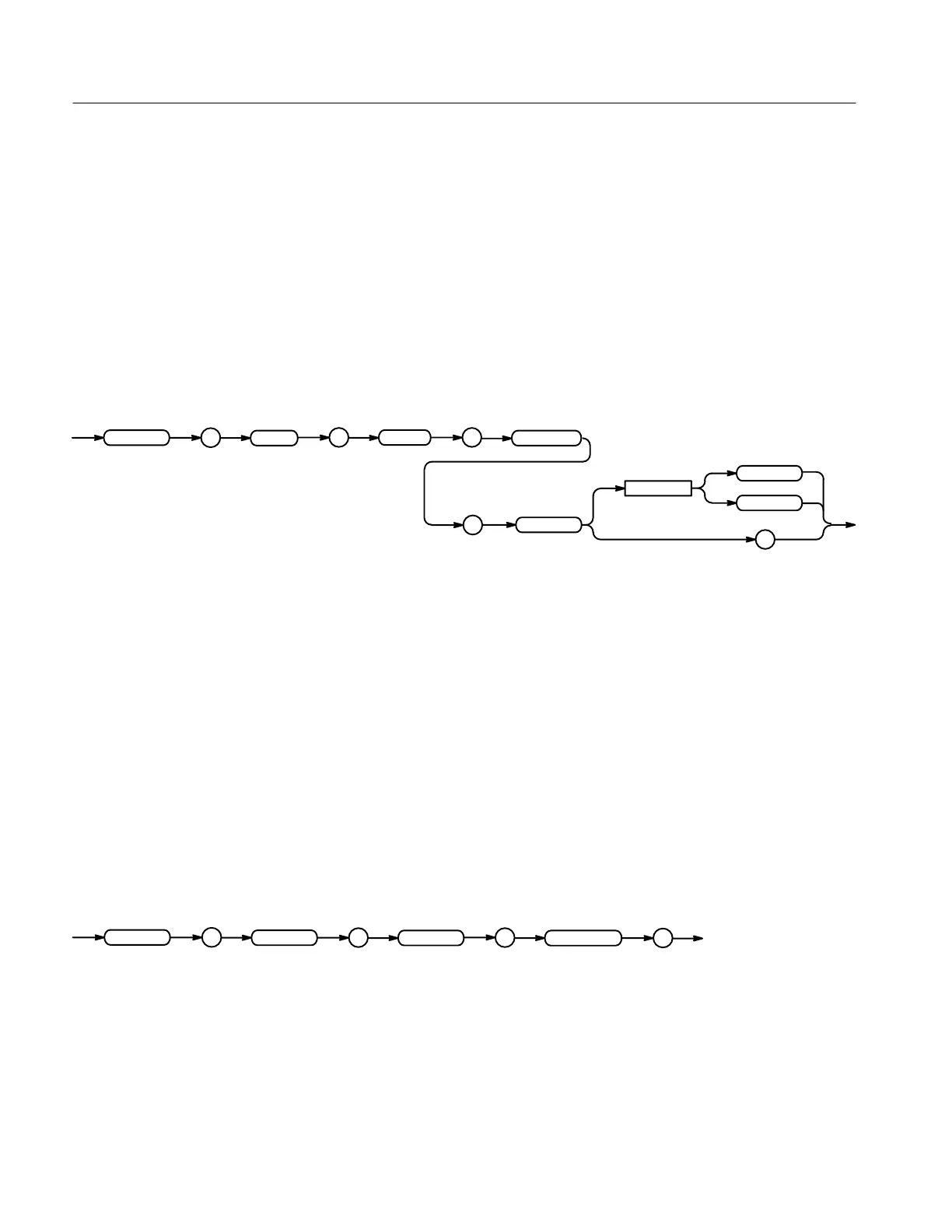

TRIGger:MAIn:LOGIc:STATE:WHEn { TRUe | FALSe }

TRIGger:MAIn:LOGIc:STATE:WHEn ?

MAIn

TRIGger

LOGIc ::

STATE

<Space>

TRUe

FALSe

WHEn

TRUe specifies the trigger to occur when the condition is met on the fourth

channel and the pattern of the first three channels are at the desired states.

FALSe

TRIGger:MAIn:LOGIc:THReshold? (Query Only)

TDS 5XXA, 6XXA, & 7XXA Only

Returns the main logic trigger threshold voltage for all channels.

Trigger

TRIGger:MAIn:LOGIc:THReshold?

THReshold

TRIGger :

LOGIc

MAIn :

TRIGGER:MAIN:LOGIC:THRESHOLD?

might return :TRIGGER:MAIN:LOGIC:THRESHOLD:CH1 0;CH2 0;

CH3 0;CH4 0

Group

Syntax

Arguments

Group

Syntax

Examples
