TDS Family Oscilloscope Programmer Manual

ZOOm:VERTical:POSition

Sets or queries the vertical position of waveforms.

Zoom

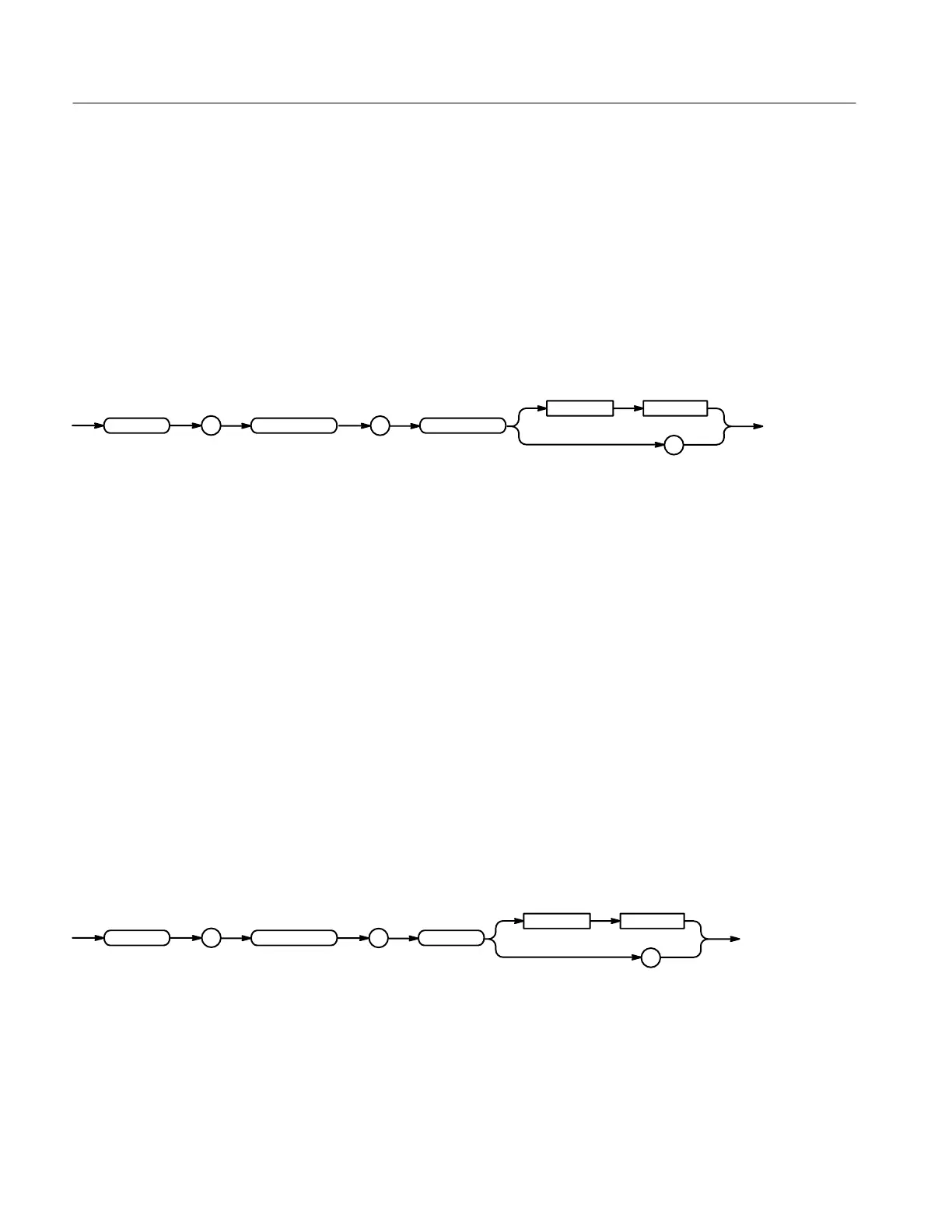

ZOOm:VERTical:POSition <NR3>

ZOOm:VERTical:POSition?

ZOOm :

VERTical POSition

<NR3> is the vertical position in divisions.

ZOOM:VERTICAL:POSITION?

might return :ZOOM:VERTICAL:POSITION 0.0E+0

ZOOm:VERTical:SCAle

Sets or queries the vertical expansion and compression factor.

Zoom

ACQuire:MODe

ZOOm:VERTical:SCAle <NR3>

ZOOm:VERTical:SCAle?

ZOOm :

VERTical SCAle

<NR3> is the amount of vertical expansion or compression.

ZOOM:VERTICAL:SCALE?

might return :ZOOM:VERTICAL:SCALE 2.0E+0

Group

Syntax

Arguments

Examples

Group

Related Commands

Syntax

Arguments

Examples
