Use the Measure menu to remove measurements you no longer want. To remove
a measurement individually (you can also remove them, as a group), do the
following step:
1. TDS 600B models: Press MEASURE ➞ Remove Measrmnt (main) ➞
Measurement 1, Measurement 2, and Measurement 4 (side) to remove
those measurements. Leave the rise time measurement displayed.
2. TDS 500D and TDS 700D models: Press MEASURE ➞ Measure
(pop-up) ➞ Remove Measrmnt (main) ➞ Measurement 1, Measure-
ment 2, and Measurement 4 (side) to remove those measurements. Leave
the rise time measurement displayed.
Press to Remove Menus From Screen

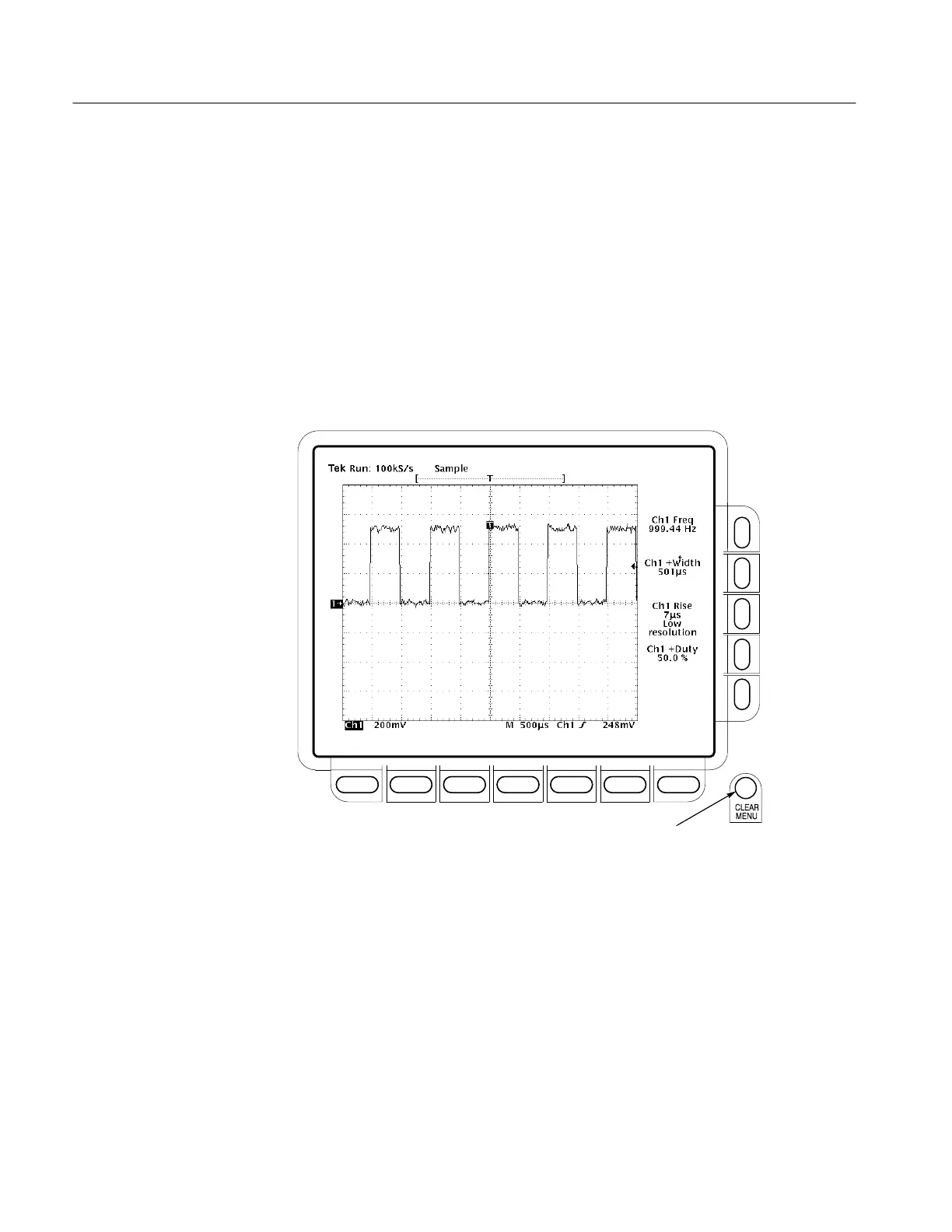

Figure 2–15: Four Simultaneous Measurement Readouts
By default, the measurement system will use the 10% and 90% levels of the
waveform for taking the rise time measurement. You can change these values to
other percentages or change them to absolute voltage levels.
Remove Measurement
Readouts
Change the Measurement
Reference Levels
