Command Descriptions
TDS Family Oscilloscope Programmer Manual
2–151
Horizontal
HORizontal:DELay:SCAle, HORizontal:DELay:SECdiv, HORizon-
tal:MAIn:SECdiv

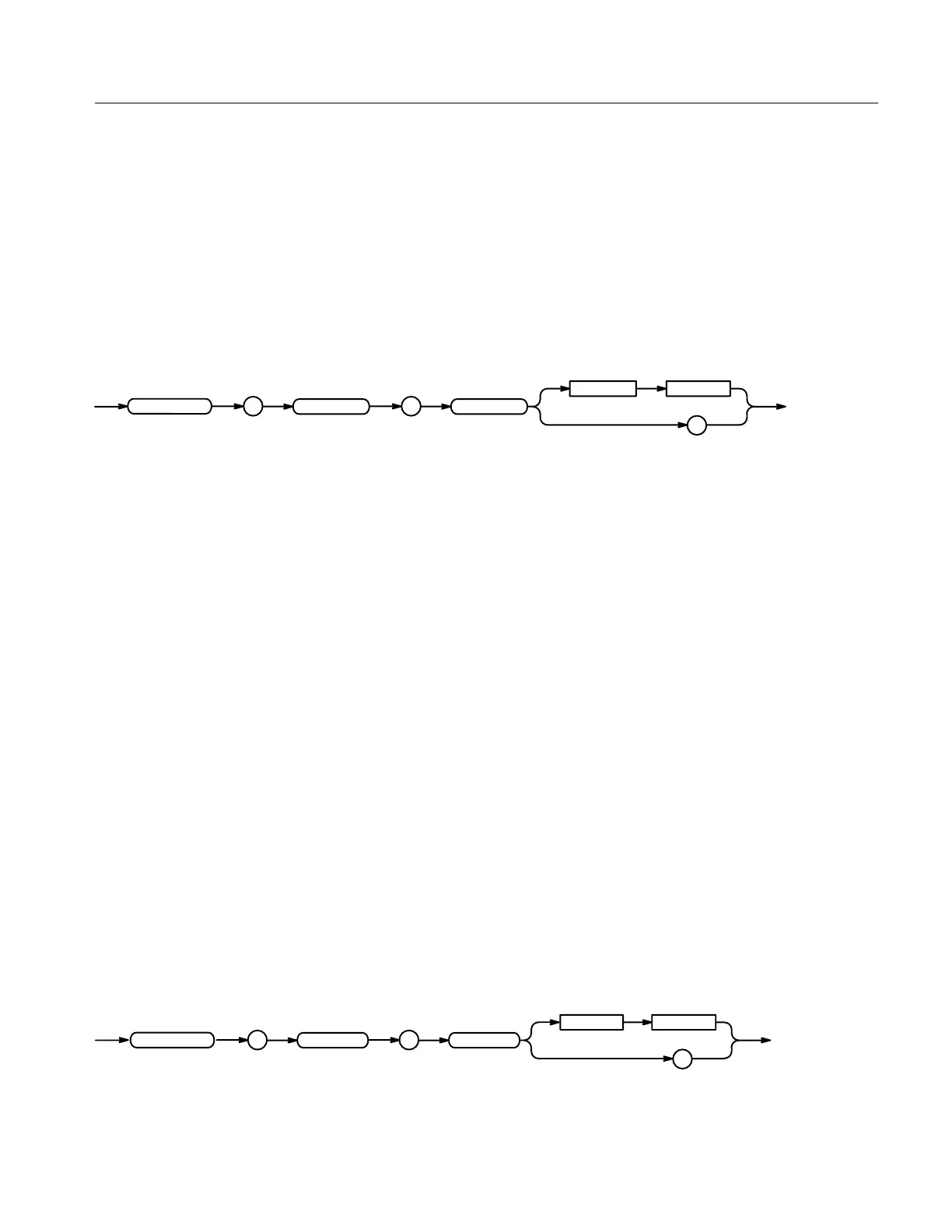

HORizontal:MAIn:SCAle <NR3>
HORizontal:MAIn:SCAle?
:
SCAle
HORizontal
:
MAIn
?
<Space> <NR3>
<NR3> is the time per division. For the TDS 6XXA series (except the 684A), the
range is 5 s to 500 ps in a 1–2.5–5 sequence). For the TDS 5XXA series, 684A,
and 7XXA, the range is 10 s to 500 ps (or 200 ps on the TDS 784A), in a 1–2–5
sequence. For the TDS 4XXA series, the range is 20 s to 1 ns.
HORIZONTAL:MAIN:SCALE 2E-6
sets the main scale to 2 ms per division.
HORizontal:MAIn:SECdiv
Sets the time per division for the main time base. This command is identical to
the HORizontal:MAIn:SCAle command. It is provided to maintain program
compatibility with some older models of Tektronix digitizing oscilloscopes.
Horizontal
HORizontal:DELay:SCAle, HORizontal:DELay:SECdiv, HORizon-
tal:MAIn:SCAle
HORizontal:MAIn:SECdiv <NR3>
HORizontal:MAIn:SECdiv?
HORizontal :
SECdiv
:
MAIn
?
<Space> <NR3>
Group
Related Commands
Syntax
Arguments
Examples
Group
Related Commands
Syntax
