Command Descriptions
2–158
TDS Family Oscilloscope Programmer Manual
LIMit:BELl?
returns either 0 or 1, indicating whether the bell is to ring when any waveform
data exceeds the limits specified in the limit test.
LIMit:COMPARE:CH<x>
Sets or queries the template against which to compare the waveform acquired
through the specified channel. The template can be a waveform saved in any of
the reference locations REF1 through REF4, or none.
Limit Test
CURve, LIMit:COMPARE:MATH<x>, LIMit:TEMPLate, LIMit:TEM-
PLate:DESTination, LIMit:TEMPLate:SOUrce, WFMPre

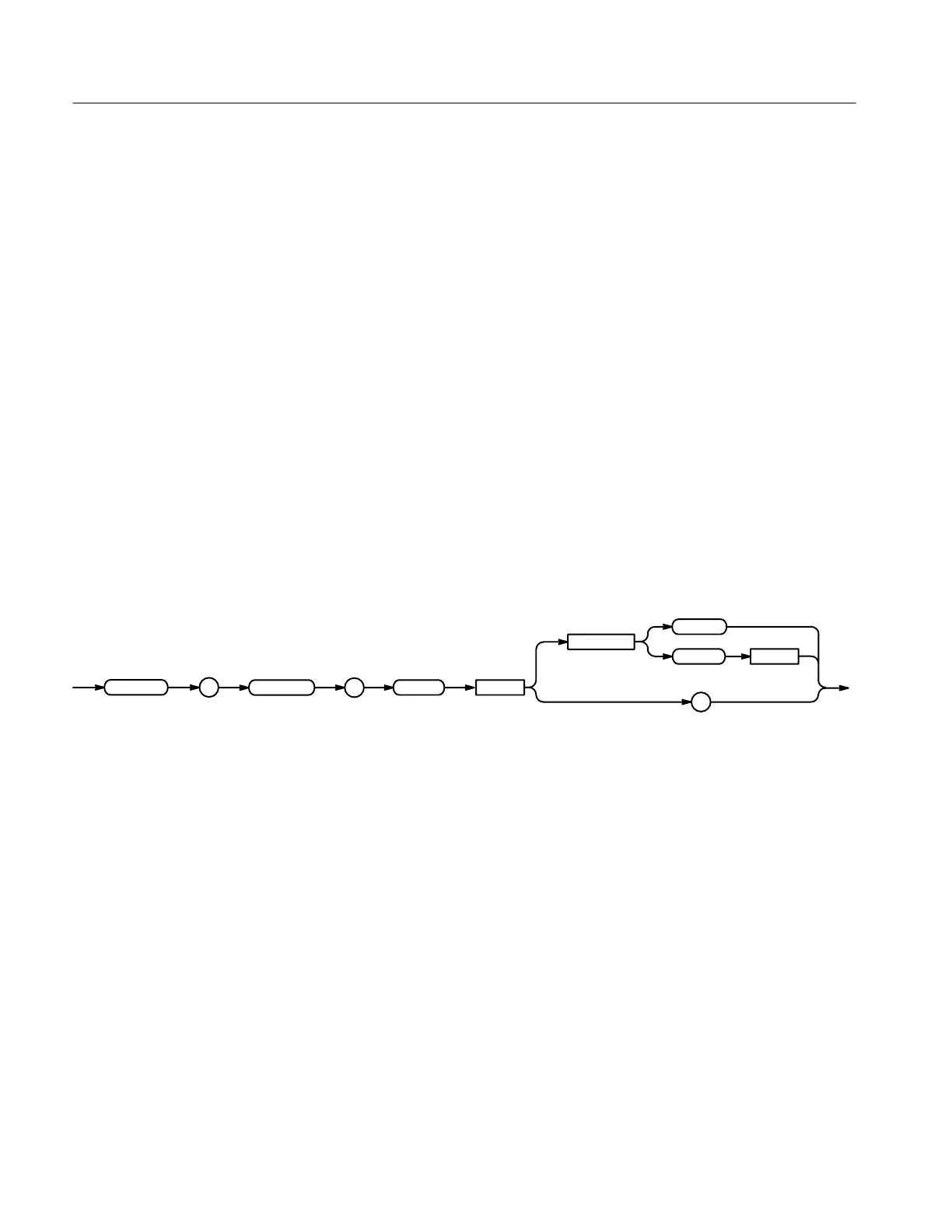

LIMit:COMPARE:CH<x> { NONe | REF<x> }
LIMit:COMPARE:CH<x>?
COMPARE
:
:
CH
<x>
<Space>
?
NONe
REF <x>
LIMit
REF<x> is a reference waveform.
NONe specifies that no template testing is to be done for the specified channel.
LIMIT:COMPARE:CH1 REF1
specifies REF1 as the template waveform against which to compare waveforms
acquired using CH1.
LIMIT:COMPARE:CH2?
might return LIMIT:COMPARE:CH2 REF4, indicating that waveforms acquired
using CH2 will be compared to the template waveform stored in REF4.
Group
Related Commands
Syntax
Arguments
Examples
