Command Descriptions

2–304

TDS Family Oscilloscope Programmer Manual

ZOOm:DUAl:OFFSet?

ZOOm

DUAl OFFSet

<NR3> is the offset time in seconds.

ZOOM:DUAL:OFFSET 100.0E-6

adjusts the offset time in seconds between the centers of the main and second

zoom boxes.

ZOOm:GRAticule

TDS 4XXA & 7XXA Only

Selects between the upper and lower graticule for use by the zoom preview state.

If you select the lower graticule, horizontal and vertical knob changes will affect

the underlying acquisition system. If you select the upper graticule, horizontal

and vertical knob changes will affect the zoom factors.

Zoom

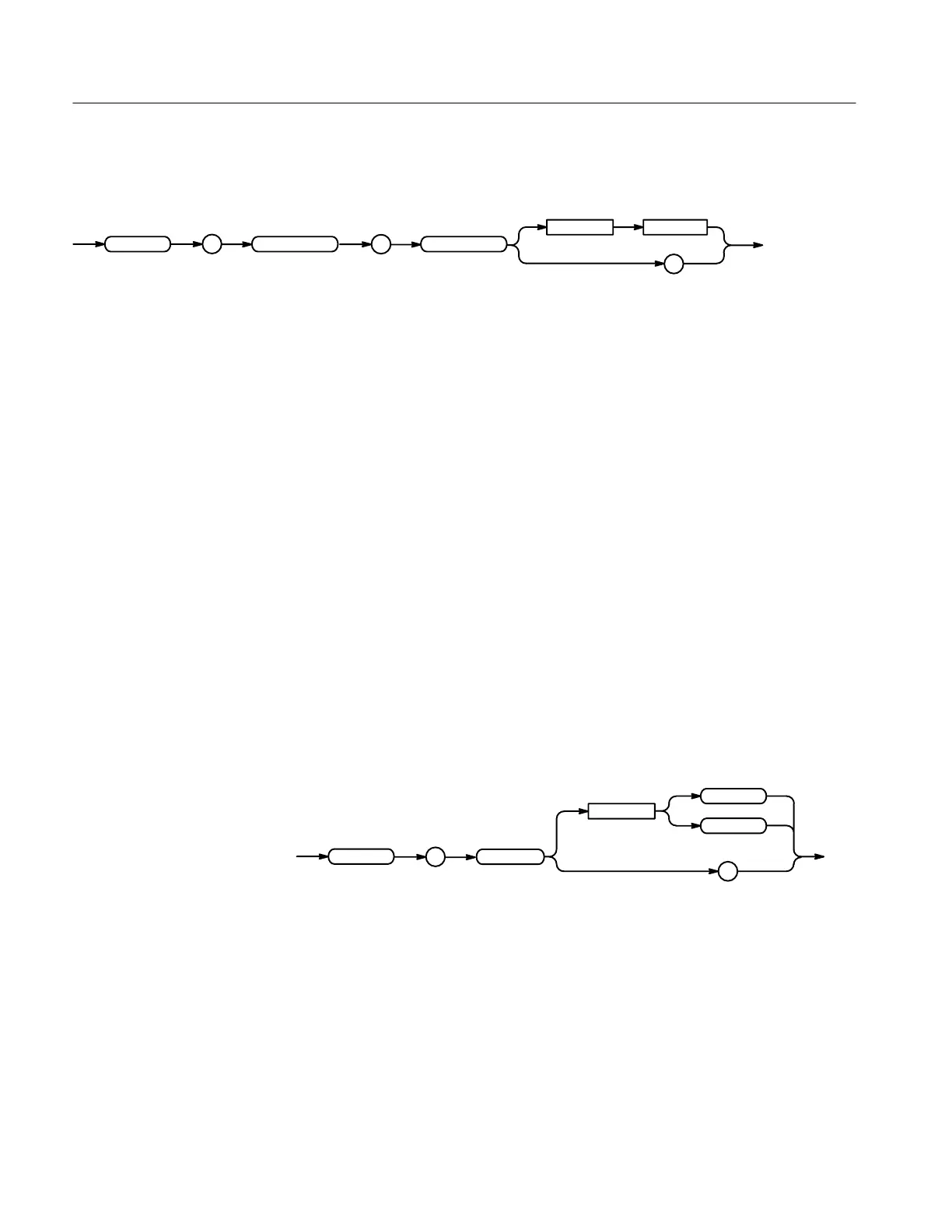

ZOOm:GRAticule { LOWEr | UPPer }

ZOOm:GRAticule?

<Space>

LOWEr

GRAticule

UPPer

ZOOm

LOWEr selects the lower graticule.

UPPer selects the upper graticule.

ZOOM:GRATICULE?

might return UPPER, indicating that the upper graticule is selected.

Arguments

Examples

Group

Syntax

Arguments

Examples
