Command Descriptions

2–72

TDS Family Oscilloscope Programmer Manual

CURSor:HBArs:POSITION<x>Pcnt?

CURSor

HBArs :

POSITION

<x>

Pcnt

<NR3> has a range of 0 to 100 (%). It specifies the cursor position relative to the

vertical range of the selected waveform.

CURSOR:HBARS:POSITION1PCNT?

might return 4.50 E+1, indicating cursor 1 is positioned at 45% of the vertical

range of the selected waveform.

CURSor:HBArs:SELect

Selects which horizontal bar cursor is active for front-panel control. The active

cursor will be displayed as a solid horizontal line and can be moved using the

front-panel general purpose knob when the cursor menu is active. The unselected

cursor will be displayed as a dashed horizontal line. This command is equivalent

to pressing the SELECT button on the front panel when the Cursor menu is

displayed.

Cursor

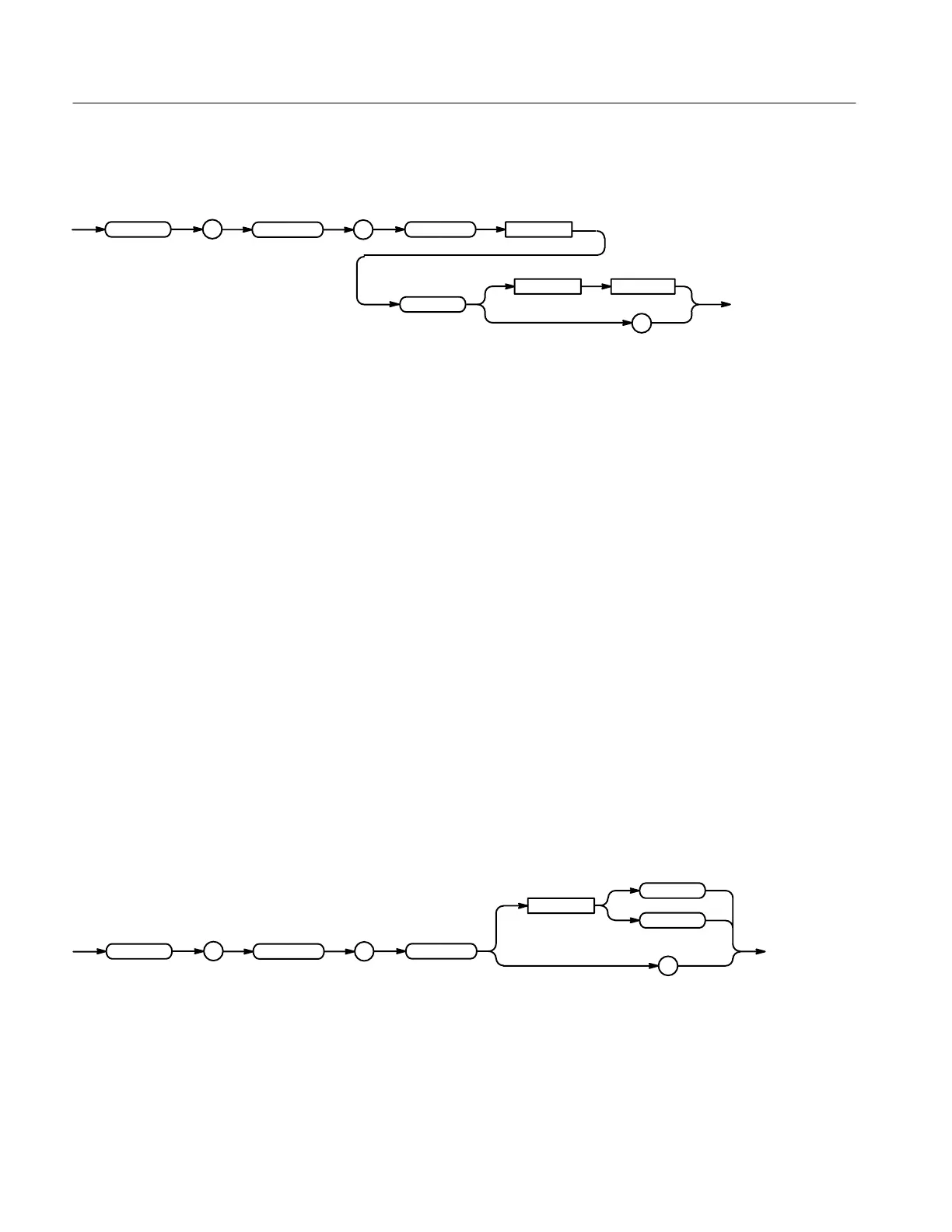

CURSor:HBArs:SELect { CURSOR1 | CURSOR2 }

CURSor:HBArs:SELect?

CURSor

HBArs

SELect

<Space>

CURSOR2

CURSOR1

CURSOR1 selects the first horizontal bar cursor.

CURSOR2 selects the second horizontal bar cursor.

Arguments

Examples

Group

Syntax

Arguments
