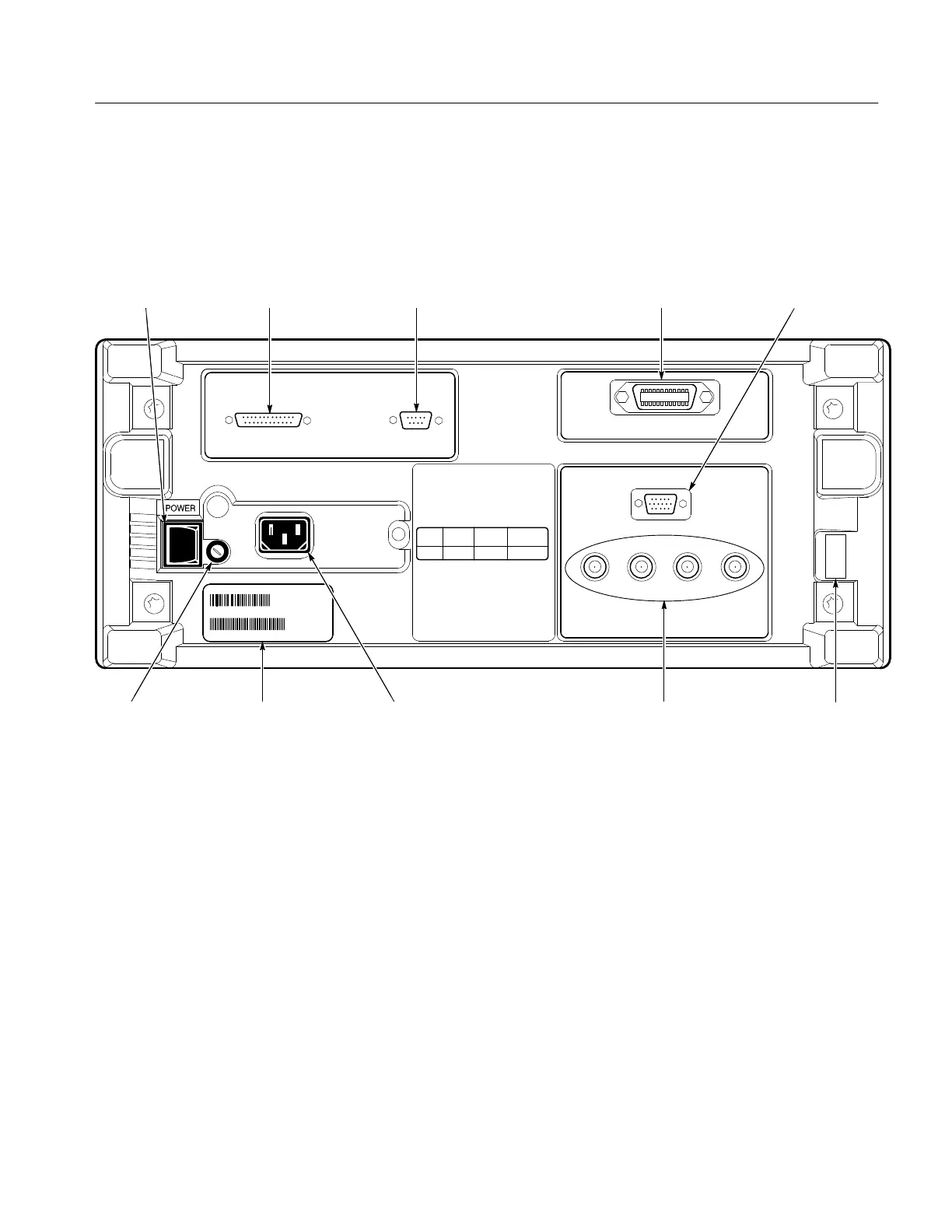

Rear Panel Map

Rear Panel Connectors Security Bracket

GPIB Connector,

page 3–134

Centronics Connector

Principal Power

Switch,

page 1–5

Serial Number

SIGNAL OUTPUT –

(Provides Analog Signal Output

from CH3 – or AX1 – @ 10 mV/div)

AUX TRIGGER INPUT –

(Provides Auxiliary Trigger Signal Input)

MAIN TRIGGER OUTPUT –

(Provides Main Trigger (TTL) Output)

DELAYED TRIGGER OUTPUT –

(Provides Delayed Trigger (TTL) Output)

RS-232 Connector

Fuse,

page 1–4

Power Connector,

page 1–4

VGA Output
