Performance Tests
TDS 500D, TDS 600C, TDS 700D & TDS 714L Performance Verification and Specifications
1–43
reference frequency of 10 MHz or less. See Figure 1–7.
For the optional setup using a leveled sine wave generator with a
leveling head, see Figure 1–8 and, if using this optional setup with the
example Tektronix SG 504, set the generator output to 6 MHz.
Oscilloscope
Sine Wave
Generator
Output

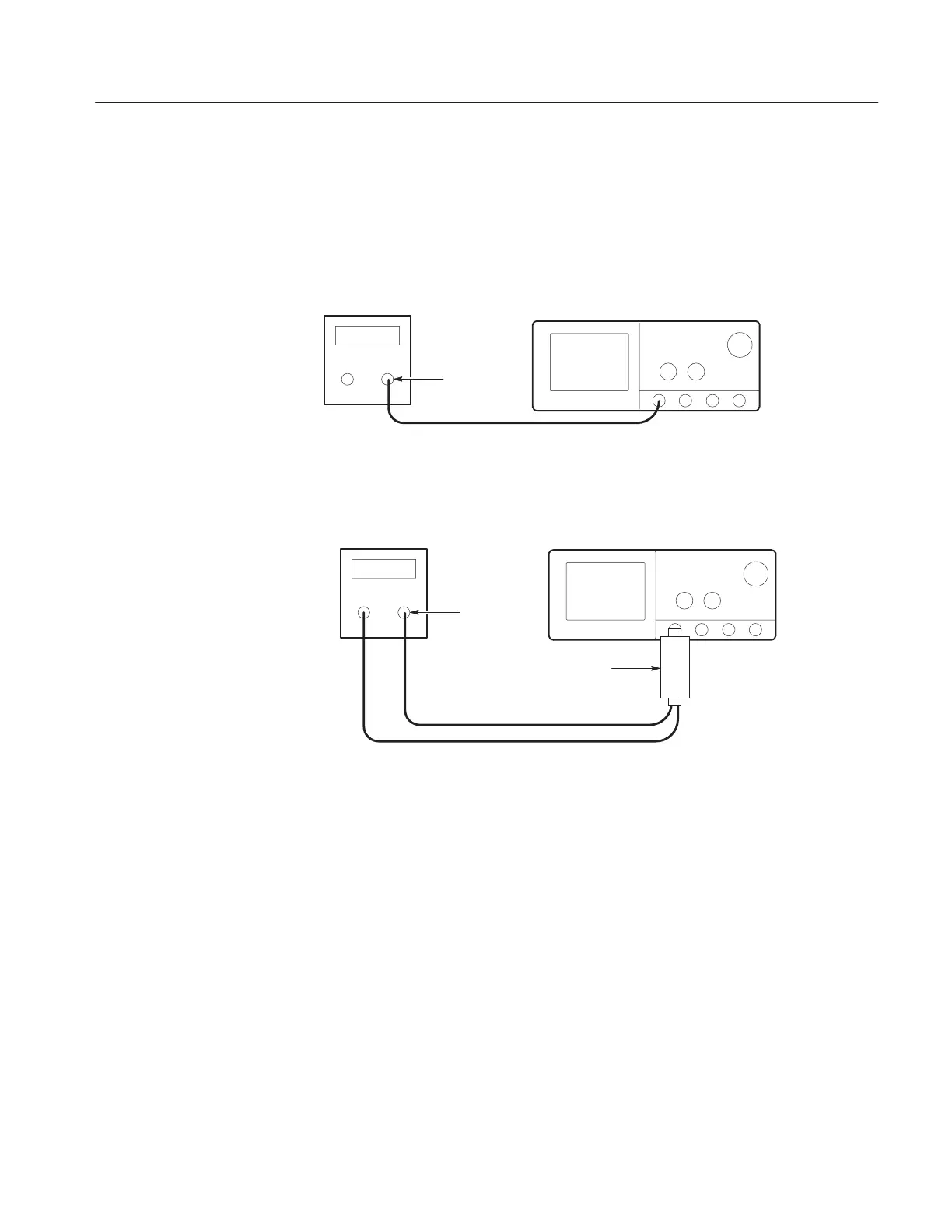

Figure 1–7: Initial test hookup
High Frequency Sine
Wave Generator
Oscilloscope
Output
Leveling head
Figure 1–8: Optional initial test hookup
2. Confirm the input channels are within limits for analog bandwidth: Do the
following substeps — test CH 1 first, skipping substeps a and b since CH 1
is already set up for testing from step 1.
a. Select an unchecked channel:
H Press WAVEFORM OFF to remove the channel just confirmed
from display.
H Press the front-panel button that corresponds to the channel you are
to confirm.
H Move the leveling output of the sine wave generator to the channel
you selected.
