Tektronix TDS 754D User Manual

Triggering on Waveforms
3–120
TDS 500D, TDS 600B, & TDS 700D User Manual
Time Delay
(From Delay Trig Menu)
Start Posttrigger Acquisition (Trigger
on nth Delayed Trigger Event)
Time Delay
(From Horiz Menu)
Time Delay
(From Delay Trig Menu)
Waiting for nth Event
(Where n=5)
Main Trigger Point
Start Posttrigger Acquisition
Main
Trigger
Source
Delayed Triggerable By Events
Main
Trigger
Source
Delayed
Trigger
Source
Start Posttrigger Acquisition
(First Trigger After Delay)
Delayed Trigger Waveform Record
Main
Trigger
Source
Delayed
Trigger
Source
Delayed Triggerable By Time
Delayed Runs After Main
Pretrigger Record
Posttrigger Record
Waiting for nth Event
(Where n=4)
Delayed Triggerable By Events/Time
Main
Trigger
Source
Delayed
Trigger
Source
Delayed Trigger Waveform Record
Delayed Trigger Waveform Record
Delayed Trigger Waveform Record
Main Trigger Point
Main Trigger Point
Main Trigger Point
Start Posttrigger Acquisition

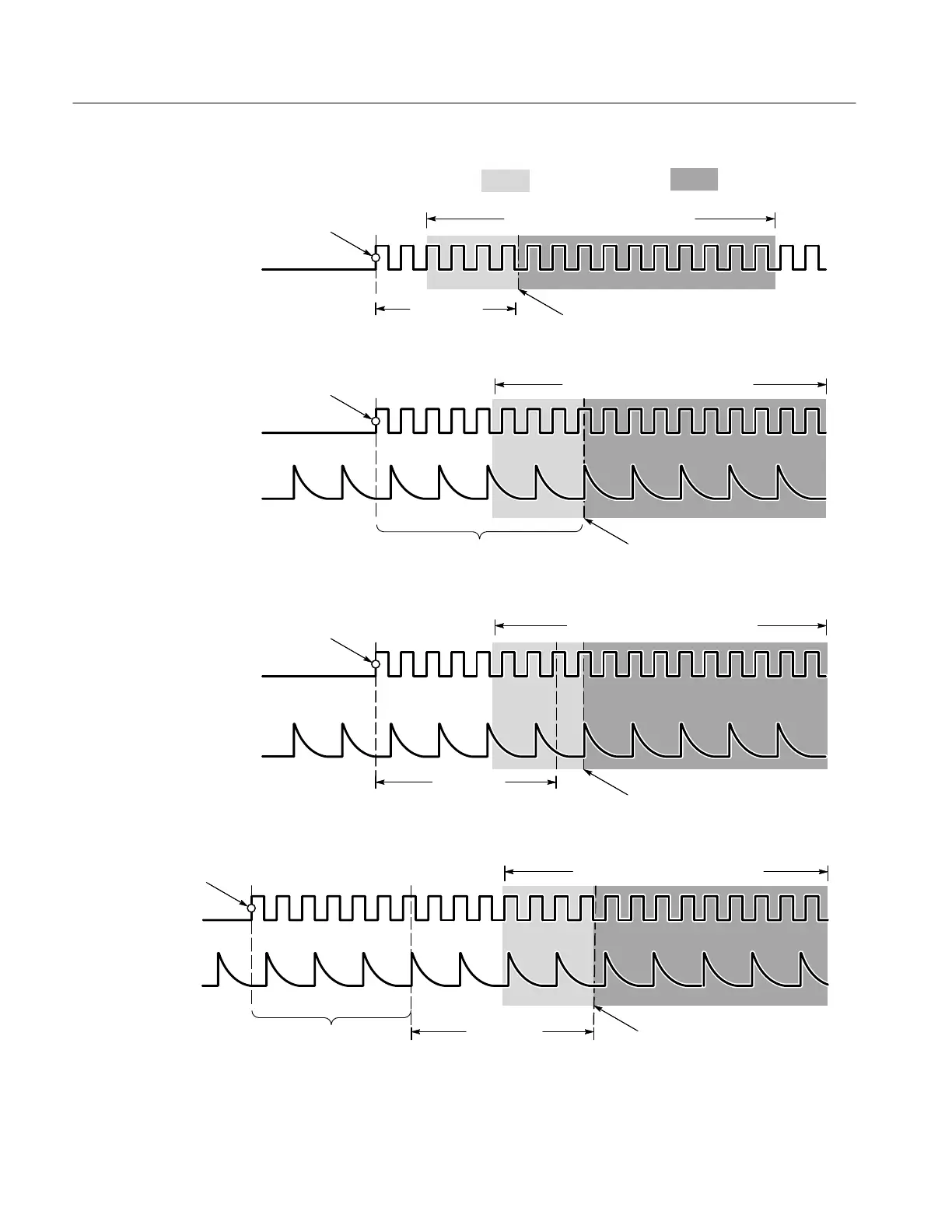

Figure 3–56: How the Delayed Triggers Work
